5.16 Typical Characteristics

Table 5-1 Table of Graphs
FIGURE
VIO Input offset voltage Distribution 4-1 to 4-3
IIB Input bias current vs Common-mode input voltage
vs Free-air temperature		 4-4 to 4-9
II Input current vs Differential input voltage 4-10
VOM Maximum peak output voltage vs Output current
vs Free-air temperature		 4-11 to 4-14
VOH High-level output voltage vs High-level output current
vs Free-air temperature		 4-15 to 4-17
VOL Low-level output voltage vs Low-level output current
vs Free-air temperature		 4-18, 4-19
VO(PP) Maximum peak-to-peak output voltage vs Frequency 4-20, 4-21
AVD Large-signal differential voltage amplification and phase shift vs Frequency 4-22
Large-signal differential voltage amplification vs Free-air temperature 4-23 to 4-25
IOS Short-circuit output current vs Supply voltage
vs Free-air temperature		 4-26 to 4-33
ICC Supply current vs Supply voltage
vs Free-air temperature		 4-34 to 4-39
CMRR Common-mode rejection ratio vs Frequency 4-40 to 4-42
SR Slew rate vs Free-air temperature 4-43 to 4-45
Voltage-follower small-signal pulse response 4-46, 4-47
Voltage-follower large-signal pulse response 4-48 to 4-53
VN(PP) Peak-to-peak equivalent input noise voltage 0.1Hz to 1Hz
0.1Hz to 10Hz		 4-54, 4-55

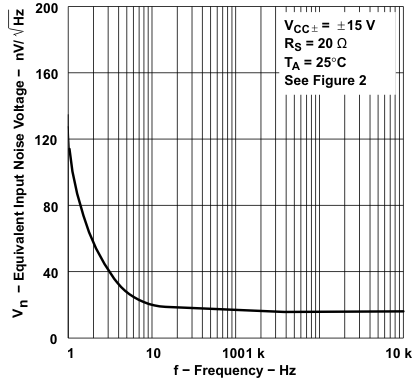

Vn Equivalent input noise voltage vs Frequency 4-56
B1 Unity-gain bandwidth vs Supply voltage
vs Free-air temperature		 4-57 to 4-60
φm Phase margin vs Supply voltage
vs Load capacitance
vs Free-air temperature		 4-61 to 4-66
Phase shift vs Frequency 4-22
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M Distribution of TLE2021xM Input Offset Voltage

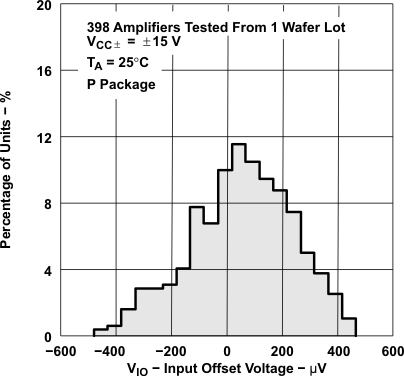

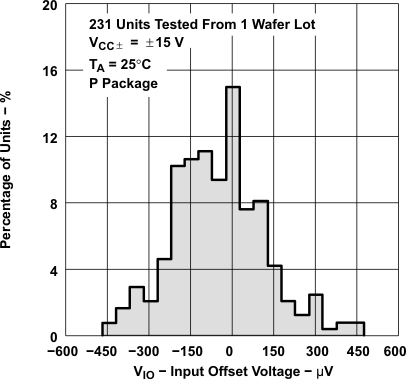

Figure 5-1 Distribution of TLE2021xM Input Offset Voltage
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M Distribution of TLE2024xM Input Offset Voltage

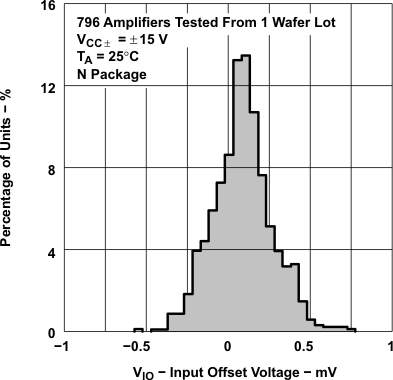

Figure 5-3 Distribution of TLE2024xM Input Offset Voltage
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2022xM Input Bias Current vs Common-Mode Input Voltage

Figure 5-5 TLE2022xM Input Bias Current vs Common-Mode Input Voltage
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2021xM Input Bias Current vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices

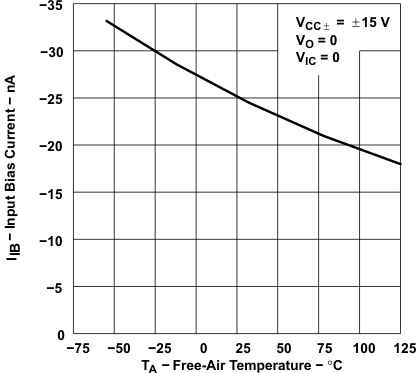

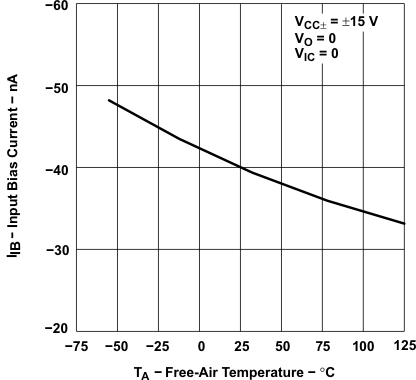

Figure 5-7 TLE2021xM Input Bias Current vs Free-Air Temperature
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2024xM Input Bias Current vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices
Figure 5-9 TLE2024xM Input Bias Current vs Free-Air Temperature
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2021xM Maximum Peak Output Voltage vs Output Current

Figure 5-11 TLE2021xM Maximum Peak Output Voltage vs Output Current
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2024xM Maximum Peak Output Voltage vs Output Current


Figure 5-13 TLE2024xM Maximum Peak Output Voltage vs Output Current
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2021xM High-Level Output Voltage vs High-Level Output Current

Figure 5-15 TLE2021xM High-Level Output Voltage vs High-Level Output Current
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M High-Level Output Voltage vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices
Figure 5-17 High-Level Output Voltage vs Free-Air Temperature
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M Low-Level Output Voltage vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices

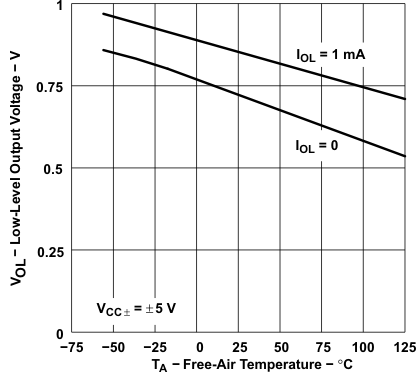

Figure 5-19 Low-Level Output Voltage vs Free-Air Temperature
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M Maximum Peak-to-Peak Output Voltage vs Frequency

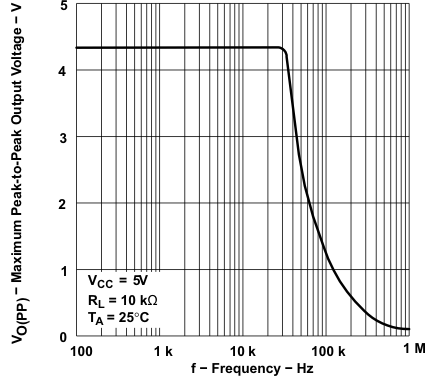

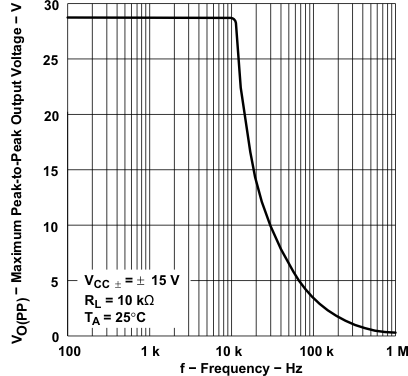

Figure 5-21 Maximum Peak-to-Peak Output Voltage vs Frequency
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2021xM Large-Scale Differential Voltage Amplification vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices
Figure 5-23 TLE2021xM Large-Scale Differential Voltage Amplification vs Free-Air Temperature
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2024xM Large-Scale Differential Voltage Amplification vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices
Figure 5-25 TLE2024xM Large-Scale Differential Voltage Amplification vs Free-Air Temperature
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2022xM and TLE2024xM Short-Circuit Output Current vs Supply Voltage

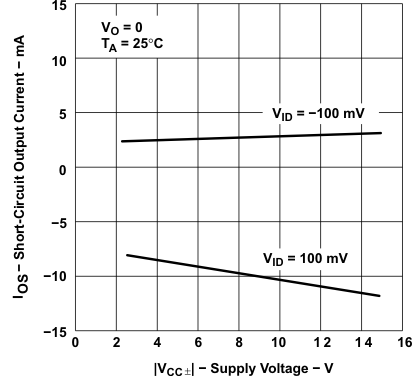

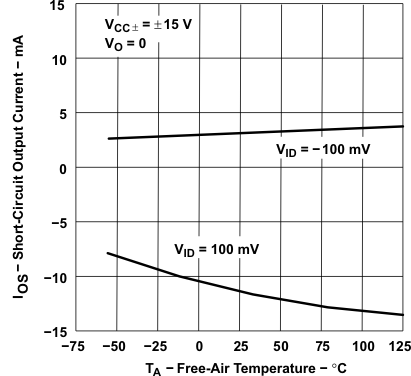

Figure 5-27 TLE2022xM and TLE2024xM Short-Circuit Output Current vs Supply Voltage
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2022xM and TLE2024xM Short-Circuit Output Current vs Supply Voltage

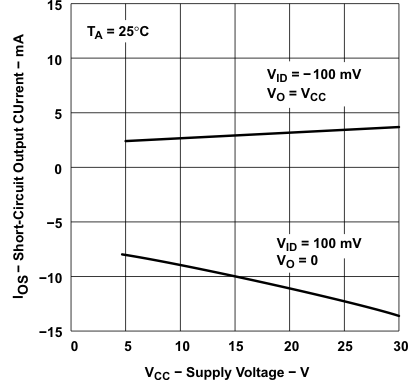

Figure 5-29 TLE2022xM and TLE2024xM Short-Circuit Output Current vs Supply Voltage
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2022xM and TLE2024xM Short-Circuit Output Current vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices
Figure 5-31 TLE2022xM and TLE2024xM Short-Circuit Output Current vs Free-Air Temperature
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2022xM and TLE2024xM Short-Circuit Output Current vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices
Figure 5-33 TLE2022xM and TLE2024xM Short-Circuit Output Current vs Free-Air Temperature
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2022xM Supply Current vs Supply Voltage

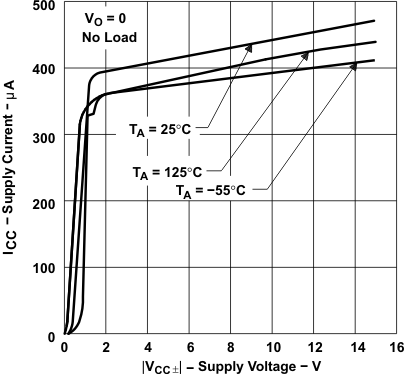

Figure 5-35 TLE2022xM Supply Current vs Supply Voltage
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2021xM Supply Current vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices

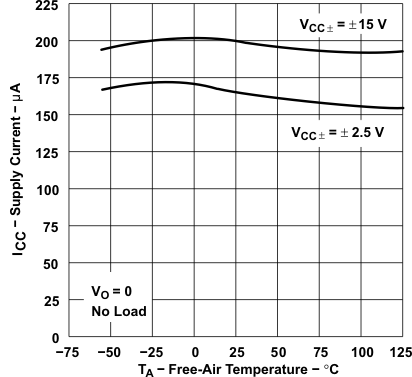

Figure 5-37 TLE2021xM Supply Current vs Free-Air Temperature
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2024xM Supply Current vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices

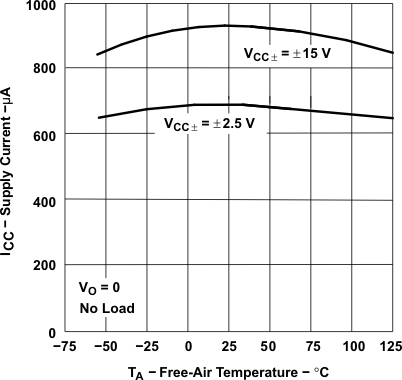

Figure 5-39 TLE2024xM Supply Current vs Free-Air Temperature
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2022xM Common-Mode Rejection Ratio vs Frequency

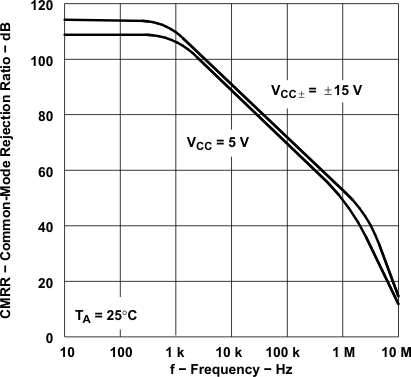

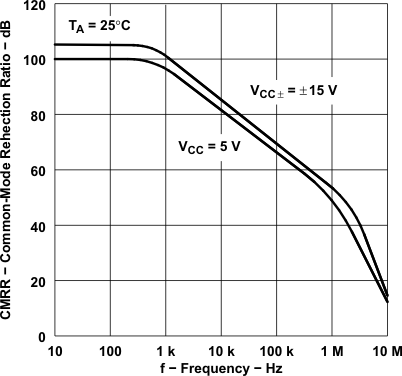

Figure 5-41 TLE2022xM Common-Mode Rejection Ratio vs Frequency
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2021xM Slew Rate vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices

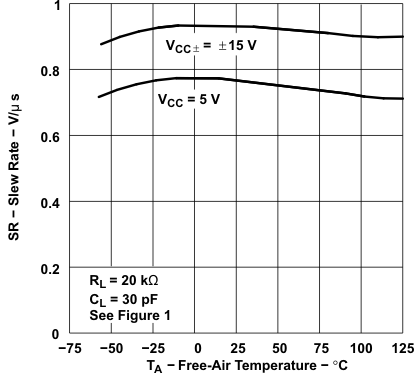

Figure 5-43 TLE2021xM Slew Rate vs Free-Air Temperature
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2024xM Slew Rate vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices
Figure 5-45 TLE2024xM Slew Rate vs Free-Air Temperature
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M Voltage-Follower Small-Signal Pulse Response

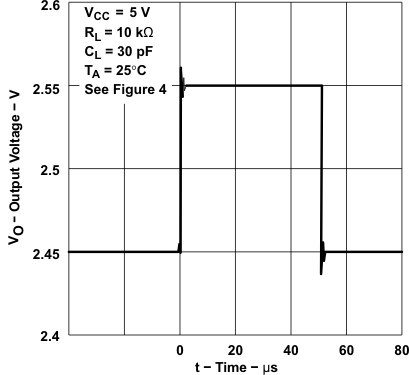

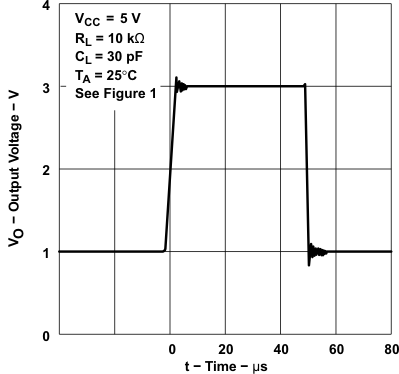

Figure 5-47 Voltage-Follower Small-Signal Pulse Response
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2022xM Voltage-Follower Large-Signal Pulse Response

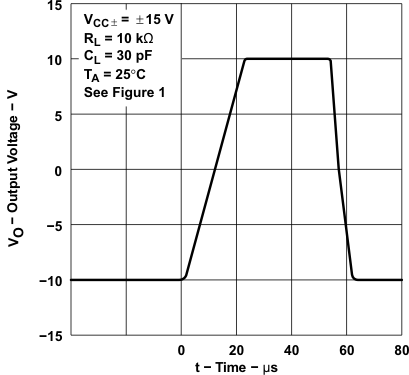

Figure 5-49 TLE2022xM Voltage-Follower Large-Signal Pulse Response
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2021xM Voltage-Follower Large-Signal Pulse Response

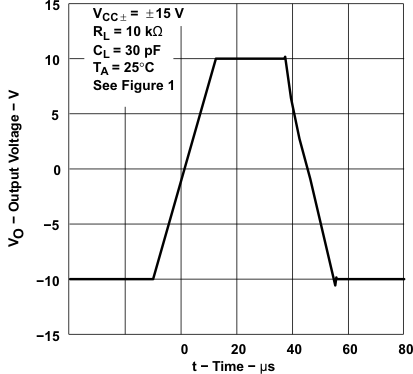

Figure 5-51 TLE2021xM Voltage-Follower Large-Signal Pulse Response
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2024xM Voltage-Follower Large-Signal Pulse Response

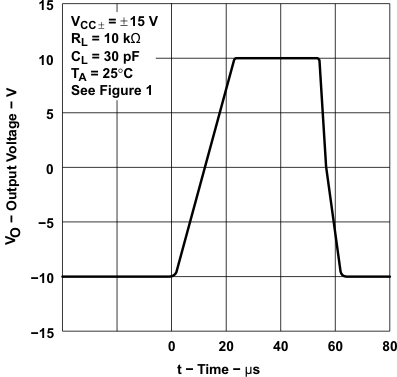

Figure 5-53 TLE2024xM Voltage-Follower Large-Signal Pulse Response
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M Peak-to-Peak Equivalent Input Noise Voltage 0.1Hz to 10Hz

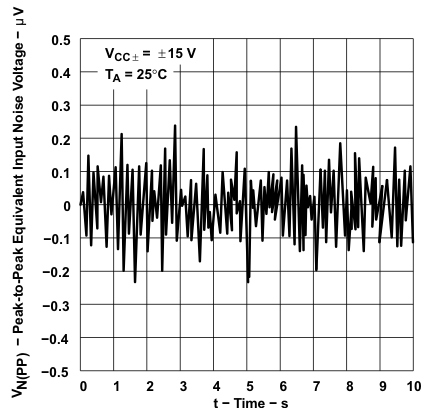

Figure 5-55 Peak-to-Peak Equivalent Input Noise Voltage 0.1Hz to 10Hz
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2021xM Unity-Gain Bandwidth vs Supply Voltage

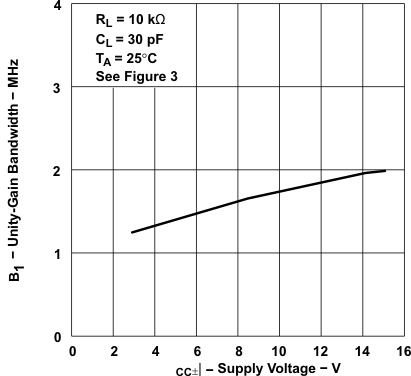

Figure 5-57 TLE2021xM Unity-Gain Bandwidth vs Supply Voltage
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2021xM Unity-Gain Bandwidth vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices
Figure 5-59 TLE2021xM Unity-Gain Bandwidth vs Free-Air Temperature
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2021xM Phase Margin vs Supply Voltage

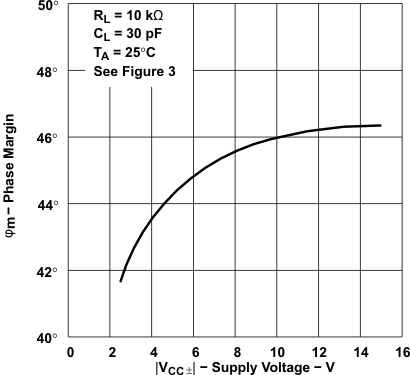

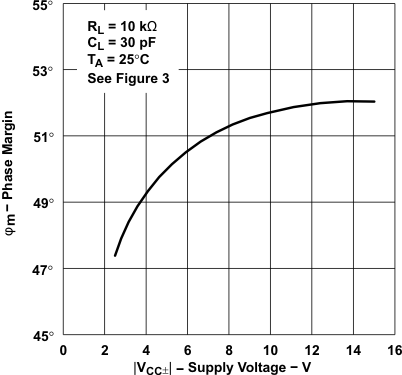

Figure 5-61 TLE2021xM Phase Margin vs Supply Voltage
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2021xM Phase Margin vs Load Capacitance

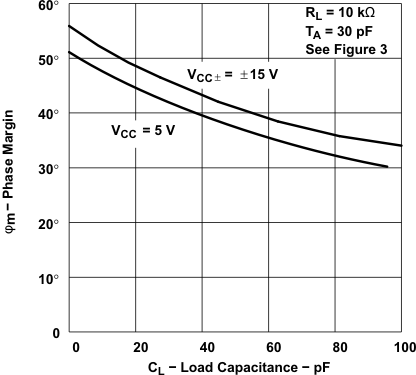

Figure 5-63 TLE2021xM Phase Margin vs Load Capacitance
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2021xM Phase Margin vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices

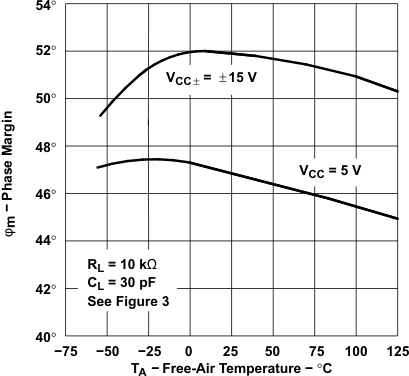

Figure 5-65 TLE2021xM Phase Margin vs Free-Air Temperature
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M Distribution of TLE2022xM Input Offset Voltage

Figure 5-2 Distribution of TLE2022xM Input Offset Voltage
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2021xM Input Bias Current vs Common-Mode Input Voltage

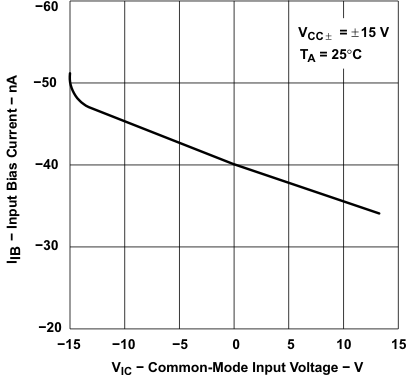

Figure 5-4 TLE2021xM Input Bias Current vs Common-Mode Input Voltage
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2024xM Input Bias Current vs Common-Mode Input Voltage

Figure 5-6 TLE2024xM Input Bias Current vs Common-Mode Input Voltage
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2022xM Input Bias Current vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices

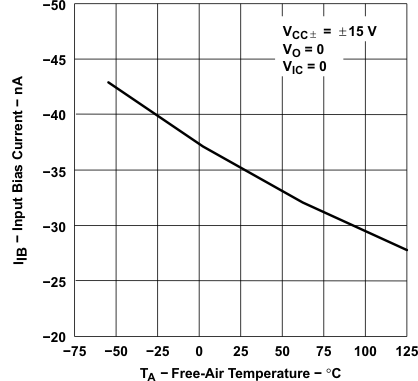

Figure 5-8 TLE2022xM Input Bias Current vs Free-Air Temperature
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M Input Current vs Differential Input Voltage


Figure 5-10 Input Current vs Differential Input Voltage
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2022xM Maximum Peak Output Voltage vs Output Current

Figure 5-12 TLE2022xM Maximum Peak Output Voltage vs Output Current
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M Maximum Peak Output Voltage vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices

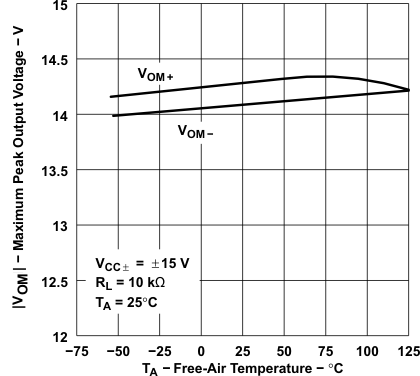

Figure 5-14 Maximum Peak Output Voltage vs Free-Air Temperature
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2022xM and TLE2024xM High-Level Output Voltage vs High-Level Output Current

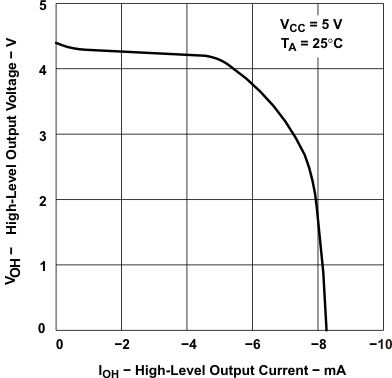

Figure 5-16 TLE2022xM and TLE2024xM High-Level Output Voltage vs High-Level Output Current
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M Low-Level Output Voltage vs Low-Level Output Current

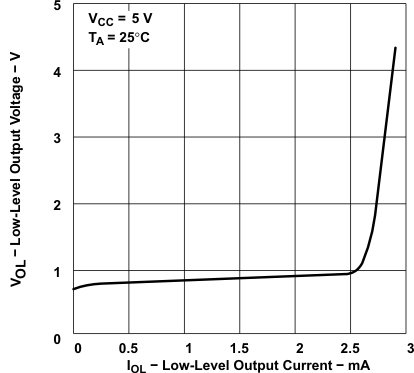

Figure 5-18 Low-Level Output Voltage vs Low-Level Output Current
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M Maximum Peak-to-Peak Output Voltage Vs Frequency


Figure 5-20 Maximum Peak-to-Peak Output Voltage Vs Frequency
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M Large-Signal Differential Voltage Amplification and Phase Shift vs Frequency

Figure 5-22 Large-Signal Differential Voltage Amplification and Phase Shift vs Frequency
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2022xM Large-Signal Differential Voltage Amplification vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices
Figure 5-24 TLE2022xM Large-Signal Differential Voltage Amplification vs Free-Air Temperature
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2021xM Short-Circuit Output Current vs Supply Voltage

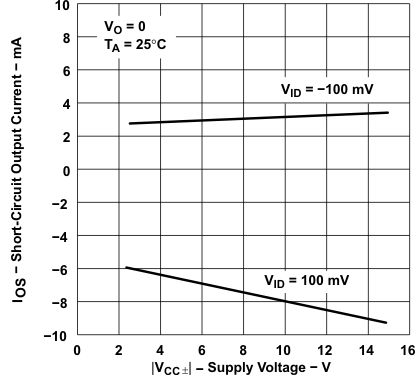

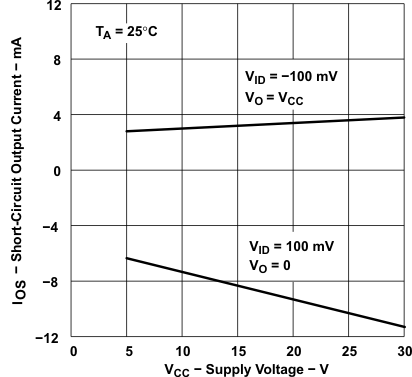

Figure 5-26 TLE2021xM Short-Circuit Output Current vs Supply Voltage
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2021xM Short-Circuit Output Current vs Supply Voltage

Figure 5-28 TLE2021xM Short-Circuit Output Current vs Supply Voltage
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2021xM Short-Circuit Output Current vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices
Figure 5-30 TLE2021xM Short-Circuit Output Current vs Free-Air Temperature
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2021xM Short-Circuit Output Current vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices
Figure 5-32 TLE2021xM Short-Circuit Output Current vs Free-Air Temperature
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2021xM Supply Current vs Supply Voltage


Figure 5-34 TLE2021xM Supply Current vs Supply Voltage

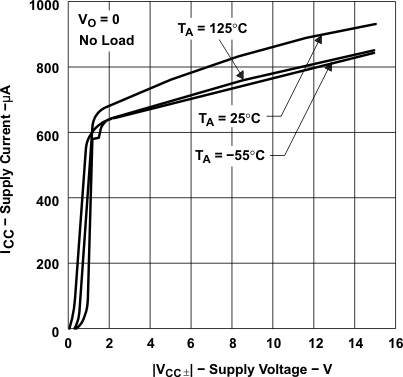

TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2024xM Supply Current vs Supply Voltage

Figure 5-36 TLE2024xM Supply Current vs Supply Voltage
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2022xM Supply Current vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices
Figure 5-38 TLE2022xM Supply Current vs Free-Air Temperature
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2021xM Common-Mode Rejection Ratio vs Frequency


Figure 5-40 TLE2021xM Common-Mode Rejection Ratio vs Frequency

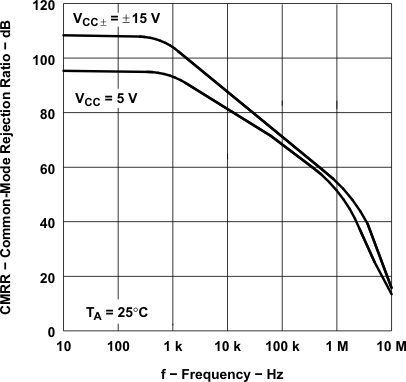

TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2024xM Common-Mode Rejection Ratio vs Frequency

Figure 5-42 TLE2024xM Common-Mode Rejection Ratio vs Frequency
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2022xM Slew Rate vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices
Figure 5-44 TLE2022xM Slew Rate vs Free-Air Temperature
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M Voltage-Follower Small-Signal Pulse Response


Figure 5-46 Voltage-Follower Small-Signal Pulse Response
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2021xM Voltage-Follower Large-Signal Pulse Response

Figure 5-48 TLE2021xM Voltage-Follower Large-Signal Pulse Response
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2024xM Voltage-Follower Large-Scale Pulse Response

Figure 5-50 TLE2024xM Voltage-Follower Large-Scale Pulse Response
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2022xM Voltage-Follower Large-Signal Pulse Response

Figure 5-52 TLE2022xM Voltage-Follower Large-Signal Pulse Response
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M Peak-to-Peak Equivalent Input Noise Voltage 0.1Hz to 1Hz

Figure 5-54 Peak-to-Peak Equivalent Input Noise Voltage 0.1Hz to 1Hz
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M Equivalent Input Noise Voltage vs Frequency

Figure 5-56 Equivalent Input Noise Voltage vs Frequency
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2022xM and TLE2024xM Unity-Gain Bandwidth vs Supply Voltage

Figure 5-58 TLE2022xM and TLE2024xM Unity-Gain Bandwidth vs Supply Voltage

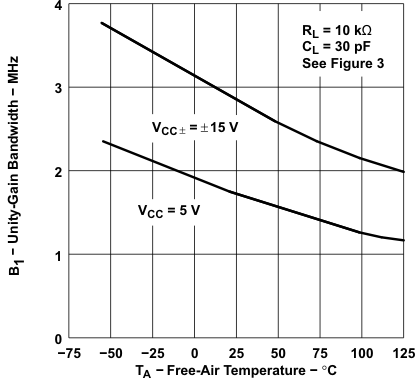

TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2022xM and TLE2024xM Unity-Gain Bandwidth vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices
Figure 5-60 TLE2022xM and TLE2024xM Unity-Gain Bandwidth vs Free-Air Temperature
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2022xM and TLE2024xM Phase Margin vs Supply Voltage

Figure 5-62 TLE2022xM and TLE2024xM Phase Margin vs Supply Voltage
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2022xM and TLE2024xM Phase Margin vs Load Capacitance

Figure 5-64 TLE2022xM and TLE2024xM Phase Margin vs Load Capacitance
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M TLE2022xM and TLE2024xM Phase Margin vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices
Figure 5-66 TLE2022xM and TLE2024xM Phase Margin vs Free-Air Temperature
