6.5 Propagation Delay

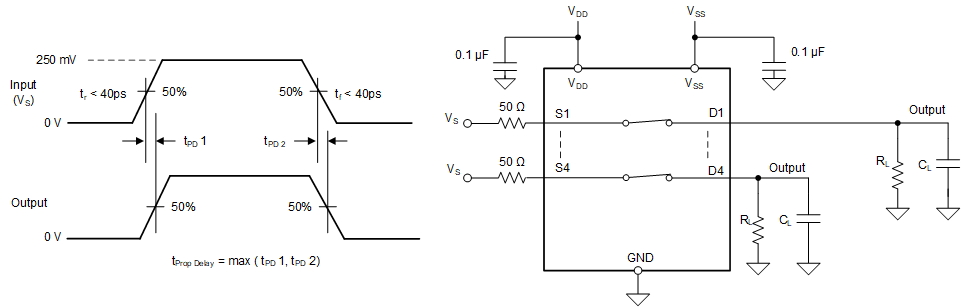

Propagation delay is defined as the time taken by the output of the device to rise or fall 50% after the input signal has risen or fallen past the 50% threshold. Figure 6-5 shows the setup used to measure propagation delay, denoted by the symbol tPD.

TMUX5411 TMUX5412 TMUX5413 Propagation Delay Measurement SetupFigure 6-5 Propagation Delay Measurement Setup
