6 Parameter Measurement Information

Phase relationships between waveforms were chosen arbitrarily. All input pulses are supplied by generators having the following characteristics: PRR ≤ 1MHz, ZO = 50Ω, tt < 2.5ns.

For clock inputs, fmax is measured when the input duty cycle is 50%.

The outputs are measured one at a time with one input transition per measurement.

TPLD1201 Load Circuit for 3-State Outputs
(1) CL includes probe and test-fixture capacitance.
Figure 6-1 Load Circuit for 3-State Outputs
TPLD1201 Load Circuit for Push-Pull Outputs
(1) CL includes probe and test-fixture capacitance.
Figure 6-3 Load Circuit for Push-Pull Outputs
TPLD1201 Voltage Waveforms, Setup and Hold TimesFigure 6-5 Voltage Waveforms, Setup and Hold Times
TPLD1201 Voltage Waveforms Propagation DelaysFigure 6-7 Voltage Waveforms Propagation Delays
TPLD1201 Voltage Waveforms, Input and Output Transition Times
(1) The greater between tr and tf is the same as tt.
Figure 6-9 Voltage Waveforms, Input and Output Transition Times
TPLD1201 Load Circuit for Open-Drain Outputs
(1) CL includes probe and test-fixture capacitance.
Figure 6-2 Load Circuit for Open-Drain Outputs
TPLD1201 Voltage Waveforms, Pulse DurationFigure 6-4 Voltage Waveforms, Pulse Duration
TPLD1201 Voltage Waveforms Propagation Delays
(1) The greater between tPLH and tPHL is the same as tpd.
Figure 6-6 Voltage Waveforms Propagation Delays

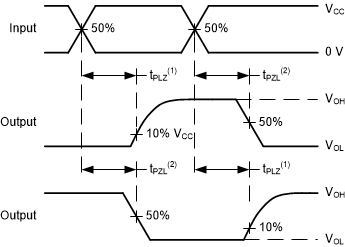

TPLD1201 Voltage Waveforms Propagation Delays
(1) The greater between tPLZ and tPZL is the same as tpd.
Figure 6-8 Voltage Waveforms Propagation Delays
