6.10 Typical Characteristics

DAC5672A SLAS440_G001.gifFigure 1. Integral Nonlinearity vs Input Code
DAC5672A SLAS440_G003.gifFigure 3. Spurious-Free Dynamic Range vs Output Frequency

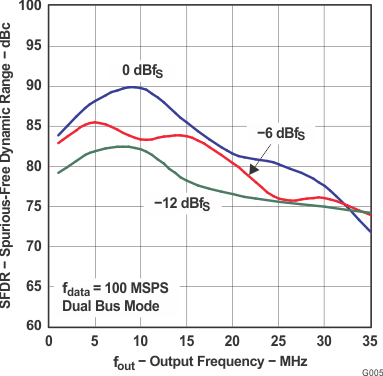

DAC5672A SLAS440_G005.gifFigure 5. Spurious-Free Dynamic Range vs Output Frequency
DAC5672A SLAS440_G007.gifFigure 7. Single-Tone Spectrum
DAC5672A SLAS440_G009.gifFigure 9. Two-Tone IMD3 vs Output Frequency
DAC5672A SLAS440_G011.gifFigure 11. Two-Tone Spectrum

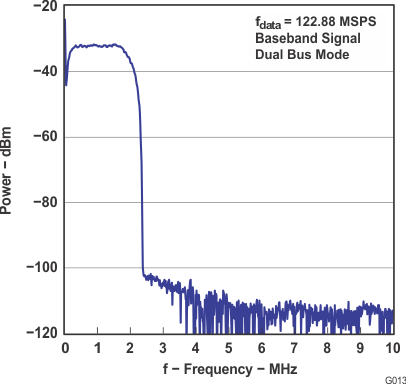

DAC5672A SLAS440_G013.gifFigure 13. Power vs Frequency
DAC5672A slas440_g015.gifFigure 15. Power vs Frequency
DAC5672A SLAS440_G002.gifFigure 2. Differential Nonlinearity vs Input Code

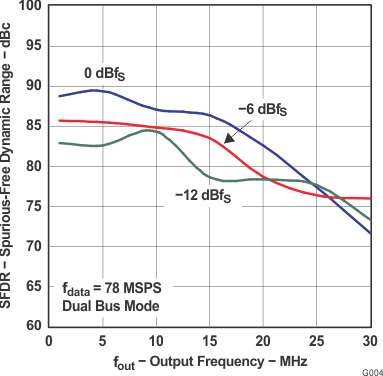

DAC5672A SLAS440_G004.gifFigure 4. Spurious-Free Dynamic Range vs Output Frequency

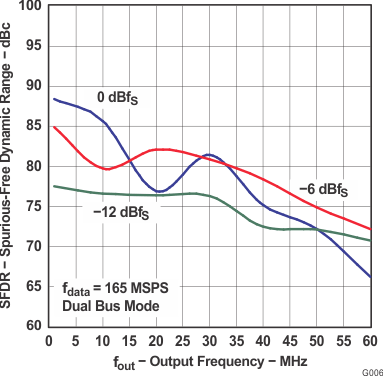

DAC5672A SLAS440_G006.gifFigure 6. Spurious-Free Dynamic Range vs Output Frequency
DAC5672A SLAS440_G008.gifFigure 8. Single-Toned Spectrum
DAC5672A SLAS440_G010.gifFigure 10. Two-Tone IMD3 vs Output Frequency

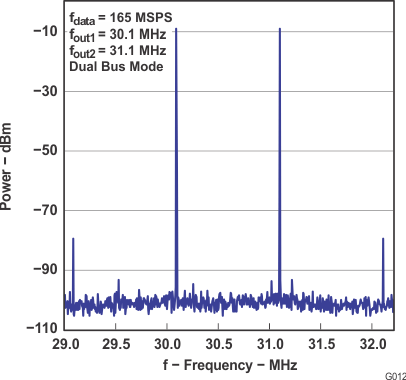

DAC5672A SLAS440_G012.gifFigure 12. Two-Tone Spectrum

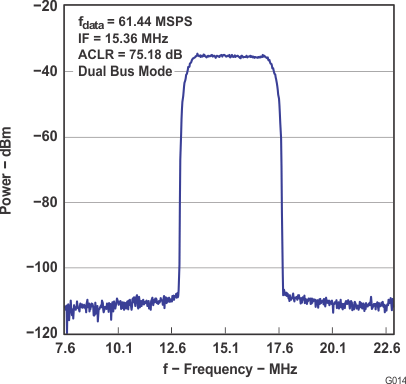

DAC5672A SLAS440_G014.gifFigure 14. Power vs Frequency
DAC5672A slas440_g016.gifFigure 16. Power vs Frequency
