Histogram Display

The conversion results can also be shown as a histogram through the histogram tab within the Analog IP page. Figure 3-15 shows the histogram data analysis display.

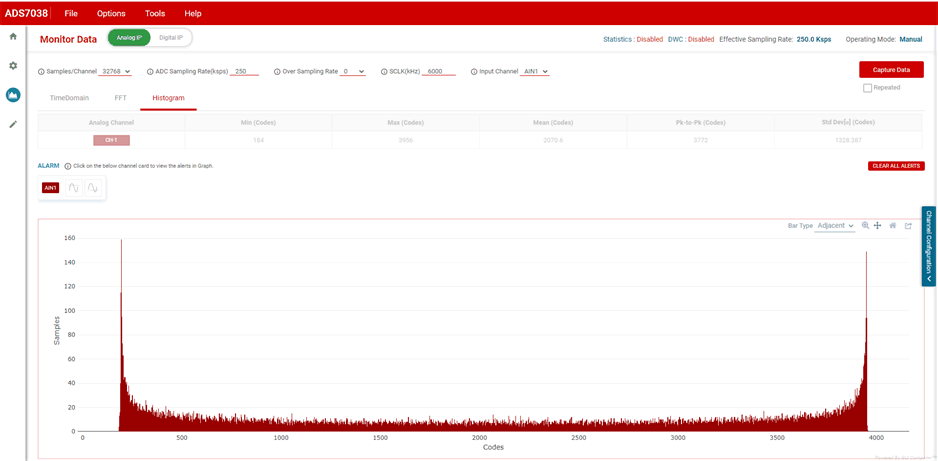

GUID-20201006-CA0I-S0Q1-NXS5-DVLFM5KSCGCQ-low.gifFigure 3-15 Histogram tab.
