Schematics

Figure 6-9, Figure 6-2, Figure 6-11, and Figure 6-4 show the EVM schematics.

The TPSM8287A06BASEVM uses the TPSM8287A06BASRDVR IC.

The TPSM8287A12BBSEVM uses the TPSM8287A12BBSRDVR IC.

The TPSM8287A10BAHEVM uses the TPSM8287A10BAHRDWR IC.

The TPSM8287A15BBHEVM uses the TPSM8287A15BBHRDWR IC.

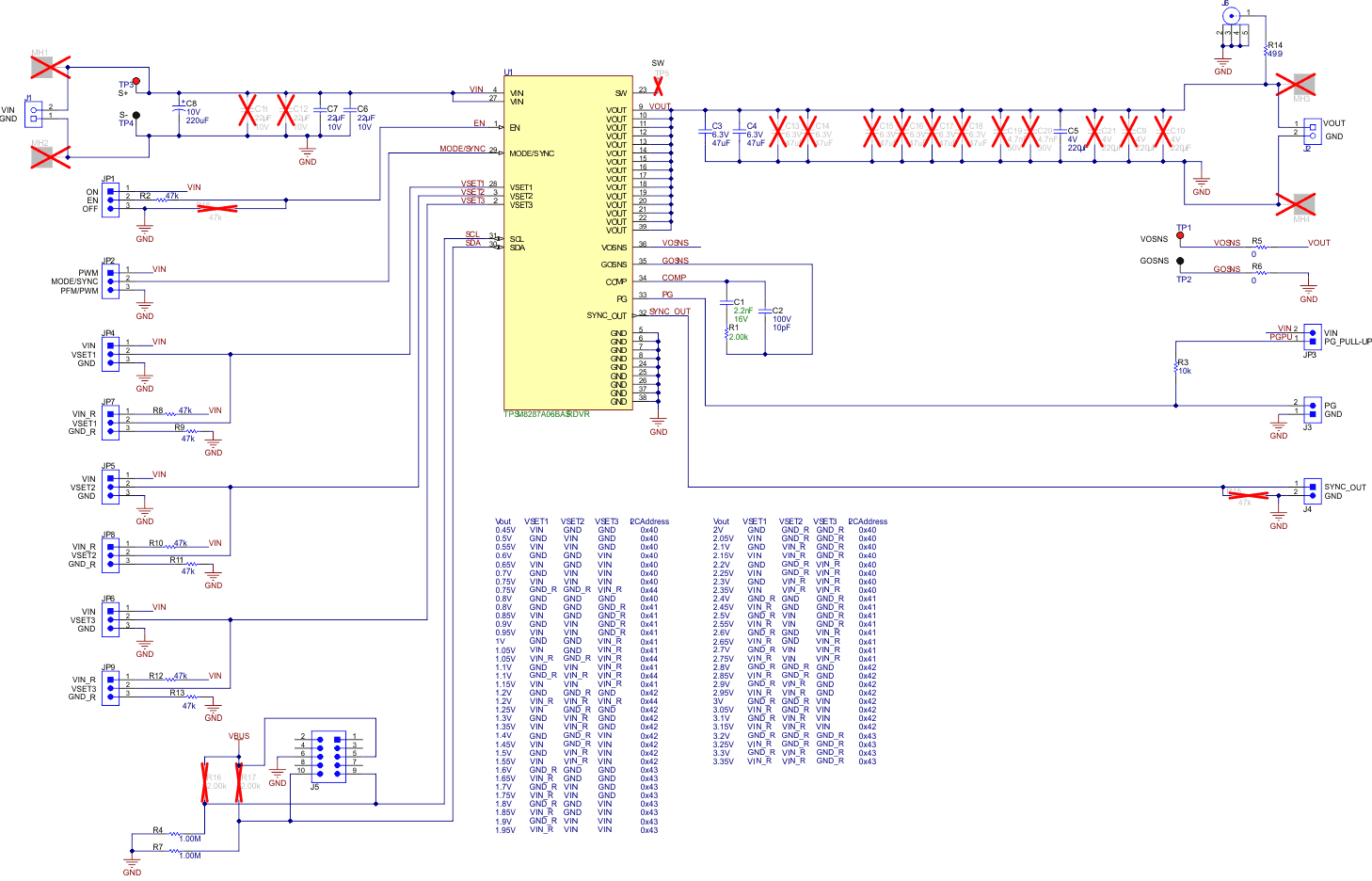

GUID-20231027-SS0I-CRZJ-CBJF-SJZ702KDQJ74-low.gifFigure 5-1 TPSM8287A06BASEVM Schematic
GUID-20230628-SS0I-CGF8-GF3D-SFVSBGTVGPDP-low.svgFigure 5-2 TPSM8287A12BBSEVM Schematic
GUID-20240214-SS0I-BDCH-GNNP-WXNNVBSKKWTD-low.svg Figure 5-3 TPSM8287A10BAHEVM Schematic
GUID-20240214-SS0I-HLGW-CRPC-LQQ7VTZK6FMF-low.svg Figure 5-4 TPSM8287A15BBHEVM Schematic
