Read Motor Speed from Graph Window

When motor spinning, motor angle keeps changing. The best way to read it is via graph window. The procedure is similar to Section 2.4.3. The pointer is assigned as the following line 1.

  1. gLog_ptr[14] = &gDemoRPM;

Motor angle at forward rotation is shown in Figure 2-45, and backward rotation is shown in Figure 2-46. The angle is created from software resolver. Sine envelope is recorded for a transition from forward to backward in .

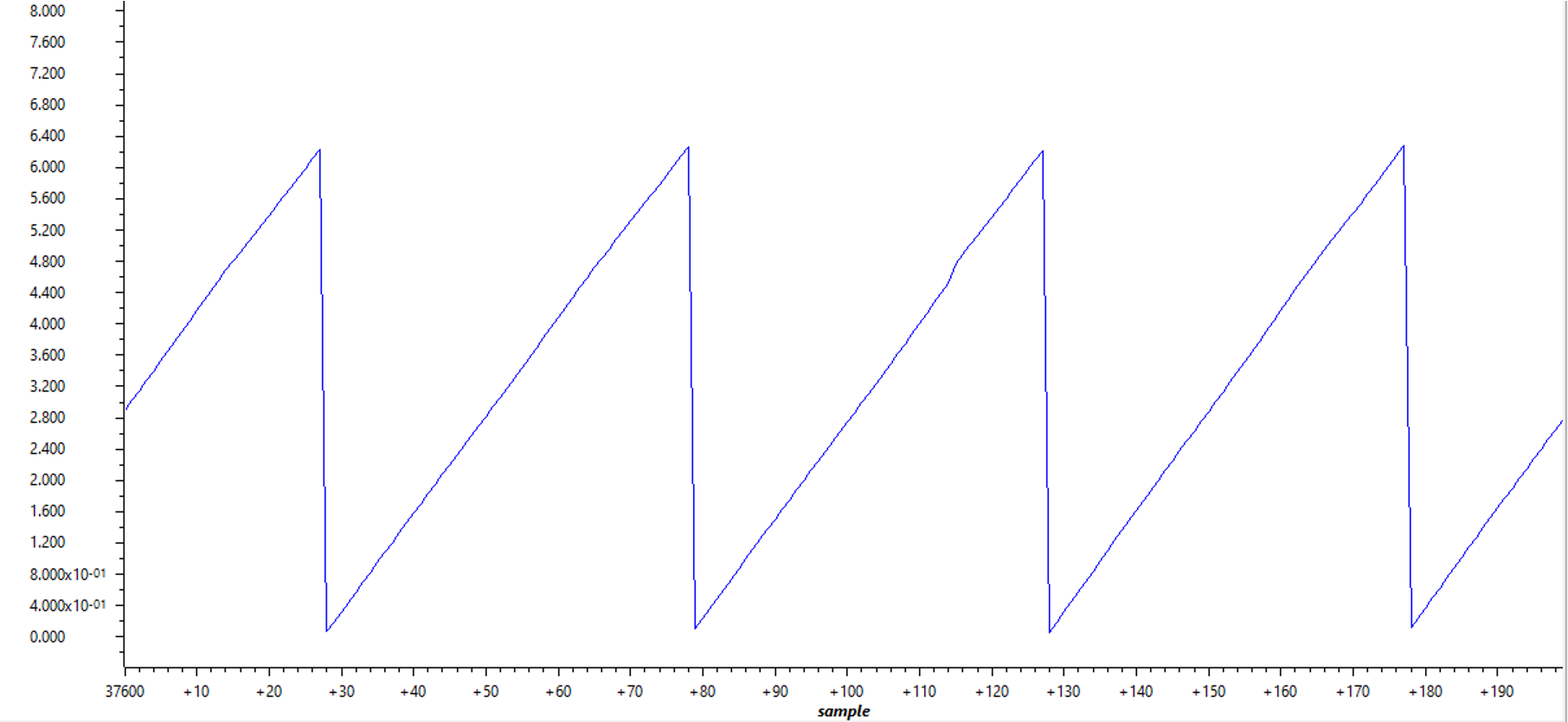

GUID-20220304-SS0I-ZXZP-LJJN-HZZNW50N2MVK-low.png Figure 2-45 Motor Forward Rotation
GUID-20220304-SS0I-QQNZ-SKD6-Q1FQZSKW4TKX-low.png Figure 2-46 Motor Backward Rotation

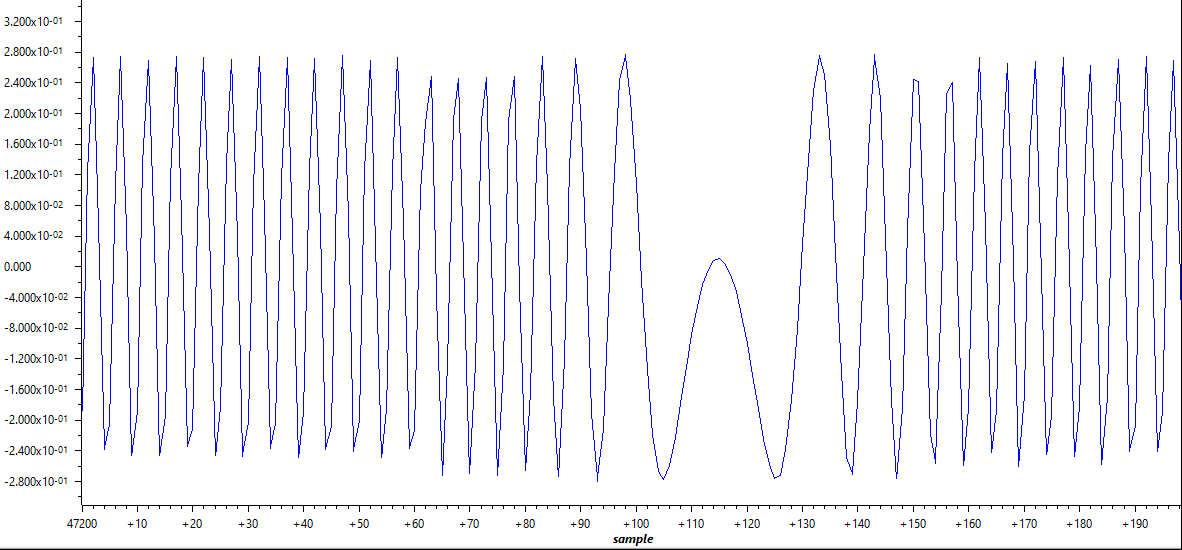

GUID-20220308-SS0I-9GZD-441S-P1PR4N0NPWXD-low.png Figure 2-47 Resolver Sine Envelope for a Transition from Forward to Backward
