5.7 Digital I/O: Timing Characteristics

PARAMETERTEST CONDITIONSMINNOMMAXUNIT
I2C TIMING — 100kHz
fSCLClock Operating FrequencySCL duty cycle = 50%100kHz
tHD:STASTART Condition Hold Time4.0µs
tLOWLow period of the SCL Clock4.7µs
tHIGHHigh period of the SCL Clock4.0µs
tSU:STASetup repeated START4.7µs
tHD:DATData hold time (SDA input)0ns
tSU:DATData setup time (SDA input)250ns
trClock Rise Time10% to 90%1000ns
tfClock Fall Time90% to 10%300ns
tSU:STOSetup time STOP Condition4.0µs
tBUFBus free time STOP to START4.7µs
I2C TIMING — 400kHz
fSCLClock Operating FrequencySCL duty cycle = 50%400kHz
tHD:STASTART Condition Hold Time0.6µs
tLOWLow period of the SCL Clock1.3µs
tHIGHHigh period of the SCL Clock600ns
tSU:STASetup repeated START600ns
tHD:DATData hold time (SDA input)0ns
tSU:DATData setup time (SDA input)100ns
trClock Rise Time10% to 90%300ns
tfClock Fall Time90% to 10%300ns
tSU:STOSetup time STOP Condition0.6µs
tBUFBus free time STOP to START1.3µs
HDQ Timing
tBBreak Time190µs
tBRBreak Recovery Time40µs
tHW1Host Write 1 TimeHost drives HDQ0.550µs
tHW0Host Write 0 TimeHost drives HDQ86145µs
tCYCHCycle Time, Host to devicedevice drives HDQ190µs
tCYCDCycle Time, device to Hostdevice drives HDQ190205250µs
tDW1Device Write 1 Timedevice drives HDQ3250µs
tDW0Device Write 0 Timedevice drives HDQ80145µs
tRSPSDevice Response Timedevice drives HDQ190950µs
tTRNDHost Turn Around TimeHost drives HDQ after device drives HDQ250µs
tRISEHDQ Line Rising Time to Logic 11.8µs
tRSTHDQ ResetHost drives HDQ low before device reset2.2s

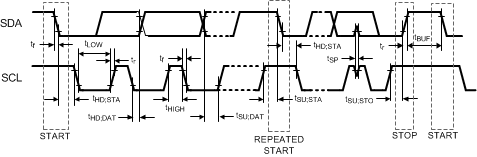

BQ27Z758 I2C TimingFigure 5-1 I2C Timing

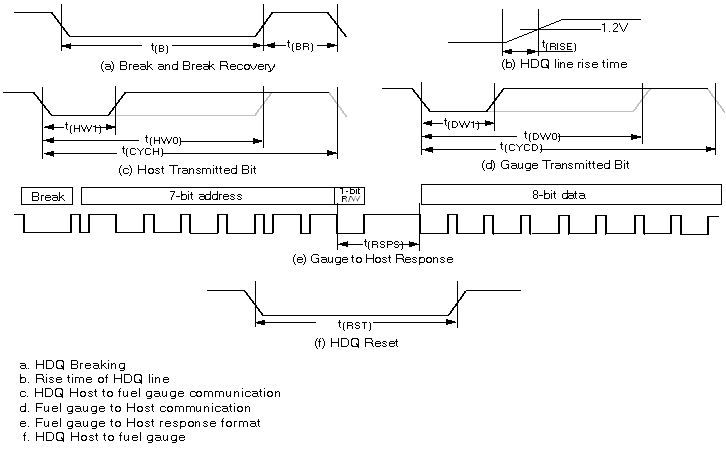

BQ27Z758 HDQ TimingFigure 5-2 HDQ Timing
