Typical Application

Figure 10-7 shows the schematic of the engine area for the CC3235x device in the wide-voltage mode of operation, with the corresponding bill of materials show in Table 10-1. Figure 10-8 provides the schematic for the RF implementation with and without BLE/2.4 GHz coexistence, with the corresponding bill of materials shown in Table 10-2. For a full operation reference design, see the CC3235x SimpleLink™ and Internet of Things Hardware Design Files.

GUID-D5F43CE3-D338-4FDE-98EC-D4264FE5FA60-low.gif Figure 10-7 CC3235x Engine Area
Table 10-1 Bill of Materials for CC3235x Engine Area
Quantity Designator Value Manufacturer Part Number Description
2 C1, C2 100 µF Taiyo Yuden LMK325ABJ107MMHT CAP, CERM, 100 µF, 10 V,
+/- 20%, X5R, AEC-Q200 Grade 3, 1210
3 C3, C4, C6 4.7 µF Taiyo Yuden JMK105BC6475MV-F CAP, CERM, 4.7 uF, 6.3 V,
+/- 20%, X6S, 0402
3 C5, C16, C29 0.6 pF MuRata GJM0335C1ER60BB01D CAP, CERM, 0.6pF, 25 V,
+/- 16%, C0G/NP0, 0201
1 C7 0.5 pF Murata GJM0335C1ER50BB01D CAP, CERM, 0.5 pF, 25 V,
+/- 20%, C0G/NP0, 0201
7 C8, C9, C11, C13, C21, C22, C24 0.1 µF Walsin CL05B104KO5NNNC CAP, CERM, 0.1 µF, 16 V,
+/- 10%, X7R, 0402
1 C10 0.01 µF Walsin 0402B103K500CT CAP, CERM, 0.01 µF, 50 V,
+/- 10%, X7R, 0402
3 C12, C20, C23 10 µF Taiyo Yuden LMK107BC6106MA-T CAP, CERM, 10 uF, 10 V,
+/- 20%, X6S, 0603
1 C14 0.2 pF MuRata GJM0335C1ER20BB01D CAP, CERM, 0.2pF, 25 V,
+/- 50%, C0G/NP0, 0201
2 C15, C25 0.1 µF Samsung Electro-Mechanics CL03A104KP3NNNC CAP, CERM, 0.1 uF, 10 V,
+/- 10%, X5R, 0201
2 C17, C18 22 µF MuRata GRM188C80G226ME15J CAP, CERM, 22 uF, 4 V,
+/- 20%, X6S, 0603
1 C19 1 µF Walsin CL05A105MP5NNNC CAP, CERM, 1 µF, 10 V,
+/- 20%, X5R, 0402
2 C26, C27 10 pF Walsin 0402N100J500CT CAP, CERM, 10 pF, 50 V,
+/- 5%, C0G/NP0, 0402
2 C28, C30 6.2 pF Walsin 0402N6R2C500CT CAP, CERM, 6.2 pF, 50 V,
+/- 4%, C0G/NP0, 0402
3 J1, J2, J3 Wurth Elektronik 61300311121 Header, 2.54 mm, 3x1, Gold, TH
2 L1, L3 2.2 µH MuRata LQM2MPN2R2NG0 Inductor, Multilayer, Ferrite,
2.2 uH, 1.2 A, 0.11 ohm, SMD
1 L2 1 µH MuRata LQM2HPN1R0MG0L Inductor, Multilayer, Ferrite,
1 uH, 1.6 A, 0.055 ohm, SMD
1 L4(1) 10 µH TDK MLP2520S100MT0S1 Inductor, Multilayer, Ferrite,
10 uH, 0.7 A, 0.364 ohm, SMD
5 R1, R2, R3, R4, R9 100k Vishay-Dale CRCW0402100KJNED RES, 100 k, 5%, 0.063 W,
AEC-Q200 Grade 0, 0402
1 R5(2) 0 Panasonic ERJ-2GE0R00X RES, 0, 5%, 0.063 W, 0402
1 R6 270 Vishay-Dale CRCW0402270RJNED RES, 270, 5%, 0.063 W,
AEC-Q200 Grade 0, 0402
4 R7, R8, R10, R11 69.8k Vishay-Dale CRCW040269K8FKED RES, 69.8 k, 1%, 0.063 W,
AEC-Q200 Grade 0, 0402
1 U1 Macronix International Co., LTD MX25R3235FM1IL0 Ultra low power, 32M-bit
[x 1/x 2/x 4] CMOS MXSMIO(serial multi I/O) Flash memory, SOP-8
1 U2 Texas Instruments CC3235SF12RGKR SimpleLink Wi-Fi and Internet-of-Things Solution, a Single-Chip Wireless MCU, RGK0064B (VQFN-64)
1 Y1 Abracon Corporation ABS07-32.768KHZ-9-T Crystal, 32.768KHz, 9PF, SMD
1 Y2 TXC Corporation 8Y40072002 Crystal, 40 MHz, 8 pF, SMD
For the CC3235SF device, L4 is populated. For the CC3235S device, L4 is not populated.
For the CC3220SF device, R5 is not populated. For the CC3235S device if R5 is populated, Pin 45 can be used as GPIO_31.

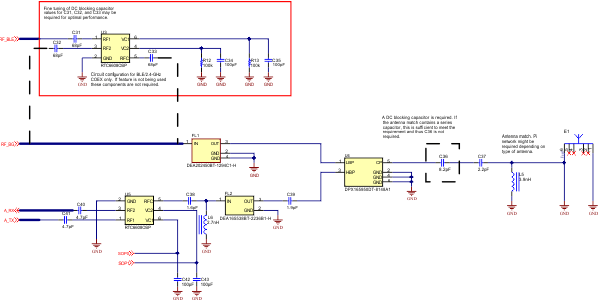

GUID-A8C6CE77-2A26-4821-948E-46B94F2DC2E5-low.gif Figure 10-8 CC3235x RF Schematic Implementation with and without Coexistence



Note:

The Following guidelines are recommended for implementation of the RF design:

  • Ensure an RF path is designed with an impedance of 50 Ω
  • Tuning of the antenna impedance π matching network is recommended after manufacturing of the PCB to account for PCB parasitics
  • π or L matching and tuning may be required between cascaded passive components on the RF path
Table 10-2 Bill of Materials For CC3235x RF Section
Quantity Designator Value Manufacturer Part Number Description
3 C31(1), C32(1), C33(1) 68 pF Murata GRM0335C1H680JA1D CAP, CERM, 68 pF, 50 V,
+/- 5%, C0G/NP0, 0201
4 C34(1), C35(1), C42, C43 100 pF Yageo CC0201JRNPO8BN101 CAP, CERM, 100 pF, 25 V,
+/- 5%, C0G/NP0, 0201
1 C36 8.2 pF Walsin 0402N8R2C500CT CAP, CERM, 8.2 pF, 50 V,
+/- 3%, C0G/NP0, 0402
1 C37 2.2 pF MuRata GJM1555C1H2R2BB01D CAP, CERM, 2.2 pF, 50 V,
+/- 4.5%, C0G/NP0, 0402
1 C38 1.6 pF MuRata GRM0335C1H1R6BA01D CAP, CERM, 1.6 pF, 50 V,
+/- 7%, C0G/NP0, 0201
1 C39 1.9 pF MuRata GJM1555C1H1R9WB01D CAP, CERM, 1.9 pF, 50 V,
+/- 2.6%, C0G/NP0, 0402
2 C40, C41 4.7 pF MuRata GRM0335C1H4R7BA01D CAP, CERM, 4.7 pF, 50 V,
+/- 3%, C0G/NP0, 0201
1 E1 Ethertronics M830520 WLAN Antenna 802.11, SMD
1 FL1 TDK DEA202450BT-1294C1-H Multilayer Chip Band Pass Filter For 2.4 GHz W-LAN/Bluetooth, SMD
1 FL2 TDK DEA165538BT-2236B1-H Multilayer Band Pass Filter For
5 GHz W-LAN/LTE-U
1 L5 3.9 nH MuRata LQG15HS3N9S02D Inductor, Multilayer, Air Core,
3.9 nH, 0.75 A, 0.14 ohm, SMD
1 L6 2.7 nH MuRata LQG15WH2N7C02D Inductor, Multilayer, Air Core,
2.7 nH, 0.9 A, 0.07 ohm,
AEC-Q200 Grade 1, SMD
2 R12(1), R13(1) 100k Vishay-Dale CRCW0402100KJNED RES, 100 k, 5%, 0.063 W,
AEC-Q200 Grade 0, 0402
2 U3(1), U5 Richwave RTC6608OSP 0.03 GHz-6 GHz SPDT Switch
1 U4 TDK DPX165950DT-8148A1 Multilayer Diplexer for 2.4 GHz W-LAN & Bluetooth / 5 GHz
W-LAN
If the BLE/2.4 GHz Coexistence features is not used, these components are not required.
