7.3.18 Logic Level, Tri-Level and Quad-Level Pin Diagrams

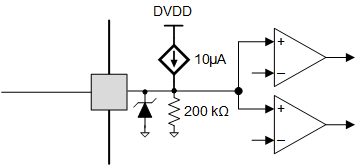

Figure 7-33 shows the input structure for M0, DECAY0 and ENABLE pins.

GUID-B28B05AE-E4A8-45DA-9250-5C8DB7A64F89-low.gifFigure 7-33 Tri-Level Input Pin Diagram

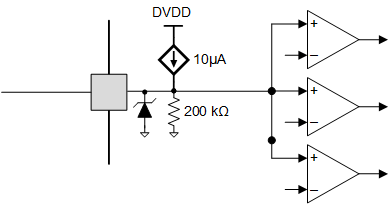

Figure 7-34 shows the input structure for M1 and TOFF pins.

GUID-38DD6010-4B1A-4675-85B2-03D0D1E03F59-low.gifFigure 7-34 Quad-Level Input Pin Diagram

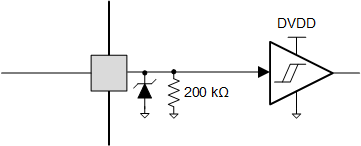

Figure 7-35 shows the input structure for STEP, DIR, MODE, SDI, SCLK, DECAY1 and nSLEEP pins.

GUID-A989E04B-F257-4E5C-BC2B-F017FE989C1B-low.gifFigure 7-35 Logic-Level Input Pin Diagram

The following diagram shows the input structure for the logic-level pin nSCS.

GUID-72277F2D-A0B1-4395-A0A2-175C9EDF82F1-low.gifFigure 7-36 nSCS Input Pin Diagram
