5.20 Typical Characteristics

LMK61E2 Closed-Loop Phase Noise of LVPECL Differential Output at 156.25MHz
PLL Bandwidth = 400kHz VCO Frequency = 5GHz
Integer-N PLL Output Divider = 32
Figure 5-1 Closed-Loop Phase Noise of LVPECL Differential Output at 156.25MHz
LMK61E2 Closed-Loop Phase Noise of HCSL Differential Output at 156.25MHz
PLL Bandwidth = 400kHzVCO Frequency = 5GHz
Integer-N PLLOutput Divider = 32
Figure 5-3 Closed-Loop Phase Noise of HCSL Differential Output at 156.25MHz
LMK61E2 Closed-Loop Phase Noise of LVDS Differential Output at 161.1328125MHz
PLL Bandwidth = 400kHzVCO Frequency = 5.15625GHz
Fractional-N PLLOutput Divider = 32
Figure 5-5 Closed-Loop Phase Noise of LVDS Differential Output at 161.1328125MHz
LMK61E2 156.25 ± 78.125MHz LVPECL Differential Output Spectrum
PLL Bandwidth = 400kHzVCO Frequency = 5GHz
Integer-N PLLOutput Divider = 32
Figure 5-7 156.25 ± 78.125MHz LVPECL Differential Output Spectrum

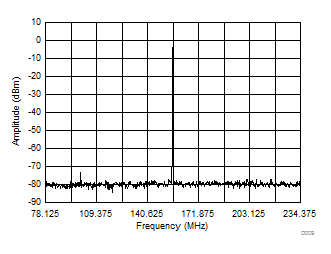

LMK61E2 156.25 ± 78.125MHz HCSL Differential Output Spectrum
PLL Bandwidth = 400kHzVCO Frequency = 5GHz
Integer-N PLLOutput Divider = 32
Figure 5-9 156.25 ± 78.125MHz HCSL Differential Output Spectrum
LMK61E2 161.1328125 ± 80.56640625MHz LVDS Output Spectrum
PLL Bandwidth = 400kHzVCO Frequency = 5.15625GHz
Fractional-N PLLOutput Divider = 32
Figure 5-11 161.1328125 ± 80.56640625MHz LVDS Output Spectrum
LMK61E2 LVPECL Differential Output Swing vs Frequency
Figure 5-13 LVPECL Differential Output Swing vs Frequency

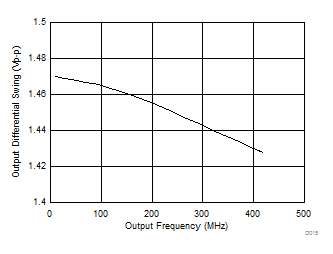

LMK61E2 HCSL Differential Output Swing vs Frequency
Figure 5-15 HCSL Differential Output Swing vs Frequency
LMK61E2 Closed-Loop Phase Noise of LVDS Differential Output at 156.25MHz
PLL Bandwidth = 400kHz VCO Frequency = 5GHz
Integer-N PLL Output Divider = 32
Figure 5-2 Closed-Loop Phase Noise of LVDS Differential Output at 156.25MHz
LMK61E2 Closed-Loop Phase Noise of LVPECL Differential Output at 161.1328125MHz
PLL Bandwidth = 400kHzVCO Frequency = 5.15625GHz
Fractional-N PLLOutput Divider = 32
Figure 5-4 Closed-Loop Phase Noise of LVPECL Differential Output at 161.1328125MHz
LMK61E2 Closed-Loop Phase Noise of HCSL Differential Output at 161.1328125MHz
PLL Bandwidth = 400kHzVCO Frequency = 5.15625GHz
Fractional-N PLLOutput Divider = 32
Figure 5-6 Closed-Loop Phase Noise of HCSL Differential Output at 161.1328125MHz

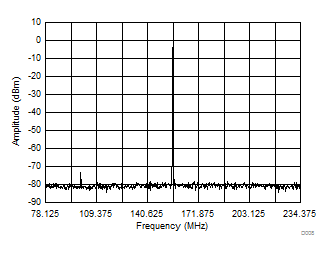

LMK61E2 156.25 ± 78.125MHz LVDS Differential Output Spectrum
PLL Bandwidth = 400kHzVCO Frequency = 5GHz
Integer-N PLLOutput Divider = 32
Figure 5-8 156.25 ± 78.125MHz LVDS Differential Output Spectrum
LMK61E2 161.1328125 ± 80.56640625MHz LVPECL Differential Output Spectrum
PLL Bandwidth = 400kHzVCO Frequency = 5.15625GHz
Fractional-N PLLOutput Divider = 32
Figure 5-10 161.1328125 ± 80.56640625MHz LVPECL Differential Output Spectrum
LMK61E2 161.1328125 ± 80.56640625MHz HCSL Output Spectrum
PLL Bandwidth = 400kHzVCO Frequency = 5.15625GHz
Fractional-N PLLOutput Divider = 32
Figure 5-12 161.1328125 ± 80.56640625MHz HCSL Output Spectrum
LMK61E2 LVDS Differential Output Swing vs Frequency
Figure 5-14 LVDS Differential Output Swing vs Frequency
