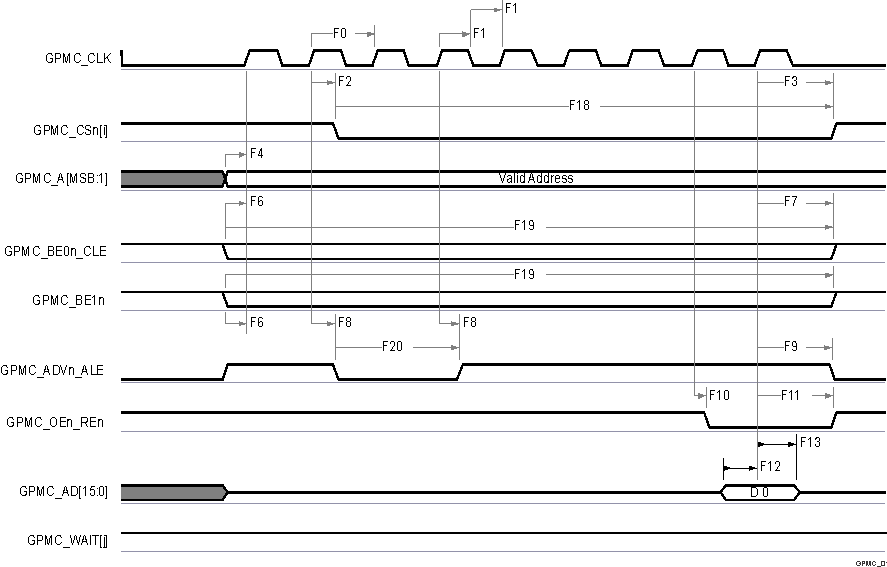

6.9.5.13.1 GPMC and NOR Flash — Synchronous Mode

Table 6-65 and Table 6-66 present timing requirements and switching characteristics for GPMC and NOR Flash - Synchronous Mode.

Table 6-65 GPMC and NOR Flash Timing Requirements — Synchronous Mode see Figure 6-47, Figure 6-48, and Figure 6-51
NO. PARAMETER DESCRIPTION MODE(4) MIN MAX MIN MAX UNIT
GPMC_FCLK = 100MHz(1) GPMC_FCLK = 133MHz(1)
F12 tsu(dV-clkH) Setup time, input data GPMC_AD[15:0] valid before output clock GPMC_CLK high div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 1.61 0.92 ns
not_div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 0.86 3.41 ns
F13 th(clkH-dV) Hold time, input data GPMC_AD[15:0] valid after output clock GPMC_CLK high div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 2.09 2.09 ns
not_div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 2.09 2.09 ns
F21 tsu(waitV-clkH) Setup time, input wait GPMC_WAIT[j](2)(3) valid before output clock GPMC_CLK high div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 1.61 0.92 ns
not_div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 0.86 3.41 ns
F22 th(clkH-waitV) Hold time, input wait GPMC_WAIT[j](2)(3) valid after output clock GPMC_CLK high div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 2.09 2.09 ns
not_div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 2.09 2.09 ns
(1) GPMC_FCLK select
  • gpmc_fclk_sel[1:0] = 2b01 to select the 100MHz GPMC_FCLK
  • gpmc_fclk_sel[1:0] = 2b00 to select the 133MHz GPMC_FCLK
(2) In GPMC_WAIT[j], j is equal to 0 or 1.
(3) Wait monitoring support is limited to a WaitMonitoringTime value > 0. For a full description of wait monitoring feature, see General-Purpose Memory Controller (GPMC) section in the device TRM.
(4) For div_by_1_mode:
  • GPMC_CONFIG1_i Register: GPMCFCLKDIVIDER = 0h:
    • GPMC_CLK frequency = GPMC_FCLK frequency

For not_div_by_1_mode:
  • GPMC_CONFIG1_i Register: GPMCFCLKDIVIDER = 1h to 3h:
    • GPMC_CLK frequency = GPMC_FCLK frequency / (2 to 4)

For GPMC_FCLK_MUX:
  • CTRLMMR_GPMC_CLKSEL[1-0] CLK_SEL = 01 = PER1_PLL_CLKOUT / 3 = 300 / 3 = 100MHz

For TIMEPARAGRANULARITY_X1:
  • GPMC_CONFIG1_i Register: TIMEPARAGRANULARITY = 0h = x1 latencies (affecting RD/WRCYCLETIME, RD/WRACCESSTIME, PAGEBURSTACCESSTIME, CSONTIME, CSRD/WROFFTIME, ADVONTIME, ADVRD/WROFFTIME, OEONTIME, OEOFFTIME, WEONTIME, WEOFFTIME, CYCLE2CYCLEDELAY, BUSTURNAROUND, TIMEOUTSTARTVALUE, WRDATAONADMUXBUS)
Table 6-66 GPMC and NOR Flash Switching Characteristics – Synchronous Mode see Figure 6-47, Figure 6-48, Figure 6-49, Figure 6-50, and Figure 6-51
NO.(2) PARAMETER DESCRIPTION MODE(16) MIN MAX MIN MAX UNIT
100MHz 133MHz
F0 1 / tc(clk) Period, output clock GPMC_CLK(15) div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 10.00 7.52 ns
F1 tw(clkH) Typical pulse duration, output clock GPMC_CLK high div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 0.475P - 0.3(14) 0.475P - 0.3(14) ns
F1 tw(clkL) Typical pulse duration, output clock GPMC_CLK low div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 0.475P - 0.3(14) 0.475P - 0.3(14) ns
F2 td(clkH-csnV) Delay time, output clock GPMC_CLK rising edge to output chip select GPMC_CSn[i] transition(13) div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1;
no extra_delay		 F - 2.2 (5) F + 3.75 F - 2.2 (5) F + 3.75 ns
F3 td(clkH-CSn[i]V) Delay time, output clock GPMC_CLK rising edge to output chip select GPMC_CSn[i] invalid(13) div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1;
no extra_delay		 E - 2.2 (4) E + 3.18 E - 2.2 (4) E + 4.5 ns
F4 td(aV-clk) Delay time, output address GPMC_A[27:1] valid to output clock GPMC_CLK first edge div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 B - 2.3 (2) B + 4.5 B - 2.3 (2) B + 4.5 ns
F5 td(clkH-aIV) Delay time, output clock GPMC_CLK rising edge to output address GPMC_A[27:1] invalid div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 -2.3 4.5 -2.3 4.5 ns
F6 td(be[x]nV-clk) Delay time, output lower byte enable and command latch enable GPMC_BE0n_CLE, output upper byte enable GPMC_BE1n valid to output clock GPMC_CLK first edge div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 B - 2.3 (2) B + 1.9 B - 2.3 (2) B + 1.9 ns
F7 td(clkH-be[x]nIV) Delay time, output clock GPMC_CLK rising edge to output lower byte enable and command latch enable GPMC_BE0n_CLE, output upper byte enable GPMC_BE1n invalid(10) div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 D - 2.3(3) D + 1.9 D - 2.3 (3) D + 1.9 ns
F7 td(clkL-be[x]nIV) Delay time, GPMC_CLK falling edge to GPMC_BE0n_CLE, GPMC_BE1n invalid(11) div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 D - 2.3 (3) D + 1.9 D - 2.3 (3) D + 1.9 ns
F7 td(clkL-be[x]nIV). Delay time, GPMC_CLK falling edge to GPMC_BE0n_CLE, GPMC_BE1n invalid(12) div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 D - 2.3 (3) D + 1.9 D - 2.3 (3) D + 1.9 ns
F8 td(clkH-advn) Delay time, output clock GPMC_CLK rising edge to output address valid and address latch enable GPMC_ADVn_ALE transition div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1;
no extra_delay		 G - 2.3(6) G + 4.5 G - 2.3 (6) G + 4.5 ns
F9 td(clkH-advnIV) Delay time, output clock GPMC_CLK rising edge to output address valid and address latch enable GPMC_ADVn_ALE invalid div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1;
no extra_delay		 D - 2.3 (3) D + 4.5 D - 2.3 (3) D + 4.5 ns
F10 td(clkH-oen) Delay time, output clock GPMC_CLK rising edge to output enable GPMC_OEn_REn transition div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1;
no extra_delay		 H - 2.3 (7) H + 3.5 H - 2.3 (7) H + 3.5 ns
F11 td(clkH-oenIV) Delay time, output clock GPMC_CLK rising edge to output enable GPMC_OEn_REn invalid div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1;
no extra_delay		 H - 2.3 (7) H + 3.5 H - 2.3 (7) H + 3.5 ns
F14 td(clkH-wen) Delay time, output clock GPMC_CLK rising edge to output write enable GPMC_WEn transition div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1;
no extra_delay		 I - 2.3 (8) I + 4.5 I - 2.3 (8) I + 4.5 ns
F15 td(clkH-do) Delay time, output clock GPMC_CLK rising edge to output data GPMC_AD[15:0] transition(10) div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 J - 2.3 (9) J + 2.7 J - 2.3 (9) J + 2.7 ns
F15 td(clkL-do) Delay time, GPMC_CLK falling edge to GPMC_AD[15:0] data bus transition(11) div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 J - 2.3 (9) J + 2.7 J - 2.3 (9) J + 2.7 ns
F15 td(clkL-do). Delay time, GPMC_CLK falling edge to GPMC_AD[15:0] data bus transition(12) div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 J - 2.3 (9) J + 2.7 J - 2.3 (9) J + 2.7 ns
F17 td(clkH-be[x]n) Delay time, output clock GPMC_CLK rising edge to output lower byte enable and command latch enable GPMC_BE0n_CLE transition(10) div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 J - 2.3 (9) J + 1.9 J - 2.3 (9) J + 1.9 ns
F17 td(clkL-be[x]n) Delay time, GPMC_CLK falling edge to GPMC_BE0n_CLE, GPMC_BE1n transition(11) div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 J - 2.3 (9) J + 1.9 J - 2.3 (9) J + 1.9 ns
F17 td(clkL-be[x]n). Delay time, GPMC_CLK falling edge to GPMC_BE0n_CLE, GPMC_BE1n transition(12) div_by_1_mode;
GPMC_FCLK_MUX;
TIMEPARAGRANULARITY_X1		 J - 2.3 (9) J + 1.9 J - 2.3 (9) J + 1.9 ns
F18 tw(csnV) Pulse duration, output chip select GPMC_CSn[i](13) low Read A A ns
Write A A ns
F19 tw(be[x]nV) Pulse duration, output lower byte enable and command latch enable GPMC_BE0n_CLE, output upper byte enable GPMC_BE1n low Read C C ns
Write C C ns
F20 tw(advnV) Pulse duration, output address valid and address latch enable GPMC_ADVn_ALE low Read K K ns
Write K K ns
(2) B = ClkActivationTime × GPMC_FCLK(14)
(3) For single read: D = (RdCycleTime - AccessTime) × (TimeParaGranularity + 1) × GPMC_FCLK(14)
For burst read: D = (RdCycleTime - AccessTime) × (TimeParaGranularity + 1) × GPMC_FCLK(14)
For burst write: D = (WrCycleTime - AccessTime) × (TimeParaGranularity + 1) × GPMC_FCLK(14)
(4) For single read: E = (CSRdOffTime - AccessTime) × (TimeParaGranularity + 1) × GPMC_FCLK(14)
For burst read: E = (CSRdOffTime - AccessTime) × (TimeParaGranularity + 1) × GPMC_FCLK(14)
For burst write: E = (CSWrOffTime - AccessTime) × (TimeParaGranularity + 1) × GPMC_FCLK(14)
(5) For csn falling edge (CS activated):
  • Case GPMCFCLKDIVIDER = 0:
    • F = 0.5 × CSExtraDelay × GPMC_FCLK(14)
  • Case GPMCFCLKDIVIDER = 1:
    • F = 0.5 × CSExtraDelay × GPMC_FCLK(14) if (ClkActivationTime and CSOnTime are odd) or (ClkActivationTime and CSOnTime are even)
    • F = (1 + 0.5 × CSExtraDelay) × GPMC_FCLK(14) otherwise
  • Case GPMCFCLKDIVIDER = 2:
    • F = 0.5 × CSExtraDelay × GPMC_FCLK(14) if ((CSOnTime - ClkActivationTime) is a multiple of 3)
    • F = (1 + 0.5 × CSExtraDelay) × GPMC_FCLK(14) if ((CSOnTime - ClkActivationTime - 1) is a multiple of 3)
    • F = (2 + 0.5 × CSExtraDelay) × GPMC_FCLK(14) if ((CSOnTime - ClkActivationTime - 2) is a multiple of 3)
(6) For ADV falling edge (ADV activated):
  • Case GPMCFCLKDIVIDER = 0:
    • G = 0.5 × ADVExtraDelay × GPMC_FCLK(14)
  • Case GPMCFCLKDIVIDER = 1:
    • G = 0.5 × ADVExtraDelay × GPMC_FCLK(14) if (ClkActivationTime and ADVOnTime are odd) or (ClkActivationTime and ADVOnTime are even)
    • G = (1 + 0.5 × ADVExtraDelay) × GPMC_FCLK(14) otherwise
  • Case GPMCFCLKDIVIDER = 2:
    • G = 0.5 × ADVExtraDelay × GPMC_FCLK(14) if ((ADVOnTime - ClkActivationTime) is a multiple of 3)
    • G = (1 + 0.5 × ADVExtraDelay) × GPMC_FCLK(14) if ((ADVOnTime - ClkActivationTime - 1) is a multiple of 3)
    • G = (2 + 0.5 × ADVExtraDelay) × GPMC_FCLK(14) if ((ADVOnTime - ClkActivationTime - 2) is a multiple of 3)

For ADV rising edge (ADV deactivated) in Reading mode:
  • Case GPMCFCLKDIVIDER = 0:
    • G = 0.5 × ADVExtraDelay × GPMC_FCLK(14)
  • Case GPMCFCLKDIVIDER = 1:
    • G = 0.5 × ADVExtraDelay × GPMC_FCLK(14) if (ClkActivationTime and ADVRdOffTime are odd) or (ClkActivationTime and ADVRdOffTime are even)
    • G = (1 + 0.5 × ADVExtraDelay) × GPMC_FCLK(14) otherwise
  • Case GPMCFCLKDIVIDER = 2:
    • G = 0.5 × ADVExtraDelay × GPMC_FCLK(14) if ((ADVRdOffTime - ClkActivationTime) is a multiple of 3)
    • G = (1 + 0.5 × ADVExtraDelay) × GPMC_FCLK(14) if ((ADVRdOffTime - ClkActivationTime - 1) is a multiple of 3)
    • G = (2 + 0.5 × ADVExtraDelay) × GPMC_FCLK(14) if ((ADVRdOffTime - ClkActivationTime - 2) is a multiple of 3)

For ADV rising edge (ADV deactivated) in Writing mode:
  • Case GPMCFCLKDIVIDER = 0:
    • G = 0.5 × ADVExtraDelay × GPMC_FCLK(14)
  • Case GPMCFCLKDIVIDER = 1:
    • G = 0.5 × ADVExtraDelay × GPMC_FCLK(14) if (ClkActivationTime and ADVWrOffTime are odd) or (ClkActivationTime and ADVWrOffTime are even)
    • G = (1 + 0.5 × ADVExtraDelay) × GPMC_FCLK(14) otherwise
  • Case GPMCFCLKDIVIDER = 2:
    • G = 0.5 × ADVExtraDelay × GPMC_FCLK(14) if ((ADVWrOffTime - ClkActivationTime) is a multiple of 3)
    • G = (1 + 0.5 × ADVExtraDelay) × GPMC_FCLK(14) if ((ADVWrOffTime - ClkActivationTime - 1) is a multiple of 3)
    • G = (2 + 0.5 × ADVExtraDelay) × GPMC_FCLK(14) if ((ADVWrOffTime - ClkActivationTime - 2) is a multiple of 3)
(7) For OE falling edge (OE activated) and IO DIR rising edge (Data Bus input direction):
  • Case GPMCFCLKDIVIDER = 0:
    • H = 0.5 × OEExtraDelay × GPMC_FCLK(14)
  • Case GPMCFCLKDIVIDER = 1:
    • H = 0.5 × OEExtraDelay × GPMC_FCLK(14) if (ClkActivationTime and OEOnTime are odd) or (ClkActivationTime and OEOnTime are even)
    • H = (1 + 0.5 × OEExtraDelay) × GPMC_FCLK(14) otherwise
  • Case GPMCFCLKDIVIDER = 2:
    • H = 0.5 × OEExtraDelay × GPMC_FCLK(14) if ((OEOnTime - ClkActivationTime) is a multiple of 3)
    • H = (1 + 0.5 × OEExtraDelay) × GPMC_FCLK(14) if ((OEOnTime - ClkActivationTime - 1) is a multiple of 3)
    • H = (2 + 0.5 × OEExtraDelay) × GPMC_FCLK(14) if ((OEOnTime - ClkActivationTime - 2) is a multiple of 3)

For OE rising edge (OE deactivated):
  • Case GPMCFCLKDIVIDER = 0:
    • H = 0.5 × OEExtraDelay × GPMC_FCLK(14)
  • Case GPMCFCLKDIVIDER = 1:
    • H = 0.5 × OEExtraDelay × GPMC_FCLK(14) if (ClkActivationTime and OEOffTime are odd) or (ClkActivationTime and OEOffTime are even)
    • H = (1 + 0.5 × OEExtraDelay) × GPMC_FCLK(14) otherwise
  • Case GPMCFCLKDIVIDER = 2:
    • H = 0.5 × OEExtraDelay × GPMC_FCLK(14) if ((OEOffTime - ClkActivationTime) is a multiple of 3)
    • H = (1 + 0.5 × OEExtraDelay) × GPMC_FCLK(14) if ((OEOffTime - ClkActivationTime - 1) is a multiple of 3)
    • H = (2 + 0.5 × OEExtraDelay) × GPMC_FCLK(14) if ((OEOffTime - ClkActivationTime - 2) is a multiple of 3)
(8) For WE falling edge (WE activated):
  • Case GPMCFCLKDIVIDER = 0:
    • I = 0.5 × WEExtraDelay × GPMC_FCLK(14)
  • Case GPMCFCLKDIVIDER = 1:
    • I = 0.5 × WEExtraDelay × GPMC_FCLK(14) if (ClkActivationTime and WEOnTime are odd) or (ClkActivationTime and WEOnTime are even)
    • I = (1 + 0.5 × WEExtraDelay) × GPMC_FCLK(14) otherwise
  • Case GPMCFCLKDIVIDER = 2:
    • I = 0.5 × WEExtraDelay × GPMC_FCLK(14) if ((WEOnTime - ClkActivationTime) is a multiple of 3)
    • I = (1 + 0.5 × WEExtraDelay) × GPMC_FCLK(14) if ((WEOnTime - ClkActivationTime - 1) is a multiple of 3)
    • I = (2 + 0.5 × WEExtraDelay) × GPMC_FCLK(14) if ((WEOnTime - ClkActivationTime - 2) is a multiple of 3)

For WE rising edge (WE deactivated):
  • Case GPMCFCLKDIVIDER = 0:
    • I = 0.5 × WEExtraDelay × GPMC_FCLK (14)
  • Case GPMCFCLKDIVIDER = 1:
    • I = 0.5 × WEExtraDelay × GPMC_FCLK(14) if (ClkActivationTime and WEOffTime are odd) or (ClkActivationTime and WEOffTime are even)
    • I = (1 + 0.5 × WEExtraDelay) × GPMC_FCLK(14) otherwise
  • Case GPMCFCLKDIVIDER = 2:
    • I = 0.5 × WEExtraDelay × GPMC_FCLK(14) if ((WEOffTime - ClkActivationTime) is a multiple of 3)
    • I = (1 + 0.5 × WEExtraDelay) × GPMC_FCLK(14) if ((WEOffTime - ClkActivationTime - 1) is a multiple of 3)
    • I = (2 + 0.5 × WEExtraDelay) × GPMC_FCLK(14) if ((WEOffTime - ClkActivationTime - 2) is a multiple of 3)
(9) J = GPMC_FCLK(14)
(10) First transfer only for CLK DIV 1 mode.
(11) Half cycle; for all data after initial transfer for CLK DIV 1 mode.
(12) Half cycle of GPMC_CLKOUT; for all data for modes other than CLK DIV 1 mode. GPMC_CLKOUT divide down from GPMC_FCLK.
(13) In GPMC_CSn[i], i is equal to 0, 1, 2 or 3. In GPMC_WAIT[j], j is equal to 0 or 1.
(14) P = GPMC_CLK period in ns
(15) Related to the GPMC_CLK output clock maximum and minimum frequencies programmable in the GPMC module by setting the GPMC_CONFIG1_i configuration register bit field GPMCFCLKDIVIDER.
(16) For div_by_1_mode:
  • GPMC_CONFIG1_i register: GPMCFCLKDIVIDER = 0h:
    • GPMC_CLK frequency = GPMC_FCLK frequency

For GPMC_FCLK_MUX:
  • CTRLMMR_GPMC_CLKSEL[1-0] CLK_SEL = 01 = PER1_PLL_CLKOUT / 3 = 300 / 3 = 100MHz

For TIMEPARAGRANULARITY_X1:
  • GPMC_CONFIG1_i Register: TIMEPARAGRANULARITY = 0h = x1 latencies (affecting RD/WRCYCLETIME, RD/WRACCESSTIME, PAGEBURSTACCESSTIME, CSONTIME, CSRD/WROFFTIME, ADVONTIME, ADVRD/WROFFTIME, OEONTIME, OEOFFTIME, WEONTIME, WEOFFTIME, CYCLE2CYCLEDELAY, BUSTURNAROUND, TIMEOUTSTARTVALUE, WRDATAONADMUXBUS)

For no extra_delay:
  • GPMC_CONFIG2_i Register: CSEXTRADELAY = 0h = CSn Timing control signal is not delayed
  • GPMC_CONFIG4_i Register: WEEXTRADELAY = 0h = nWE timing control signal is not delayed
  • GPMC_CONFIG4_i Register: OEEXTRADELAY = 0h = nOE timing control signal is not delayed
  • GPMC_CONFIG3_i Register: ADVEXTRADELAY = 0h = nADV timing control signal is not delayed
TDA4VEN-Q1 TDA4AEN-Q1 GPMC and NOR Flash — Synchronous Single Read (GPMCFCLKDIVIDER = 0)
A. In GPMC_CSn[i], i is equal to 0, 1, 2 or 3.
B. In GPMC_WAIT[j], j is equal to 0 or 1.
Figure 6-47 GPMC and NOR Flash — Synchronous Single Read (GPMCFCLKDIVIDER = 0)
TDA4VEN-Q1 TDA4AEN-Q1 GPMC and NOR Flash — Synchronous Burst Read — 4x16–bit (GPMCFCLKDIVIDER = 0)
A. In GPMC_CSn[i], i is equal to 0, 1, 2 or 3.
B. In GPMC_WAIT[j], j is equal to 0 or 1.
Figure 6-48 GPMC and NOR Flash — Synchronous Burst Read — 4x16–bit (GPMCFCLKDIVIDER = 0)
TDA4VEN-Q1 TDA4AEN-Q1 GPMC and NOR Flash—Synchronous Burst Write (GPMCFCLKDIVIDER = 0)
A. In GPMC_CSn[i], i is equal to 0, 1, 2 or 3.
B. In GPMC_WAIT[j], j is equal to 0 or 1.
Figure 6-49 GPMC and NOR Flash—Synchronous Burst Write (GPMCFCLKDIVIDER = 0)
TDA4VEN-Q1 TDA4AEN-Q1 GPMC and Multiplexed NOR Flash — Synchronous Burst Read
A. In GPMC_CSn[i], i is equal to 0, 1, 2 or 3.
B. In GPMC_WAIT[j], j is equal to 0 or 1.
Figure 6-50 GPMC and Multiplexed NOR Flash — Synchronous Burst Read
TDA4VEN-Q1 TDA4AEN-Q1 GPMC and Multiplexed NOR Flash — Synchronous Burst Write
A. In GPMC_CSn[i], i is equal to 0, 1, 2 or 3.
B. In GPMC_WAIT[j], j is equal to 0 or 1.
Figure 6-51 GPMC and Multiplexed NOR Flash — Synchronous Burst Write
