WKUP_LFOSC0 Internal Oscillator Clock Source

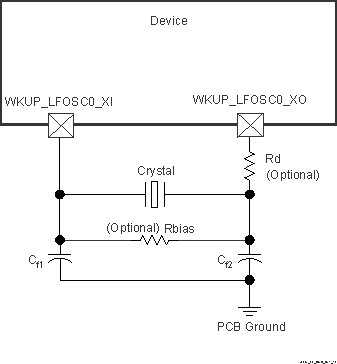

Figure 6-21 shows the recommended crystal circuit. It is recommended that preproduction printed-circuit board (PCB) designs include the two optional resistors Rbias and Rd in case they are required for proper oscillator operation when combined with production crystal circuit components. In most cases, Rbias is not required and Rd is a 0-Ω resistor. These resistors may be removed from production PCB designs after evaluating oscillator performance with production crystal circuit components installed on preproduction PCBs.

TDA4VEN-Q1 TDA4AEN-Q1 WKUP_LFOSC0 Crystal Implementation Figure 6-21 WKUP_LFOSC0 Crystal Implementation

Table 6-24 presents LFXOSC modes of operation.

Table 6-24 LFXOSC Modes of Operation
MODE BP_C PD_C XI XO CLK_OUT DESCRIPTION
ACTIVE 0 0 XTAL XTAL CLK_OUT Active oscillator mode providing 32kHz
PWRDN 0 1 X PD LOW Output will be pulled down to LOW. PAD to be tri-stated. Active mode disabled
BYPASS 1 0 CLK PD CLK XI is driven by external clock source. XO is pulled down to LOW. Due to ESD diode to supply, XI should not be driven unless oscillator supply is present.
Note:

User should set CTRLMMR_WKUP_LFXOSC_TRIM[18:16] i_mult = 3b’001 for CL in the range 6pf to 9.5pf. CTRLMMR_WKUP_LFXOSC_TRIM [18:16] i_mult = 3b’010 for CL in the range 8.5pf to 12pf. Default setting is 3b’010.

Note:

The load capacitors, Cf1 and Cf2 in Figure 6-22, should be chosen such that the below equation is satisfied. CL in the equation is the load specified by the crystal manufacturer. All discrete components used to implement the oscillator circuit should be placed as close as possible to the associated oscillator WKUP_LFOSC0_XI, WKUP_LFOSC0_XO, and VSS pins.

TDA4VEN-Q1 TDA4AEN-Q1 Load
                    Capacitance Equation Figure 6-22 Load Capacitance Equation

The crystal must be in the fundamental mode of operation and parallel resonant. Table 6-25 summarizes the required electrical constraints.

Table 6-25 WKUP_LFOSC0 Crystal Electrical Characteristics
NAME DESCRIPTION MIN TYP MAX UNIT
fp Parallel resonance crystal frequency 32768 Hz
Crystal Frequency Stability and Tolerance ±100 PPM
Cf1 Cf1 load capacitance for crystal parallel resonance with Cf1 = Cf2 12 24 pF
Cf2 Cf2 load capacitance for crystal parallel resonance with Cf1 = Cf2 12 24 pF
Cshunt Shunt capacitance ESRxtal – 40 kΩ 4 pF
ESRxtal – 60 kΩ 3 pF
ESRxtal – 80 kΩ 2 pF
ESRxtal – 100 kΩ 1 pF
ESR Crystal effective series resistance (1) Ω
The maximum ESR of the crystal is a function of the crystal frequency and shunt capacitance. See the Cshunt parameter.

When selecting a crystal, the system design must consider the temperature and aging characteristics of a based on the worst case environment and expected life expectancy of the system.

Table 6-26 details the switching characteristics of the oscillator and the requirements of the input clock.

Table 6-26 WKUP_LFOSC0 Switching Characteristics – Crystal Mode
NAME DESCRIPTION MIN TYP MAX UNIT
fxtal Oscillation frequency 32768 Hz
tsX Start-up time 96.5 ms
TDA4VEN-Q1 TDA4AEN-Q1 WKUP_LFOSC0 Start-up Time Figure 6-23 WKUP_LFOSC0 Start-up Time
