6.9.5.7 DSS

Table 6-44, Table 6-45, Figure 6-36, Table 6-46 and Figure 6-37 present timing conditions, timing requirements, and switching characteristics for DSS.

Table 6-44 DSS Timing Conditions
PARAMETER MIN MAX UNIT
INPUT CONDITIONS
SRI Input slew rate 1.44 26.4 V/ns
OUTPUT CONDITIONS
CL Output load capacitance 1.5 5 pF
PCB CONNECTIVITY REQUIREMENTS
td(Trace Mismatch Delay) Propagation delay mismatch across all traces 100 ps
Table 6-45 DSS External Pixel Clock Timing Requirements see Figure 6-36
NO. MIN MAX UNIT
D6 tc(extpclkin) Cycle time, VOUT(x)_EXTPCLKIN(2) 6.06 ns
D7 tw(extpclkinL) Pulse duration, VOUT(x)_EXTPCLKIN(2) low 0.475P(1) ns
D8 tw(extpclkinH) Pulse duration, VOUT(x)_EXTPCLKIN(2) high 0.475P(1) ns
(1) P = VOUT(x)_EXTPCLKIN cycle time in ns
(2) x in VOUT(x) = 0

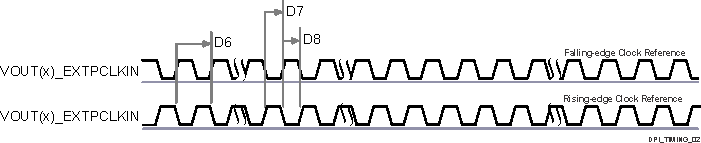

TDA4VEN-Q1 TDA4AEN-Q1 DSS External Pixel Clock Timing Requirements Figure 6-36 DSS External Pixel Clock Timing Requirements
Table 6-46 DSS Switching Characteristics see Figure 6-37
NO. PARAMETER MODE MIN MAX UNIT
D1 tc(pclk) Cycle time, VOUT(x)_PCLK(2) 6.06 ns
D2 tw(pclkL) Pulse duration, VOUT(x)_PCLK(2) low Internal PLL 0.475P(1) - 0.3 ns
EXTPCLKIN Y(3) - 0.45 ns
D3 tw(pclkH) Pulse duration, VOUT(x)_PCLK(2) high Internal PLL 0.475P(1) -0.3 ns
EXTPCLKIN Z(4) - 0.45 ns
D4 td(pclkV-dataV) Delay time, VOUT(x)_PCLK(2) transition to VOUT(x)_DATA[23:0](2) transition Internal PLL -0.68 1.78 ns
EXTPCLKIN -0.68 1.78 ns
D5 td(pclkV-ctrlL) Delay time, VOUT(x)_PCLK(2) transition to control signals VOUT(x)_VSYNC(2), VOUT(x)_HSYNC(2), VOUT(x)_DE(2) falling edge Internal PLL -0.68 1.78 ns
EXTPCLKIN -0.68 1.78 ns
(1) P = VOUT(x)_PCLK cycle time in ns
(2) x in VOUT(x) = 0
(3) Y = tw(extpclkinL), parameter D7 from Table 6-45, DSS External Pixel Clock Timing Requirements
(4) Z = tw(extpclkinH), parameter D8 from Table 6-45, DSS External Pixel Clock Timing Requirements
TDA4VEN-Q1 TDA4AEN-Q1 DSS Switching Characteristics
A. The assertion of data can be programmed to occur on the falling or rising edge of the pixel clock. Refer to Display Subsystem (DSS) section in Peripherals chapter in the device TRM.
B. The polarity and pulse width of VOUT(x)_HSYNC and VOUT(x)_VSYNC are programmable, refer to Display Subsystem (DSS) section in Peripherals chapter in the device TRM.
C. The VOUT(x)_PCLK frequency is configurable, refer to Display Subsystem section in Peripherals chapter in the device TRM.
Figure 6-37 DSS Switching Characteristics

For more information, see Display Subsystem (DSS) and Peripherals section in Peripherals chapter of the device TRM.
