7.2.4.3 Application Curves

VIN = 12V 2.5MHz Auto PFM/PWM Io = 1A
VOUT = 1.2V L = 2.2μH TA = 25°C
Figure 7-67 Output Voltage Ripple
Auto PFM/PWM L = 2.2μH Fsw = 1MHz

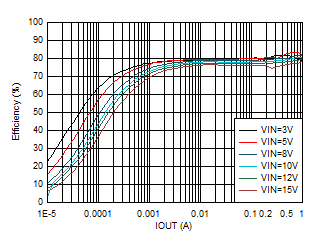

Figure 7-69 Efficiency vs Output Current VOUT = 0.4V
Auto PFM/PWM L = 1μH Fsw = 2.5MHz
Figure 7-71 Efficiency vs Output Current VOUT = 0.4V
Auto PFM/PWM L = 2.2μH Fsw = 1MHz

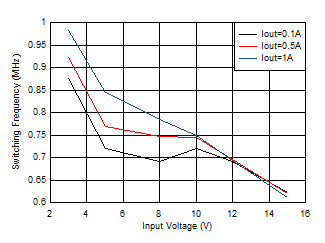

Figure 7-73 Switching Frequency vs Input Voltage VOUT = 0.4V
Auto PFM/PWM L = 1μH Fsw = 2.5MHz

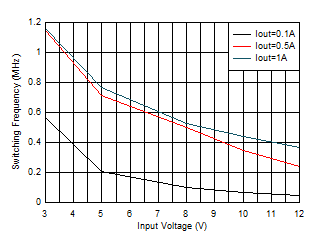

Figure 7-75 Switching Frequency vs Input Voltage VOUT = 0.4V
Auto PFM/PWM L = 2.2μH Fsw = 1MHz

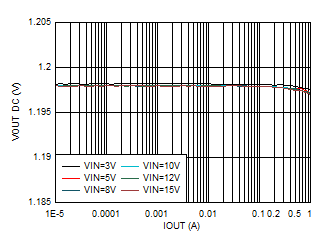

Figure 7-77 Output Voltage vs Output Current VOUT = 1.2V
Auto PFM/PWM L = 1μH Fsw = 2.5MHz
Figure 7-79 Output Voltage vs Output Current VOUT = 1.2V
VIN = 3V - 17V Temp = -40°C to 150°C
Figure 7-68 Output Voltage Accuracy - VSET Selected
FPWM L = 2.2μH Fsw = 1MHz
Figure 7-70 Efficiency vs Output Current VOUT = 0.4V
FPWM L = 1μH Fsw = 2.5MHz
Figure 7-72 Efficiency vs Output Current VOUT = 0.4 V
FPWM L = 2.2μH Fsw = 1MHz

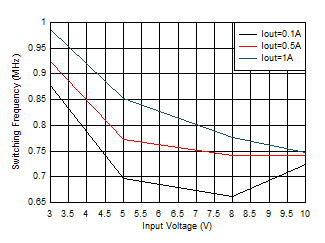

Figure 7-74 Switching Frequency vs Input Voltage VOUT = 0.4V
FPWM L = 1μH Fsw = 2.5MHz
Figure 7-76 Switching Frequency vs Input Voltage VOUT = 0.4V
FPWM L = 2.2μH Fsw = 1MHz
Figure 7-78 Output Voltage vs Output Current VOUT = 1.2V
FPWM L = 1μH Fsw = 2.5MHz
Figure 7-80 Output Voltage vs Output Current VOUT = 1.2V
