7.2.3 Application Curves

Auto PFM/PWM L = 2.2μH Fsw = 1MHz
Figure 7-7 Efficiency vs Output Current VOUT = 5V
Auto PFM/PWM L = 1μH Fsw = 2.5MHz
Figure 7-9 Efficiency vs Output Current VOUT = 5V
Auto PFM/PWM L = 2.2μH Fsw = 1MHz
Figure 7-11 Efficiency vs Output Current VOUT = 3.3V
Auto PFM/PWM L = 1μH Fsw = 2.5MHz
Figure 7-13 Efficiency vs Output Current VOUT = 3.3V
Auto PFM/PWM L = 2.2μH Fsw = 1MHz

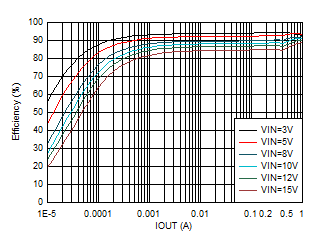

Figure 7-15 Efficiency vs Output Current VOUT = 1.8V
Auto PFM/PWM L = 1μH Fsw = 2.5MHz
Figure 7-17 Efficiency vs Output Current VOUT = 1.8V
Auto PFM/PWM L = 2.2μH Fsw = 1MHz

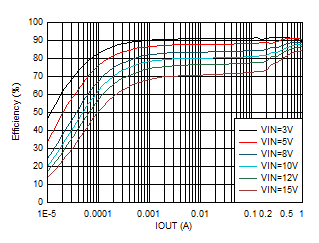

Figure 7-19 Efficiency vs Output Current VOUT = 1.2V
Auto PFM/PWM L = 1μH Fsw = 2.5MHz
Figure 7-21 Efficiency vs Output Current VOUT = 1.2V
Auto PFM/PWM L = 2.2μH Fsw = 1MHz
Figure 7-23 Switching Frequency vs Input Voltage VOUT = 5V
Auto PFM/PWM L = 1μH Fsw = 2.5MHz
Figure 7-25 Switching Frequency vs Input Voltage VOUT = 5V
Auto PFM/PWM L = 2.2μH Fsw = 1MHz
Figure 7-27 Switching Frequency vs Input Voltage VOUT = 3.3V
Auto PFM/PWM L = 1μH Fsw = 2.5MHz
Figure 7-29 Switching Frequency vs Input Voltage VOUT = 3.3V
Auto PFM/PWM L = 2.2μH Fsw = 1MHz
Figure 7-31 Switching Frequency vs Input Voltage VOUT = 1.8V
Auto PFM/PWM L = 1μH Fsw = 2.5MHz
Figure 7-33 Switching Frequency vs Input Voltage VOUT = 1.8V
Auto PFM/PWM L = 2.2μH Fsw = 1MHz

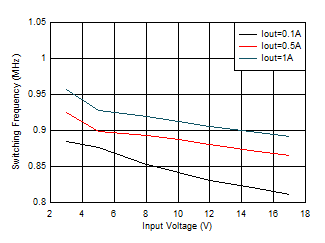

Figure 7-35 Switching Frequency vs Input Voltage VOUT = 1.2V
Auto PFM/PWM L = 1μH Fsw = 2.5MHz
Figure 7-37 Switching Frequency vs Input Voltage VOUT = 1.2V
FPWM L = 1μH Fsw = 2.5MHz
Figure 7-39 Output Voltage vs Output Current VOUT = 3.3V
VIN = 12V 1MHz Auto PFM/PWM Io = 10mA
VOUT = 1.2V TA = 25°C
Figure 7-41 Start-up Timing
VIN = 12V 1MHz Auto PFM/PWM Io = 1A
VOUT = 5V TA = 25°C
Figure 7-43 Start-up Timing
VIN = 12V 1MHz Auto PFM/PWM Io = 0.1A
VOUT = 1.2V L = 2.2μH TA = 25°C

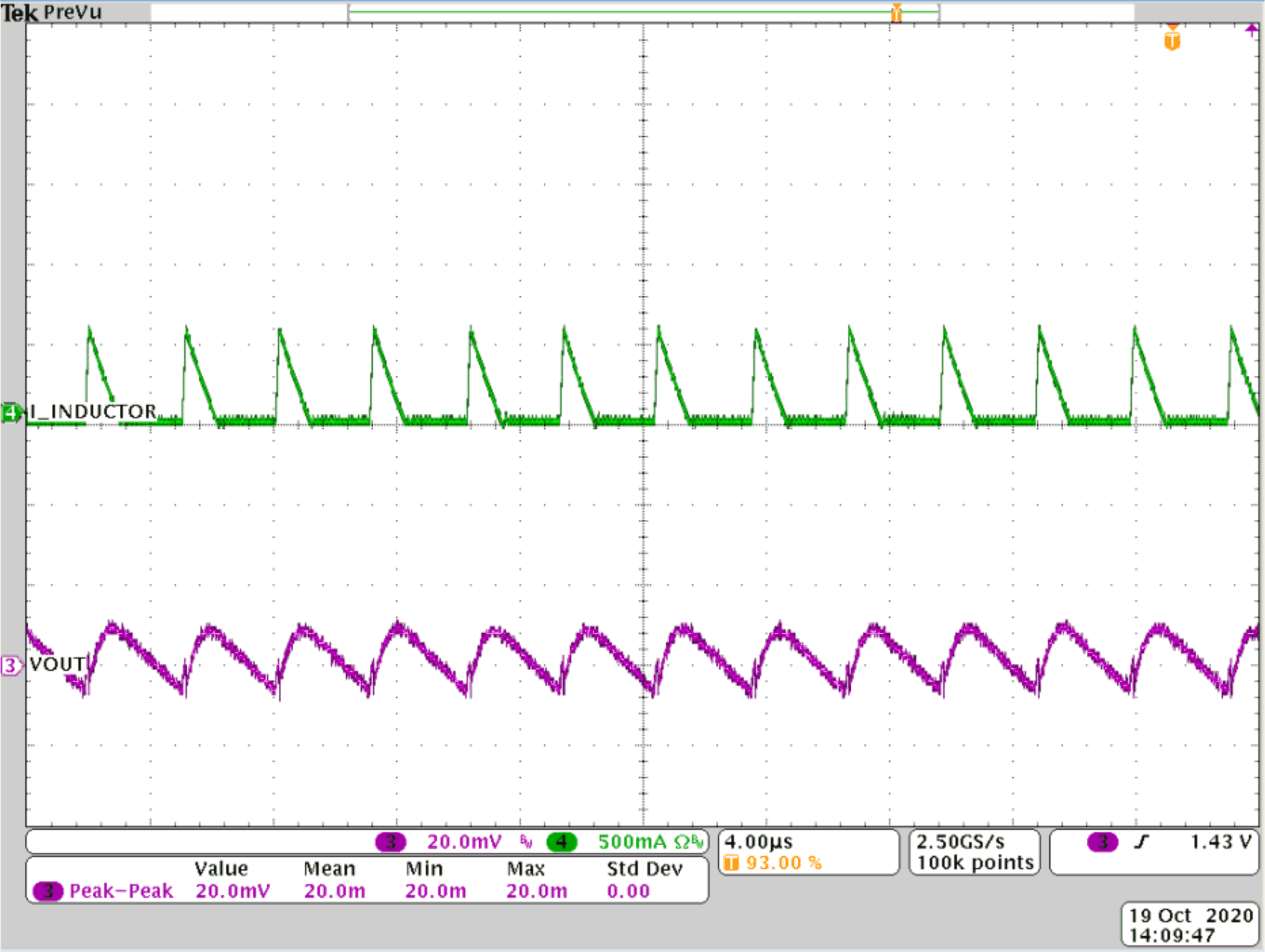

Figure 7-45 Output Voltage Ripple
VIN = 12V 2.5MHz Auto PFM/PWM Io = 0.1A
VOUT = 1.2V L = 2.2μH TA = 25°C
Figure 7-47 Output Voltage Ripple
VIN = 12V 1MHz Auto PFM/PWM Io = 1A
VOUT = 1.2V L = 2.2μH TA = 25°C
Figure 7-49 Output Voltage Ripple
VIN = 12V 2.5MHz Auto PFM/PWM Io = 1A
VOUT = 1.2V L = 2.2μH TA = 25°C
Figure 7-51 Output Voltage Ripple
VIN = 12V 1MHz FPWM Io = 10mA
VOUT = 3.0V L = 2.2μH TA = 25°C

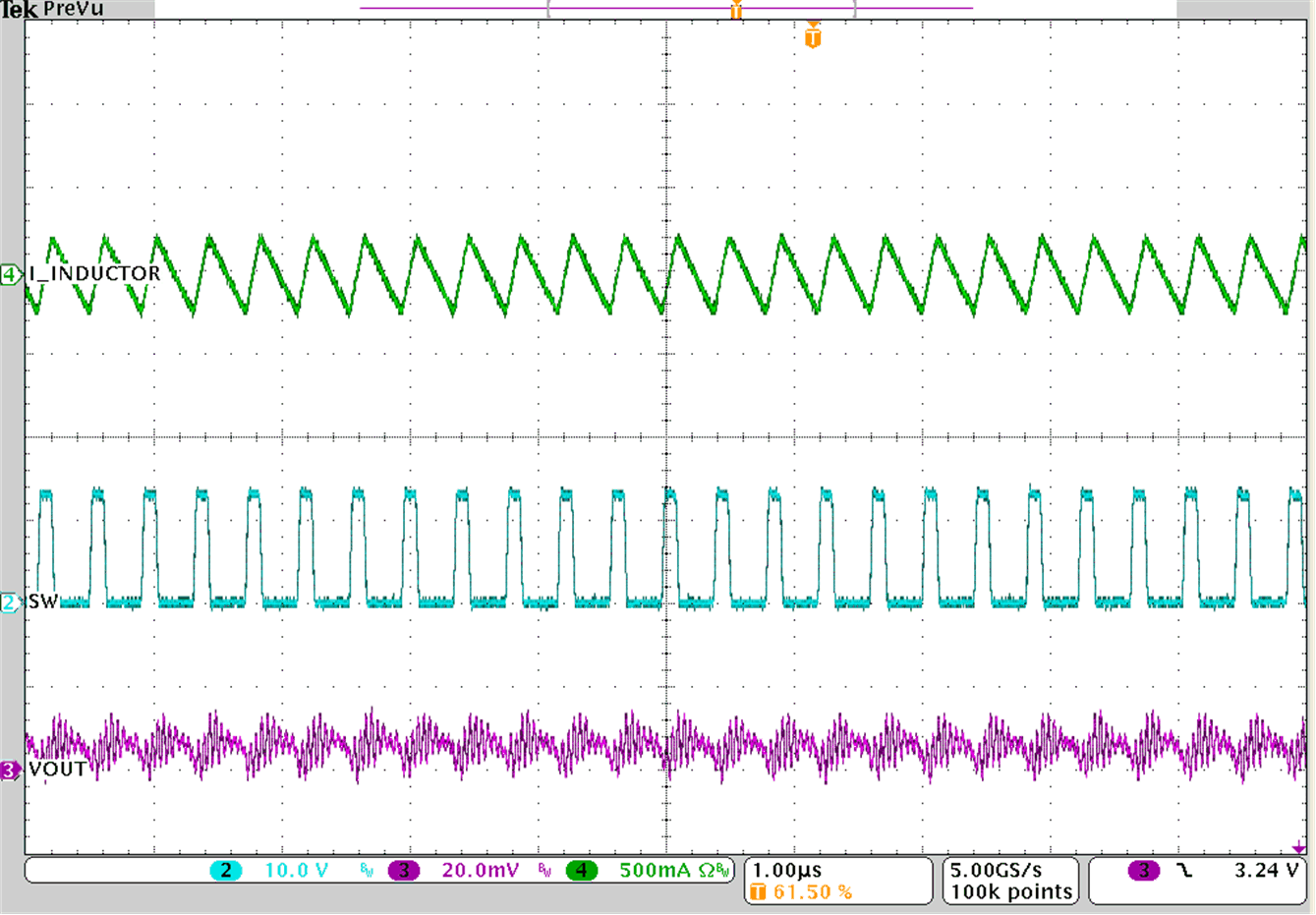

Figure 7-53 Typical Operation
VIN = 12V 2.5MHz Auto PFM/PWM Io = 10mA
VOUT = 3.0V L = 2.2μH TA = 25°C
Figure 7-55 Typical Operation
VIN = 12V 1MHz Auto PFM/PWM Io = 0A to1A
VOUT = 3.3V L = 2.2μH TA = 25°C
Figure 7-57 PSM to PWM Transition
VIN = 12V 2.5MHz FPWM Io = 5mA to 1A
VOUT = 3.3V TA = 25°C
Figure 7-59 Load Transient Response - Rising Edge
VIN = 12V 1MHz Auto PFM/PWM Io = 5mA to 1A to 5mA
VOUT = 3.3V TA = 25°C
Figure 7-61 Load Transient Response
VIN = 11V to 6V 2.5MHz Auto PFM/PWM Io = 1A
VOUT = 3.3V TA = 25°C
Figure 7-63 Line Transient Response - Falling
VIN = 12V Ouput Discharge = Yes
VOUT = 5V TA = 25°C
Figure 7-65 Output Discharge Function - Enabled
FPWM L = 2.2μH Fsw = 1MHz
Figure 7-8 Efficiency vs Output Current VOUT = 5V
FPWM L = 1μH Fsw = 2.5MHz
Figure 7-10 Efficiency vs Output Current VOUT = 5V
FPWM L = 2.2μH Fsw = 1MHz
Figure 7-12 Efficiency vs Output Current VOUT = 3.3V
FPWM L = 1μH Fsw = 2.5MHz
Figure 7-14 Efficiency vs Output Current VOUT = 3.3V
FPWM L = 2.2μH Fsw = 1MHz
Figure 7-16 Efficiency vs Output Current VOUT = 1.8V
FPWM L = 1μH Fsw = 2.5MHz
Figure 7-18 Efficiency vs Output Current VOUT = 1.8V
FPWM L = 2.2μH Fsw = 1MHz
Figure 7-20 Efficiency vs Output Current VOUT = 1.2V
FPWM L = 1μH Fsw = 2.5MHz
Figure 7-22 Efficiency vs Output Current VOUT = 1.2V
FPWM L = 2.2μH Fsw = 1MHz
Figure 7-24 Switching Frequency vs Input Voltage VOUT = 5V
FPWM L = 1μH Fsw = 2.5MHz
Figure 7-26 Switching Frequency vs Input Voltage VOUT = 5V
FPWM L = 2.2μH Fsw = 1MHz
Figure 7-28 Switching Frequency vs Input Voltage VOUT = 3.3V
FPWM L = 1μH Fsw = 2.5MHz
Figure 7-30 Switching Frequency vs Input Voltage VOUT = 3.3V
FPWM L = 2.2μH Fsw = 1MHz
Figure 7-32 Switching Frequency vs Input Voltage VOUT = 1.8V
FPWM L = 1μH Fsw = 2.5MHz
Figure 7-34 Switching Frequency vs Input Voltage VOUT = 1.8V
FPWM L = 2.2μH Fsw = 1MHz
Figure 7-36 Switching Frequency vs Input Voltage VOUT = 1.2V
FPWM L = 1μH Fsw = 2.5MHz
Figure 7-38 Switching Frequency vs Input Voltage VOUT = 1.2V
FPWM L = 1μH Fsw = 2.5MHz
Figure 7-40 Output Voltage vs Output Current VOUT = 1.8V
VIN = 12V 1MHz Auto PFM/PWM Io = 1A
VOUT = 1.2V TA = 25°C
Figure 7-42 Start-up Timing
VIN = 12V 2.5MHz Auto PFM/PWM Io = 1A
VOUT = 5V TA = 25°C
Figure 7-44 Start-up Timing
VIN = 12V 1MHz FPWM Io = 0.1A
VOUT = 1.2V L = 2.2μH TA = 25°C
Figure 7-46 Output Voltage Ripple
VIN = 12V 2.5MHz FPWM Io = 0.1A
VOUT = 1.2V L = 2.2μH TA = 25°C
Figure 7-48 Output Voltage Ripple
VIN = 12V 1MHz FPWM Io = 1A
VOUT = 1.2V L = 2.2μH TA = 25°C
Figure 7-50 Output Voltage Ripple
VIN = 12V 2.5MHz FPWM Io = 1A
VOUT = 1.2V L = 2.2μH TA = 25°C
Figure 7-52 Output Voltage Ripple
VIN = 12V 2.5MHz FPWM Io = 10mA
VOUT = 3.0V L = 2.2μH TA = 25°C
Figure 7-54 Typical Operation
VIN = 12V 1MHz Auto PFM/PWM Io = 1A
VOUT = 3.0V L = 2.2μH TA = 25°C
Figure 7-56 Typical Operation
VIN = 12V 2.5MHz FPWM Io = 5mA to 1A to 5mA
VOUT = 3.3V TA = 25°C
Figure 7-58 Load Transient Response
VIN = 12V 2.MHz FPWM Io = 1A to 5mA
VOUT = 3.3V TA = 25°C
Figure 7-60 Load Transient Response - Falling Edge
VIN = 6V to 11V 2.5MHz Auto PFM/PWM Io = 1A
VOUT = 3.3V TA = 25°C
Figure 7-62 Line Transient Response - Rising
VIN = 12V Ouput Discharge = No
VOUT = 5V TA = 25°C
Figure 7-64 Output Discharge Function - Disabled
