8.8.15.2 Operational Amplifier Switches

over operating free-air temperature range (unless otherwise noted)
PARAMETERTEST CONDITIONSMINTYPMAXUNIT
VCCSupply voltage2.23.6V
ILKGInput leakage(1)TA = 0°C to 60°C±0.25nA
TA = –40°C to 85°C±50
IINInput current through switch0100µA
RONSwitch ON resistance with switch closed(2)IIN = 100 µA,
TA = –40°C to 85°C		1kΩ
ROFFSwitch OFF resistance with switch openTA = –40°C to 85°C,
Input signal frequency < 100 Hz		100MΩ
tON/OFFEnable or disable timeTA = –40°C to 85°C0.45µs
(1) This leakage includes all leakage seen at the device pin, not only leakage caused by the switch itself. It assumes a total of five switches present and a shared digital I/O.
(2) The resistance varies with input voltage range. This resistance represents the peak resistance at the worst case input range (see Figure 8-29).
Average of three typical devices
Figure 8-28 OA Switch Input Leakage Current vs Temperature
Average of three typical devices

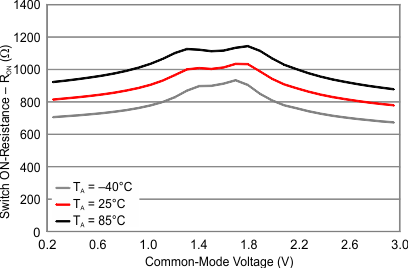

Figure 8-29 OA Switch RON vs Common-Mode Voltage
