8.3 Recommended Operating Conditions

Typical values are specified at VCC = 3.3 V and TA = 25°C (unless otherwise noted)
MIN NOM MAX UNIT
VCC Supply voltage during program execution and flash programming (AVCC  =  DVCC1 = DVCC2 = DVCC3  = DVCC = VCC) (1) (2) (3) PMMCOREV = 0 1.8 3.6 V
PMMCOREV = 0, 1 2.0 3.6
PMMCOREV = 0, 1, 2 2.2 3.6
PMMCOREV = 0, 1, 2, 3 2.4 3.6
VCC,USB (2) Supply voltage during USB operation, USB PLL disabled (USB_EN = 1, UPLLEN = 0) PMMCOREV = 0 1.8 3.6 V
PMMCOREV = 0, 1 2.0 3.6
PMMCOREV = 0, 1, 2 2.2 3.6
PMMCOREV = 0, 1, 2, 3 2.4 3.6
Supply voltage during USB operation, USB PLL enabled (4) (USB_EN = 1, UPLLEN = 1) PMMCOREV = 2 2.2 3.6
PMMCOREV = 2, 3 2.4 3.6
VSS Supply voltage (AVSS1 = AVSS2 = AVSS3 = DVSS1 = DVSS2 = DVSS3  =  VSS) 0 V
VBAT,RTC Backup-supply voltage with RTC operational TA = 0°C to 85°C 1.55 3.6 V
TA = –40°C to 85°C 1.70 3.6
VBAT,MEM Backup-supply voltage with backup memory retained TA = –40°C to 85°C 1.20 3.6 V
TA Operating free-air temperature I version –40 85 °C
TJ Operating junction temperature I version –40 85 °C
CBAK Capacitance at pin VBAK 1 4.7 10 nF
CVCORE Capacitor at VCORE(5) 470 nF
CDVCC/ CVCORE Capacitor ratio of DVCC to VCORE 10
fSYSTEM Processor frequency (maximum MCLK frequency) (6) (7) (see Figure 8-1) PMMCOREV = 0,
1.8 V ≤ VCC ≤ 3.6 V (default condition)		 0 8.0 MHz
PMMCOREV = 1,
2 V ≤ VCC ≤ 3.6 V		 0 12.0
PMMCOREV = 2,
2.2 V ≤ VCC ≤ 3.6 V		 0 16.0
PMMCOREV = 3,
2.4 V ≤ VCC ≤ 3.6 V		 0 20.0
fSYSTEM_USB Minimum processor frequency for USB operation 1.5 MHz
USB_wait Wait state cycles during USB operation 16 cycles
(1) TI recommends powering AVCC and DVCC from the same source. A maximum difference of 0.3 V between AVCC and DVCC can be tolerated during power up and operation.
(2) Some modules may have reduced recommended ranges of operation.
(3) The minimum supply voltage is defined by the supervisor SVS levels when it is enabled. See the threshold parameters in Section 8.8.6.2 for the exact values and further details.
(4) USB operation with USB PLL enabled requires PMMCOREV ≥ 2 for proper operation.
(5) A capacitor tolerance of ±20% is required.
(6) The MSP430 CPU is clocked directly with MCLK. Both the high and low phase of MCLK must not exceed the pulse duration of the specified maximum frequency.
(7) Modules may have a different maximum input clock specification. See the specification of the respective module in this data sheet.

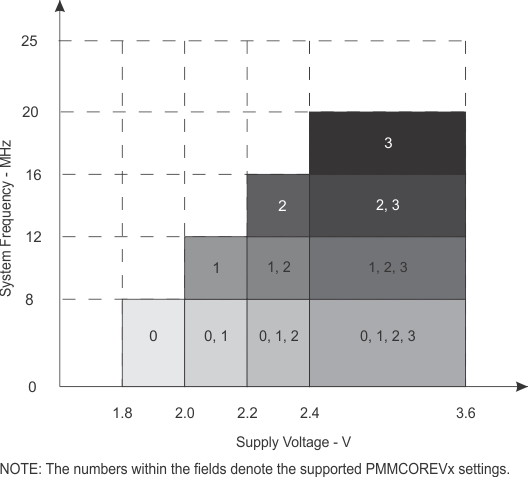

GUID-FC5A2055-579D-449F-AB1B-4889B6B960AC-low.gif Figure 8-1 Frequency vs Supply Voltage
