Output Clamp

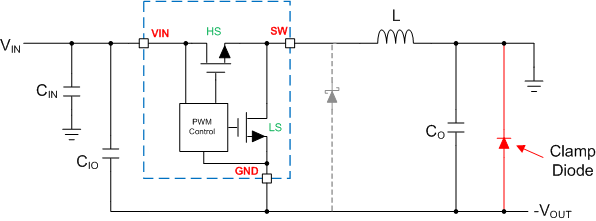

Many times the negative supply is used in conjunction with a positive rail to supply a common load such as an op amp. If one of the supplies starts up before the other, it may try to pull the other supply to its level, preventing proper start-up of the slower regulator. Also, with the presence of CIO, the negative output may be momentarily pulled slightly positive when the input supply is turned on. Both of these issues can be solved by placing a diode clamp across the negative output as shown in Figure 7-4.

GUID-B4150CB9-1448-40A1-A507-BCD09DAFC039-low.gif Figure 7-4 Output Clamp Diode
