5 Component Selection for the IBB

The required external components for an IBB are the same as that for a buck, with the exception of an extra input capacitor as shown in Figure 5-1.

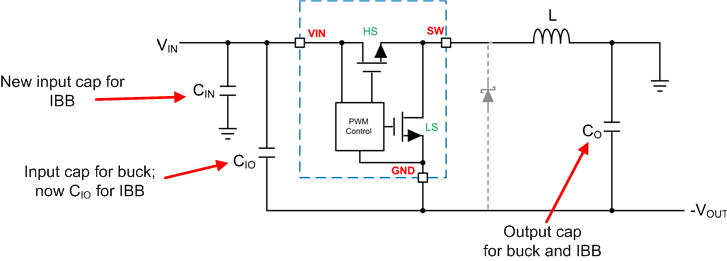

GUID-FA4D7842-A11E-4641-A283-D672BC92776D-low.gifFigure 5-1 IBB External Components
