B Package Data Sheets

Table B-1 shows TI’s strategic package lineup, followed by package data sheets for many of the package families offered as standard products by Texas Instruments. As new packages are added, they will be placed on the strategic package lineup. Contact your TI field sales office for information on the most current offerings. Samples are available for all packages shown in Table B-1.

Table B-1 TI’s Strategic Package Line-Up

nFBGA Package Product Guide
Pitch (mm)	Package Size (mm)
Pitch (mm)	6×6	7×7	8×8	10×10	12×12	13×13	14×14	16×16
0.8					145ZWS			361ZWT
0.8
0.65			113ZVD
0.65
0.5	87ZVW	72ZST	195ZWV	225ZWF	289ZVL	289ZWE	447ZAC

		143ZWU		241ZWG	293ZVL		447ZAF

		143ZZC			318ZVL

		152ZZB			325ZVL

					385ZWK

					385ZWM

0.4		209ZXN		241ZWJ

				289ZWJ

				360ZWJ

Table B-2 TI’s Strategic Small Body Package Line-Up

nFBGA Package Product Guide
Pitch (mm)	Package Size (mm)
	2 x 1.4	2 x 2	2 x 2.5	2.45 x 2.45	2.5 x 3
0.4
0.5

Figure B-1 87ZVW Package Outline (6 x 6mm, 0.5mm pitch)

Figure B-2 72ZST Package Outline (7 x 7mm, 0.5mm pitch)

Figure B-3 143ZZC Package Outline (7 x 7mm, 0.5mm pitch)

Figure B-4 143ZWU Package Outline (7 x 7mm, 0.5mm pitch)

Figure B-5 152ZZB Package Outline (7 x 7mm, 0.5mm pitch)

Figure B-6 209ZXN Package Outline (7 x 7mm, 0.4mm pitch)

Figure B-7 113ZVD Package Outline (8 x 8mm, 0.65mm pitch)

Figure B-8 195ZWV Package Outline (8 x 8mm, 0.5mm pitch)

Figure B-9 225ZWF Package Outline (10 x 10mm, 0.5mm pitch)

Figure B-10 241ZWG Package Outline (10 x 10mm, 0.5mm pitch)

Figure B-11 241ZWJ Package Outline (10x10mm, 0.4mm pitch)

Figure B-12 289ZWJ Package Outline (10 x 10mm, 0.4mm pitch)

Figure B-13 360ZWJ Package Outline (10 x 10mm, 0.4mm pitch)

Figure B-14 145ZWS Package Outline (12 x 12mm, 0.8mm pitch)

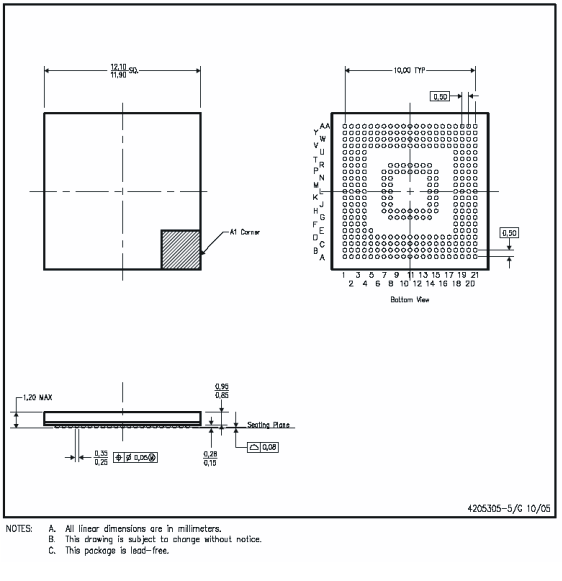

Figure B-15 289ZVL Package Outline (12 x 12mm, 0.5mm pitch)

Figure B-16 293ZVL Package Outline (12 x 12mm, 0.5mm pitch)

Figure B-17 318ZVL Package Outline (12 x 12mm, 0.5mm pitch)

Figure B-18 325ZVL Package Outline (12 x 12mm, 0.5mm pitch)

Figure B-19 385ZWM Package Outline (12 x 12mm, 0.5mm pitch)

Figure B-20 385ZWK Package Outline (12 x 12mm, 0.5mm pitch)

Figure B-21 289ZWE Package Outline (13 x 13mm, 0.5mm pitch)

Figure B-22 447ZAC Package Outline (14 x 14mm, 0.5mm pitch)

Figure B-23 447ZAF Package Outline (14 x 14mm, 0.5mm pitch)

Figure B-24 361ZWT Package Outline (16 x 16mm, 0.8mm pitch)

Figure B-25 11ZWA Package Outline (2 x 1.4mm, 0.5mm pitch)

Figure B-26 8 NMB Package Outline (2 x 2mm, 0.5mm pitch)

Figure B-27 12NMN Package Outline (2 x 2.5mm, 0.5mm pitch)

Figure B-28 20NME Package Outline (2.5 x 3 mm, 0.5mm pitch)

Figure B-29 36ZEC Package Outline (2.45 x 2.45 mm, 0.4mm pitch)
