7.5.1.2 ESD Spark Gap

Protect the SMBus clock, data, and other communication lines from ESD with a spark gap at the connector. The pattern in Figure 7-7 is recommended, with 0.2mm spacing between the points.

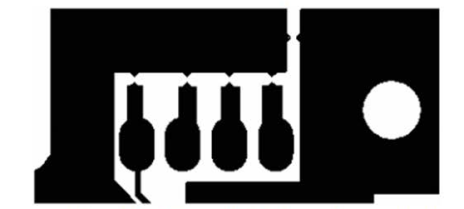

BQ40Z80 Recommended Spark-Gap Pattern Helps Protect Communication Lines from ESDFigure 7-8 Recommended Spark-Gap Pattern Helps Protect Communication Lines from ESD
