DLP473TE LPSDR Switching Parameters
The low-speed interface is LPSDR and adheres to the Electrical Characteristics and AC/DC Operating Conditions table in JEDEC Standard No. 209B, Low Power Double Data Rate (LPDDR) JESD209B.
Figure 5-3 LPSDR Switching Parameters

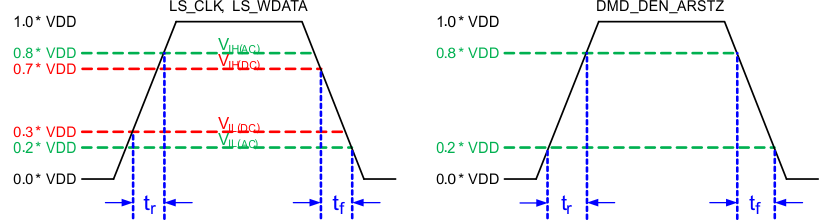

DLP473TE LPSDR Input Rise and Fall Slew RateFigure 5-4 LPSDR Input Rise and Fall Slew Rate
DLP473TE SubLVDS Input Rise and Fall Slew RateFigure 5-5 SubLVDS Input Rise and Fall Slew Rate
DLP473TE Window Time Derating ConceptFigure 5-6 Window Time Derating Concept
DLP473TE SubLVDS Switching ParametersFigure 5-7 SubLVDS Switching Parameters

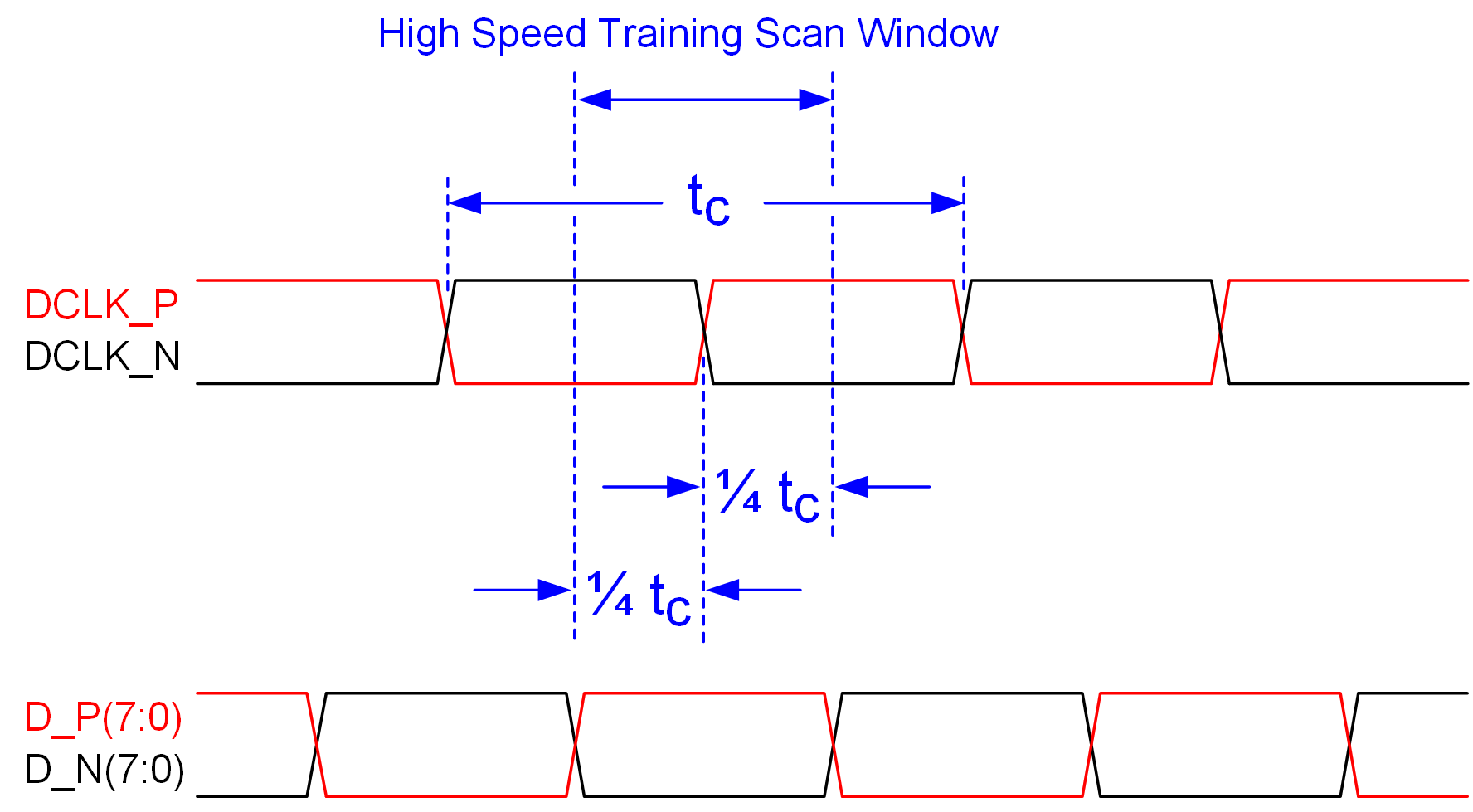

DLP473TE High-Speed Training Scan Window
Note: Refer to the timing requirements for details.
Figure 5-8 High-Speed Training Scan Window
DLP473TE SubLVDS Voltage ParametersFigure 5-9 SubLVDS Voltage Parameters
DLP473TE SubLVDS Waveform ParametersFigure 5-10 SubLVDS Waveform Parameters

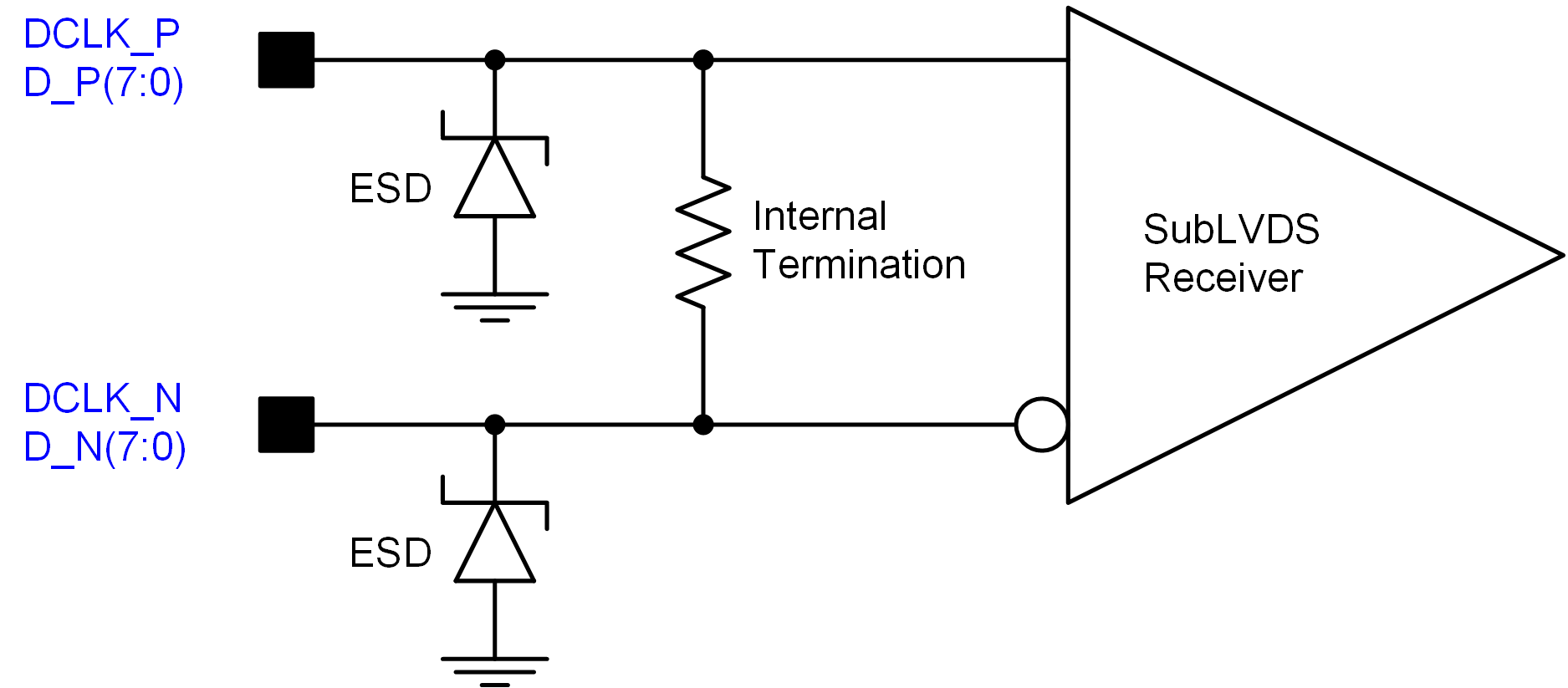

DLP473TE SubLVDS Equivalent Input CircuitFigure 5-11 SubLVDS Equivalent Input Circuit

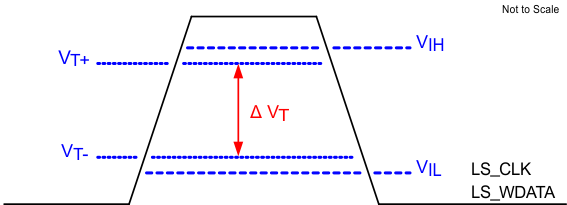

DLP473TE LPSDR Input HysteresisFigure 5-12 LPSDR Input Hysteresis

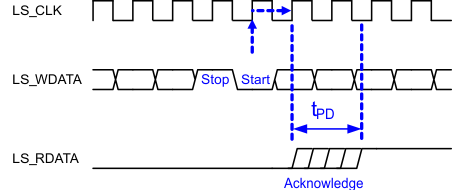

DLP473TE LPSDR Read OutFigure 5-13 LPSDR Read Out
DLP473TE Test Load Circuit for Output Propagation Measurement
See the timing section for more information.
Figure 5-14 Test Load Circuit for Output Propagation Measurement
