4 Pin Configuration and Functions

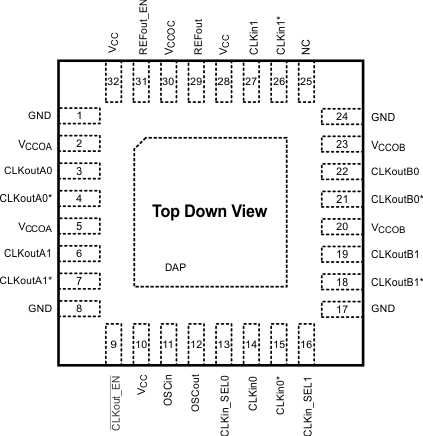

LMK00334 RTV Package 32-Pin WQFN Top ViewFigure 4-1 RTV Package 32-Pin WQFN Top View
Table 4-1 Pin Functions
PIN TYPE(1)(4) DESCRIPTION
NAME NO.
DAP DAP GND Die Attach Pad. Connect to the PCB ground plane for heat dissipation.
CLKin_SEL0 13 I Clock input selection pins (3)
CLKin_SEL1 16 I Clock input selection pins (3)
CLKin0 14 I Universal clock input 0 (differential/single-ended)
CLKin0* 15 I Universal clock input 0 (differential/single-ended)
CLKin1 27 I Universal clock input 1 (differential/single-ended)
CLKin1* 26 I Universal clock input 1 (differential/single-ended)
CLKout_EN 9 I Bank A and Bank B low active output buffer enable. (3)
CLKoutA0 3 O Differential clock output A0.
CLKoutA0* 4 O Differential clock output A0.
CLKoutA1 6 O Differential clock output A1.
CLKoutA1* 7 O Differential clock output A1.
CLKoutB1 19 O Differential clock output B1.
CLKoutB1* 18 O Differential clock output B1.
CLKoutB0 22 O Differential clock output B0.
CLKoutB0* 21 O Differential clock output B0.
GND 1, 8 17, 24 GND Ground
NC 25 — Not connected internally. Pin can be floated, grounded, or otherwise tied to any potential within the Supply Voltage range stated in the Absolute Maximum Ratings.
OSCin 11 I Input for crystal. Can also be driven by a XO, TCXO, or other external single-ended clock.
OSCout 12 O Output for crystal. Leave OSCout floating if OSCin is driven by a single-ended clock.
REFout 29 O LVCMOS reference output. Enable output by pulling REFout_EN pin high.
REFout_EN 31 I REFout enable input. Enable signal is internally synchronized to selected clock input. (3)
VCC 10, 28, 32 PWR Power supply for Core and Input Buffer blocks. The VCC supply operates from 3.3V. Bypass with a 0.1µF, low-ESR capacitor placed very close to each VCC pin.
VCCOA 2, 5 PWR Power supply for Bank A Output buffers. VCCOA operates from 3.3V or 2.5V. The VCCOA pins are internally tied together. Bypass with a 0.1µF, low-ESR capacitor placed very close to each VCCO pin. (2)
VCCOB 20, 23 PWR Power supply for Bank B Output buffers. VCCOB operates from 3.3V or 2.5V. The VCCOB pins are internally tied together. Bypass with a 0.1µF, low-ESR capacitor placed very close to each VCCO pin. (2)
VCCOC 30 PWR Power supply for REFout buffer. VCCOC operates from 3.3V or 2.5V. Bypass with a 0.1µF, low-ESR capacitor placed very close to each VCCO pin. (2)
(1) I = Input, O = Output, GND = Ground, PWR = Power
(2) The output supply voltages or pins (VCCOA, VCCOB, and VCCOC) is called VCCO in general when no distinction is needed, or when the output supply can be inferred from the output bank/type.
(3) CMOS control input with internal pulldown resistor.
(4) Any unused output pins must be left floating with minimum copper length (see note in Clock Outputs), or properly terminated if connected to a transmission line, or disabled/Hi-Z if possible. See Clock Outputs for output configuration and Termination and Use of Clock Drivers for output interface and termination techniques.
