5.7 Typical Characteristics

Unless otherwise specified: VCC = 3.3V, VCCO = 3.3V, TA = 25°C, CLKin driven differentially, input slew rate ≥ 3V/ns.

LMK00334 HCSL Output Swing at 250MHz
Figure 5-1 HCSL Output Swing at 250MHz
LMK00334 Noise Floor vs CLKin Slew Rate at 100MHz
Fclk = 100MHz Foffset = 20MHz
Figure 5-3 Noise Floor vs CLKin Slew Rate at 100MHz

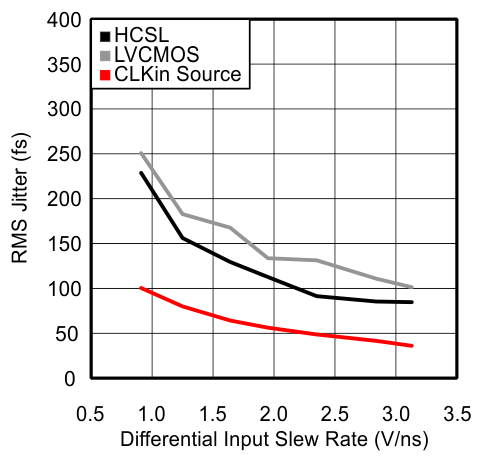

LMK00334 RMS Jitter vs CLKin Slew Rate at 100MHz
Fclk = 100MHz Int. BW = 1 to 20MHz
Figure 5-5 RMS Jitter vs CLKin Slew Rate at 100MHz
LMK00334 PSRR vs Ripple Frequency at 156.25MHz
Fclk = 156.25MHz Vccco Ripple = 100mVpp
Figure 5-7 PSRR vs Ripple Frequency at 156.25MHz

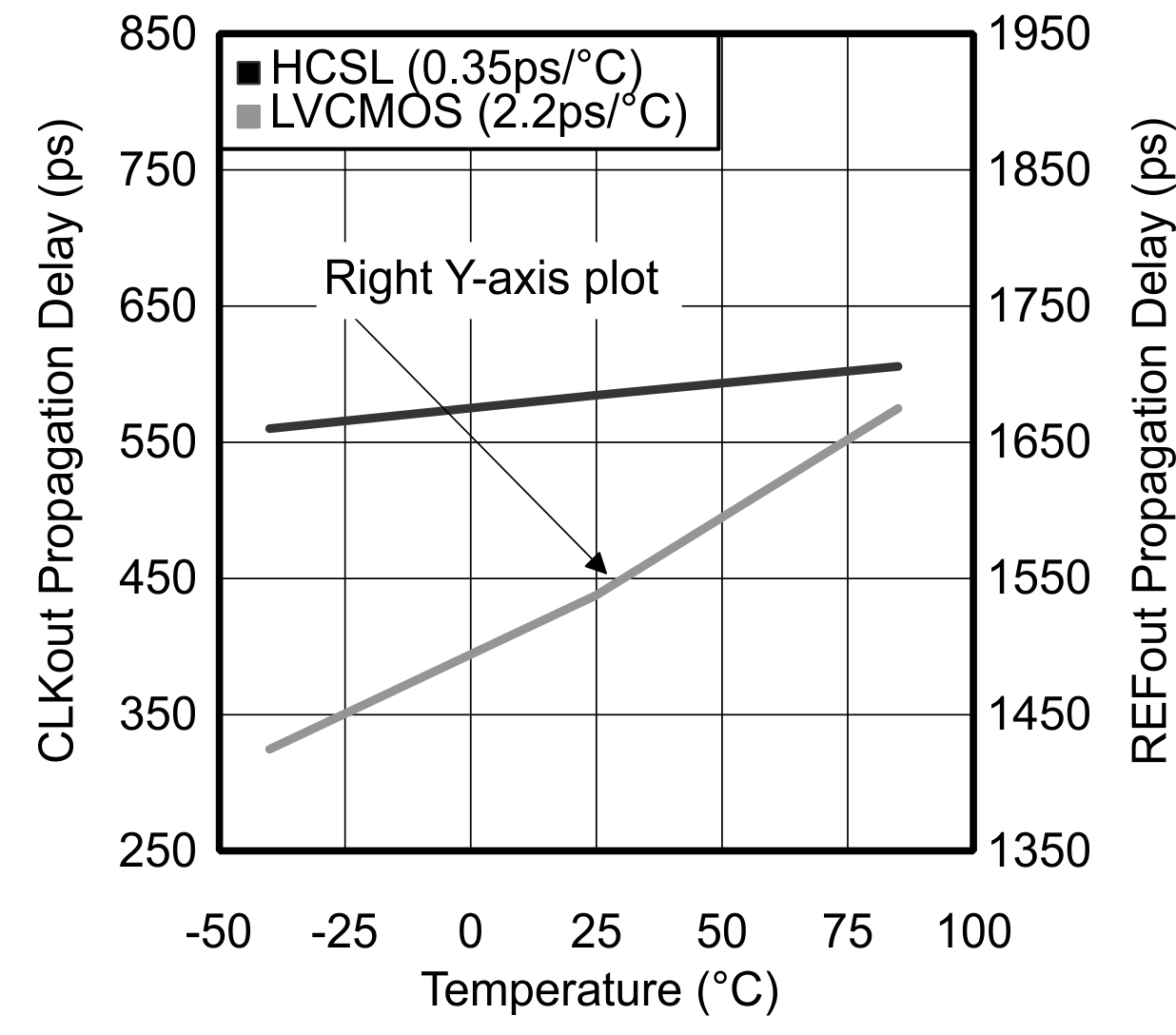

LMK00334 Propagation Delay vs Temperature
Figure 5-9 Propagation Delay vs Temperature
LMK00334 HCSL Phase Noise at 100MHzFigure 5-11 HCSL Phase Noise at 100MHz
LMK00334 LVCMOS Output Swing at 250MHz
Figure 5-2 LVCMOS Output Swing at 250MHz
LMK00334 Noise Floor vs CLKin Slew Rate at 156.25MHz
Fclk = 156.25MHz Foffset = 20MHz
Figure 5-4 Noise Floor vs CLKin Slew Rate at 156.25MHz

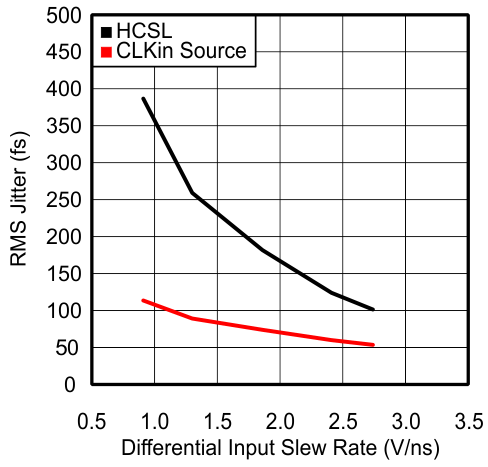

LMK00334 RMS Jitter vs CLKin Slew Rate at 156.25MHz
Fclk = 156.25MHz Int. BW = 1 to 20MHz
Figure 5-6 RMS Jitter vs CLKin Slew Rate at 156.25MHz
LMK00334 PSRR vs Ripple Frequency at 312.5MHz
Fclk = 312.5MHz Vccco Ripple = 100mVpp
Figure 5-8 PSRR vs Ripple Frequency at 312.5MHz
LMK00334 Crystal Power Dissipation vs RLIM
Figure 5-10 Crystal Power Dissipation vs RLIM
