7.2 Output Clock Test Configurations

This section describes the characterization test setup for different output formats.

LMK5C23208A LVCMOS Output Time Domain Test Configuration Figure 7-3 LVCMOS Output Time Domain Test Configuration
LMK5C23208A LVCMOS Output Phase Domain Test ConfigurationFigure 7-4 LVCMOS Output Phase Domain Test Configuration
LMK5C23208A HSDS Output Time Domain Test Configuration Figure 7-5 HSDS Output Time Domain Test Configuration
LMK5C23208A HSDS Output Phase Domain Test Configuration Figure 7-6 HSDS Output Phase Domain Test Configuration
LMK5C23208A HCSL Output Time Domain Test Configuration Figure 7-7 HCSL Output Time Domain Test Configuration
LMK5C23208A HCSL Output Phase Domain Test Configuration Figure 7-8 HCSL Output Phase Domain Test Configuration

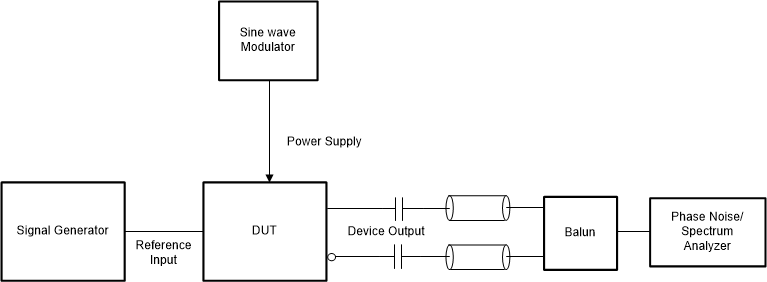

LMK5C23208A Power Supply Noise Rejection (PSNR) Test Configuration
Single-side band spur level measured in dBc with a known noise amplitude and frequency injected onto the device power supply.
Figure 7-9 Power Supply Noise Rejection (PSNR) Test Configuration
