7.2 Recommended Operating Conditions

typical values are specified at VCC = 3.3 V and TA = 25°C (unless otherwise noted)
MIN NOM MAX UNIT
VCC Supply voltage during program execution and flash programming
(AVCC = DVCC1/2/3/4 = DVCC) (1) (2)		 1.8 3.6 V
VSS Supply voltage (AVSS = DVSS1/2/3/4 = DVSS) 0 V
TA Operating free-air temperature Q temperature -40 125 °C
M temperature -55 125
TJ Operating junction temperature Q temperature -40 125 °C
M temperature -55 125
CVCORE Recommended capacitor at VCORE 470 nF
CDVCC/ CVCORE Capacitor ratio of DVCC to VCORE 10
fSYSTEM Processor frequency (maximum MCLK frequency) (3) (4) (see Figure 7-2) PMMCOREVx = 0, 1.8 V ≤ VCC ≤ 3.6 V 0 8.0 MHz
PMMCOREVx = 1, 2.0 V ≤ VCC ≤ 3.6 V 0 12.0
PMMCOREVx = 2, 2.2 V ≤ VCC ≤ 3.6 V 0 20.0
PMMCOREVx = 3, 2.4 V ≤ VCC ≤ 3.6 V 0 25.0
(1) It is recommended to power AVCC and DVCC from the same source. A maximum difference of 0.3 V between AVCC and DVCC can be tolerated during power up and operation.
(2) The minimum supply voltage is defined by the supervisor SVS levels when it is enabled. See the SVS threshold parameters for the exact values and further details.
(3) The MSP430 CPU is clocked directly with MCLK. Both the high and low phases of MCLK must not exceed the pulse duration of the specified maximum frequency.
(4) Modules may have a different maximum input clock specification. See the specification of the respective module in this data sheet.

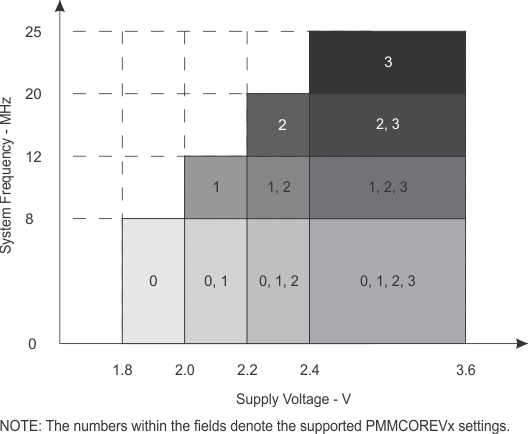

GUID-F90CC47E-85CB-4FEF-A2A2-229BF74B9625-low.gif Figure 7-2 Frequency vs Supply Voltage
