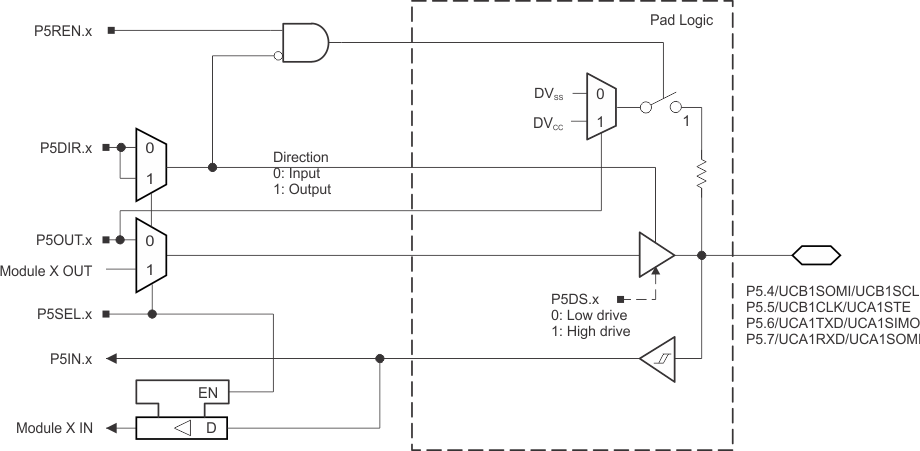

8.9.18.8 Port P5, P5.4 to P5.7, Input/Output With Schmitt Trigger

Table 8-48 Port P5 (P5.4 to P5.7) Pin Functions
PIN NAME (P5.x) x FUNCTION CONTROL BITS/SIGNALS (1)
P5DIR.x P5SEL.x
P5.4/UCB1SOMI/UCB1SCL 4 P5.4 (I/O) I: 0; O: 1 0
UCB1SOMI/UCB1SCL (2) (3) X 1
P5.5/UCB1CLK/UCA1STE 5 P5.5 (I/O) I: 0; O: 1 0
UCB1CLK/UCA1STE (2) (4) X 1
P5.6/UCA1TXD/UCA1SIMO 6 P5.6 (I/O) I: 0; O: 1 0
UCA1TXD/UCA1SIMO (2) X 1
P5.7/UCA1RXD/UCA1SOMI 7 P5.7 (I/O) I: 0; O: 1 0
UCA1RXD/UCA1SOMI (2) X 1
(1) X = Don't care
(2) The pin direction is controlled by the USCI module.
(3) If the I2C functionality is selected, the output drives only the logical 0 to VSS level.
(4) UCB1CLK function takes precedence over UCA1STE function. If the pin is required as UCB1CLK input or output, USCI A1 is forced to 3-wire SPI mode if 4-wire SPI mode is selected.
