6.1 Pin Diagram

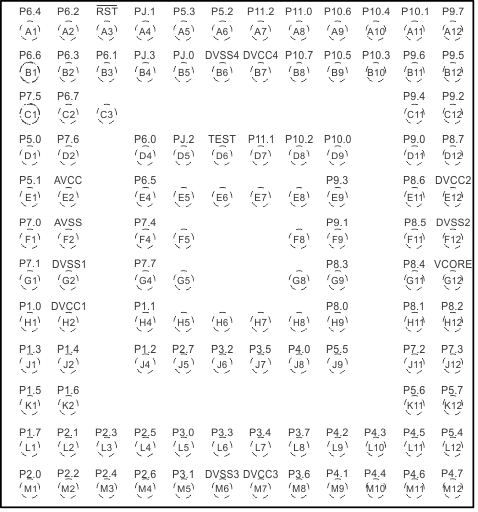

Figure 6-1 shows the pinout for the 113-pin ZCA, GCA, and ZQW packages. Only the default signal names are shown here; for all multiplexed signals, see Section 6.2.

GUID-18A8894F-AF84-432C-A90D-705AF3ABAAF5-low.gif Figure 6-1 113-Pin ZCA, GCA or ZQW Package (Top View)
