7.13 Typical Characteristics – Outputs, Full Drive Strength (PxDS.y = 1)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

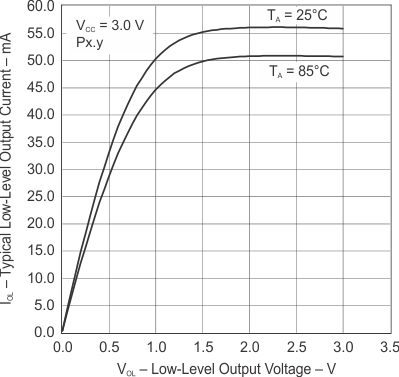

GUID-6F64DAE2-2E63-4131-8FA1-D93E964D41E0-low.gifFigure 7-7 Typical Low-Level Output Current vs Low-Level Output Voltage
GUID-94266459-3D74-4088-8C63-3CC73004D503-low.gifFigure 7-9 Typical High-Level Output Current vs High-Level Output Voltage
GUID-1FED9538-A600-4DC0-9576-0A37107CBD4A-low.gifFigure 7-8 Typical Low-Level Output Current vs Low-Level Output Voltage

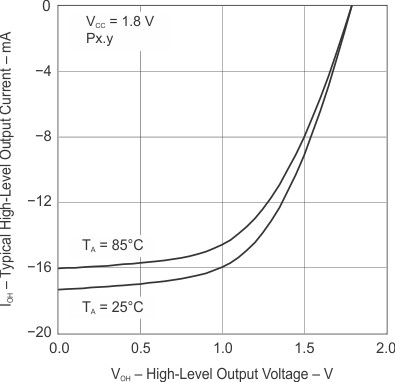

GUID-D17ACA2B-B603-4B0E-A9D7-655DD85975B9-low.gifFigure 7-10 Typical High-Level Output Current vs High-Level Output Voltage
