5.8 Typical Characteristics

at TA = 25°C, VDD = 5V (unless otherwise noted)

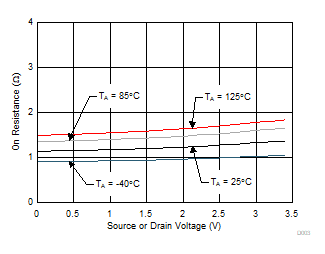

TMUX1511 On-Resistance vs Source or Drain Voltage
TA = 25°C
Figure 5-1 On-Resistance vs Source or Drain Voltage
TMUX1511 On-Resistance vs Source or Drain Voltage
VDD = 3.3V
Figure 5-3 On-Resistance vs Source or Drain Voltage
TMUX1511 Supply Current vs Logic Voltage
TA = 25°C
Figure 5-5 Supply Current vs Logic Voltage
TMUX1511 On-Leakage vs Source or Drain Voltage
TA = 25°C
Figure 5-7 On-Leakage vs Source or Drain Voltage

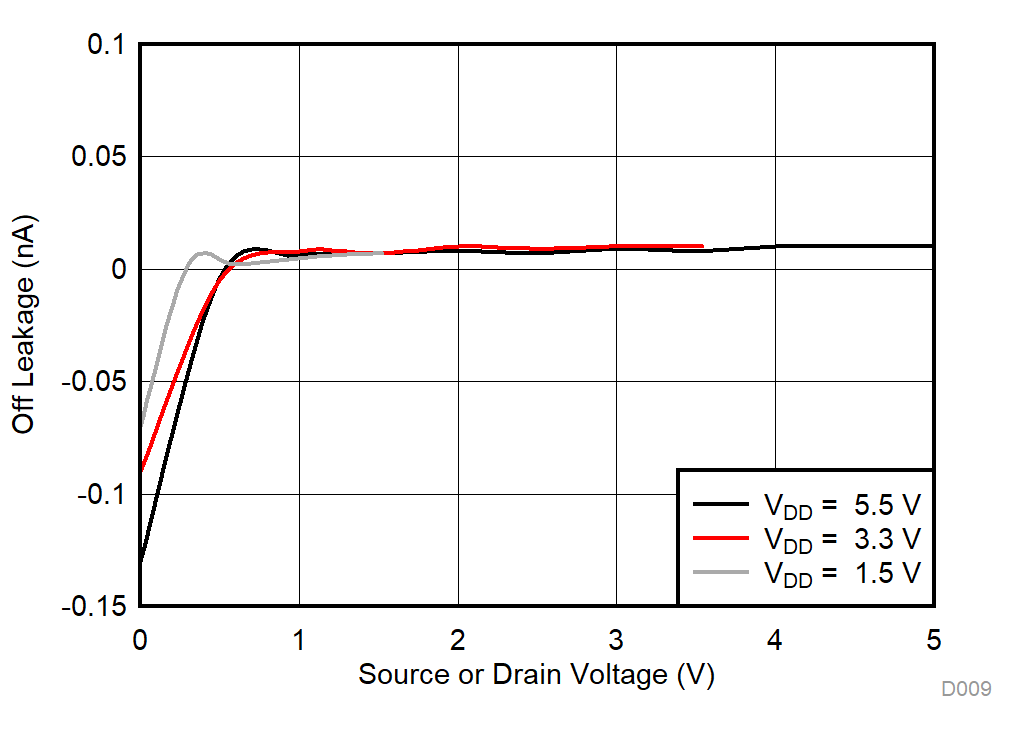

TMUX1511 Off-Leakage vs Source or Drain Voltage
TA = 25°C
Figure 5-9 Off-Leakage vs Source or Drain Voltage
TMUX1511 IPOFF Leakage vs Source or Drain Voltage
TA = 25°C
Figure 5-11 IPOFF Leakage vs Source or Drain Voltage
TMUX1511 IPOFF Leakage vs Temperature
VSource = 3.6V
VDrain = 0V
Figure 5-13 IPOFF Leakage vs Temperature

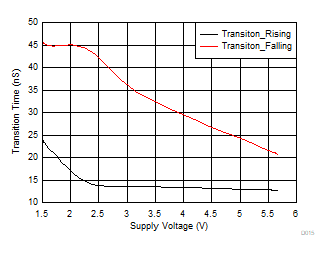

TMUX1511 TTRANSITION vs Supply Voltage
TA = 25°C
Figure 5-15 TTRANSITION vs Supply Voltage
TMUX1511 TON (VDD) and TOFF (VDD) vs Supply Voltage
TA = 25°C
Figure 5-17 TON (VDD) and TOFF (VDD) vs Supply Voltage
TMUX1511 Charge Injection vs Source or Drain Voltage
TA = 25°C
Figure 5-19 Charge Injection vs Source or Drain Voltage

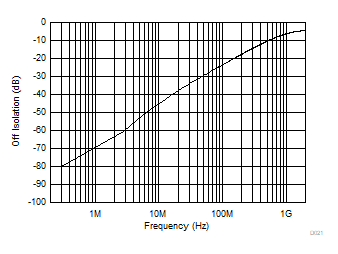

TMUX1511 Off Isolation vs Frequency
TA = 25°C
Figure 5-21 Off Isolation vs Frequency
TMUX1511 On-Resistance vs Source or Drain Voltage
VDD = 5.5V
Figure 5-2 On-Resistance vs Source or Drain Voltage
TMUX1511 On-Resistance vs Source or Drain Voltage
VDD = 1.5V
Figure 5-4 On-Resistance vs Source or Drain Voltage

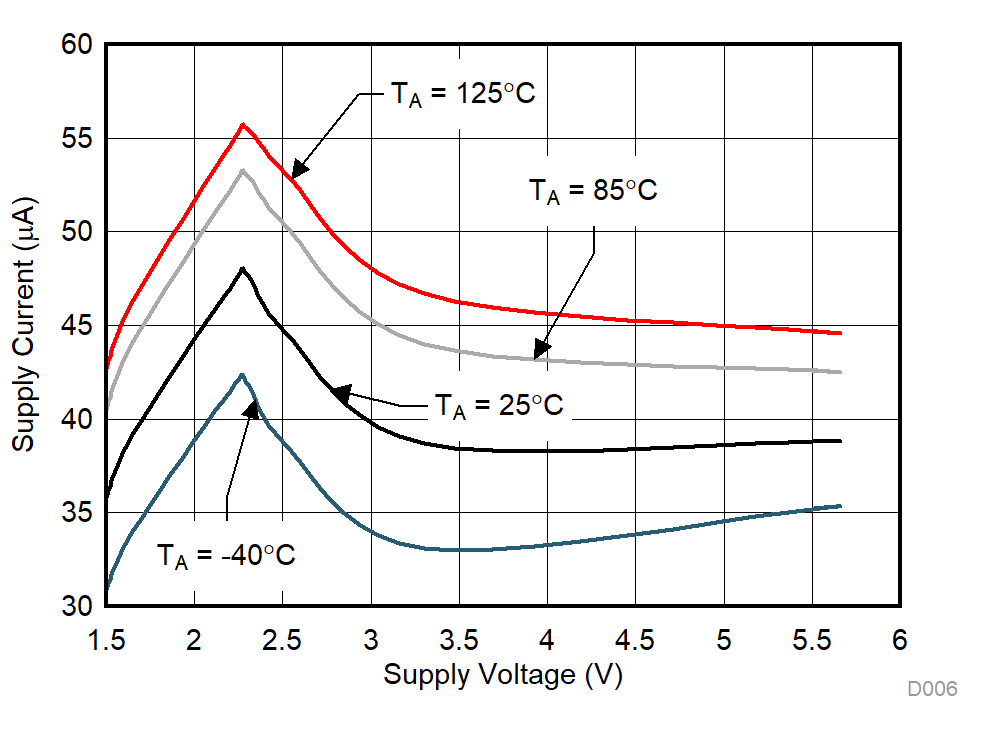

TMUX1511 Supply Current vs Supply VoltageFigure 5-6 Supply Current vs Supply Voltage
TMUX1511 On-Leakage vs TemperatureFigure 5-8 On-Leakage vs Temperature
TMUX1511 Off-Leakage vs TemperatureFigure 5-10 Off-Leakage vs Temperature
TMUX1511 IPOFF Leakage vs Temperature
VSource = 3V
Figure 5-12 IPOFF Leakage vs Temperature
TMUX1511 IPOFF Leakage vs Source or Drain Voltage
TA = 25°C
RL= 200Ω
Figure 5-14 IPOFF Leakage vs Source or Drain Voltage
TMUX1511 TTRANSITION vs Temperature
VDD = 5.5V
Figure 5-16 TTRANSITION vs Temperature
TMUX1511 Skew and Propagation Delay vs Supply Voltage
TA = 25°C
Figure 5-18 Skew and Propagation Delay vs Supply Voltage
TMUX1511 Capacitance vs Frequency
TA = 25°C
Figure 5-20 Capacitance vs Frequency
TMUX1511 On-Response vs Frequency
TA = 25°C
VDD = 1.5V to 5.5V
Figure 5-22 On-Response vs Frequency
