7.16.5.2.1 I2S Transmit Mode

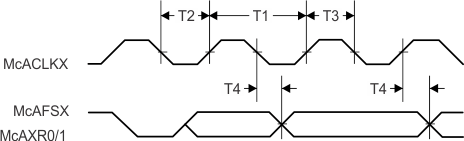

Figure 7-10 shows the timing diagram for the I2S transmit mode.

CC3235MODS CC3235MODSF CC3235MODAS CC3235MODASF I2S Transmit Mode Timing DiagramFigure 7-10 I2S Transmit Mode Timing Diagram

Table 7-17 lists the timing parameters for the I2S transmit mode.

Table 7-17 I2S Transmit Mode Timing Parameters
ITEMNAMEDESCRIPTIONMINMAXUNIT
T1fclk(1)Clock frequency9.216MHz
T2tLP(1)Clock low period1/2 fclkns
T3tHT(1)Clock high period1/2 fclkns
T4tOH(1)TX data hold time22ns
(1) The timing parameter assumes a maximum load of 20pF.
