7.8 Brownout and Blackout Conditions

The module enters a brownout condition whenever the input voltage dips below VBROWNOUT (see Figure 7-4 and Figure 7-5). This condition must be considered during design of the power supply routing, especially if operating from a battery. High-current operations, such as a TX packet or any external activity (not necessarily related directly to networking) can cause a drop in the supply voltage, potentially triggering a brownout. The resistance includes the internal resistance of the battery, contact resistance of the battery holder (four contacts for a 2× AA battery), and the wiring and PCB routing resistance.

Note:

When the module is in HIBERNATE state, brownout is not detected. Only blackout is in effect during HIBERNATE state.

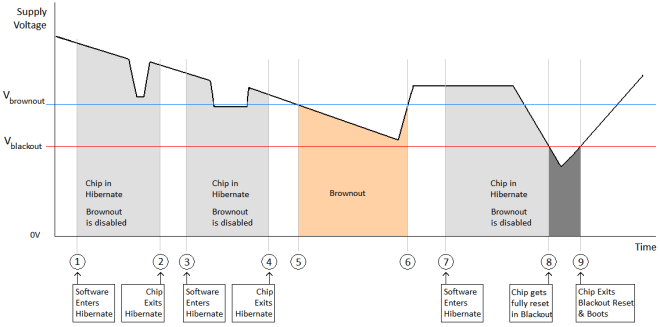

CC3235MODS CC3235MODSF CC3235MODAS CC3235MODASF Brownout and Blackout Levels (1 of 2)Figure 7-4 Brownout and Blackout Levels (1 of 2)



CC3235MODS CC3235MODSF CC3235MODAS CC3235MODASF Brownout and Blackout Levels (2 of 2)Figure 7-5 Brownout and Blackout Levels (2 of 2)

In the brownout condition, all sections of the device shut down within the module except for the Hibernate block (including the 32-kHz RTC clock), which remains on. The current in this state can reach approximately 400 µA.

The blackout condition is equivalent to a hardware reset event in which all states within the module are lost. Vbrownout = 2.1 V and Vblackout = 1.67 V

Table 7-5 lists the brownout and blackout voltage levels.

Table 7-5 Brownout and Blackout Voltage Levels
CONDITIONVOLTAGE LEVELUNIT
Vbrownout2.1V
Vblackout1.67V
