6.3.3.2 Buck in Resistor mode

If the external load requirement is less than 10mA, the inductor can be replaced with a resistor. In resistor mode the power is dissipated across the external resistor and the efficiency is lower than buck in inductor mode.

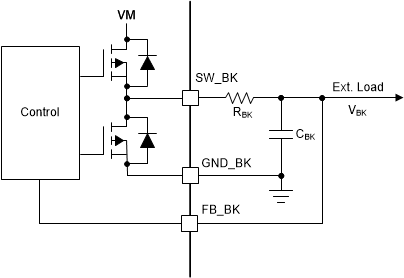

Figure 6-5 shows the connection of buck in resistor mode.

MCF8315D Buck (Resistor Mode)Figure 6-5 Buck (Resistor Mode)
