3.7.2 Software Setup

Two CCS projects are available in C2000ware to test this CLB example. The path to the TDM projects are:

  • <C2000WARE_INSTALL>/driverlib/f28002x/examples/clb
  • <C2000WARE_INSTALL>/driverlib/f2838x/examples/c28x/mcbsp

The following software packages are required to build and run the software:

First, setup the F280025C by following these steps in CCS:

  1. In the CCS menu, click 'Project -> Import CCS Projects...'.
  2. Enter the path to the CLB example projects in the ‘Select search-directory’.
    1. Path: <C2000WARE_INSTALL>/driverlib/f28002x/examples/clb
  3. Click ‘Refresh’.
  4. Select the ‘clb_ex31_tdm_serial_port’ project.
    GUID-20221017-SS0I-QHK0-TDDJ-RQQPDFXMLSWK-low.png Figure 3-13 Importing CLB TDM Example Project
  5. Check ‘Copy projects into workspace’.
  6. Click 'Finish' to complete importing the project into the workspace.

    Optional: Click 'Project -> Build Configurations -> Set Active -> CPU1_FLASH' to build the code for flash execution. Set the TMDSCNCD280025C controlCARD to boot from flash (see the TMS320F28388D controlCARD Information Guide).

  7. In the CCS menu, click 'Project -> Build Project' to build the example project.
  8. Click 'Run -> Debug' to load the executable to the F280025C target device.
  9. Lastly, click 'Run -> Resume' in the CCS Debug perspective to run the code.

Second, setup the F28388D to generate the test TDM stream by following these steps in CCS:

  1. In the CCS menu, click 'Project -> Import CCS Projects...'.
  2. Enter the path to the McBSP example projects in the ‘Select search-directory’.
    1. Path: <C2000WARE_INSTALL>/driverlib/f2838x/examples/c28x/mcbsp
  3. Click ‘Refresh’.
  4. Select the ‘mcbsp_ex7_tdm8_test’ project.

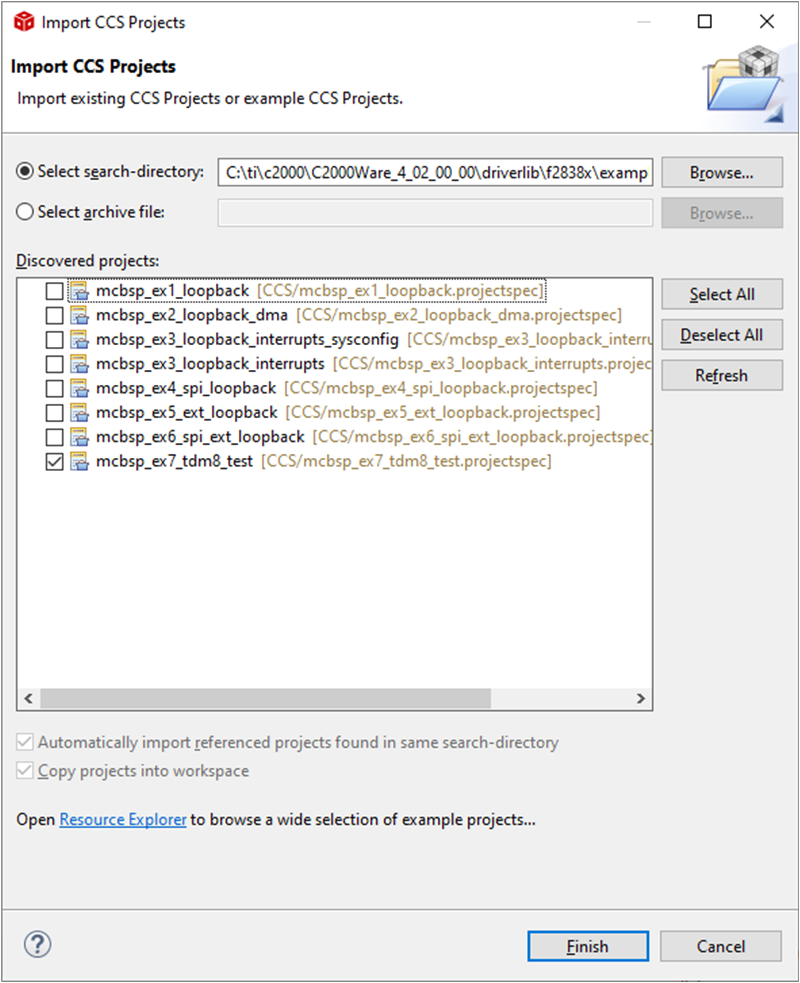

    GUID-20221017-SS0I-7HC2-NQMH-JLS1RV2DRMMR-low.png Figure 3-14 Importing McBSP TDM Example Project
  5. Check ‘Copy projects into workspace’.
  6. Click 'Finish' to complete importing the project into the workspace.
    1. Optional: Click 'Project -> Build Configurations -> Set Active -> CPU1_FLASH' to build the code for flash execution. Set the TMDSCNCD28388D controlCARD to boot from flash (see controlCARD user's guide).
  7. In the CCS menu, click 'Project -> Build Project' to build the example project.
  8. Click 'Run -> Debug' to load the executable to the F28388D target device.
    1. Optional: Add the following global variables to the Expressions window: txData, rxData, testWordDetected, and errCountGlobal.
  9. Lastly, click 'Run -> Resume' in the CCS Debug perspective to run the code.
