3.1 Power Requirements

The AM263x LaunchPad is powered from a 5V, 3A USB Type-C input. The following sections describe the power distribution network topology that supply the AM263x LaunchPad, supporting components and the reference voltages.

Power supply options that are compatible with the AM263x LaunchPad:

  • When using the USB Type-C input:
    • 5V, 3A power adapter with USB-C receptacle
    • 5V, 3A power adapter with captive USB-C cable
    • PC USB Type-C port that has Power Delivery classification
      • Thunderbolt
      • Battery behind USB logo

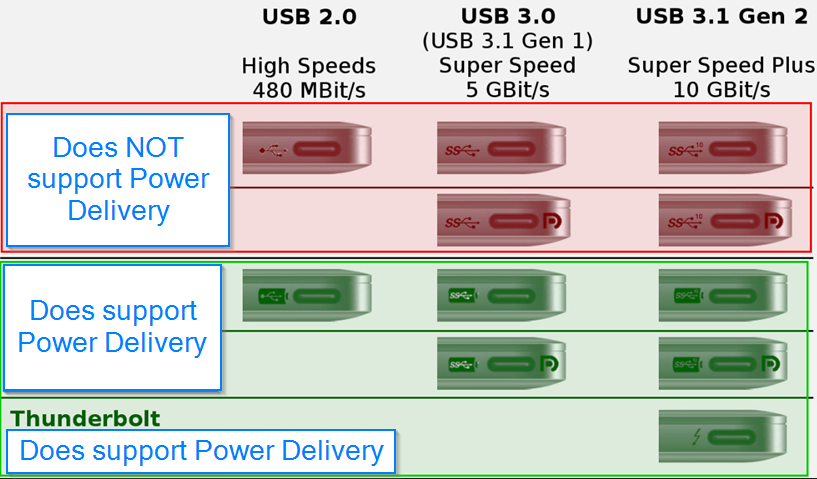

USB Type-C Power Delivery Classification Figure 3-1 USB Type-C Power Delivery Classification

Power supply options that are NOT compatible with the AM263x LaunchPad:

  • When using USB Type-C input:
    • Any USB adapter cables such as:
      • Type-A to Type-C
      • Micro-B to Type-C
      • DC barrel jack to Type-C
    • 5V, 1.5A power adapter with USB-C captive cable or receptacle
    • PC USB Type-C port not capable of 3A
