4.17 ADC and DAC

The AM263x LaunchPad maps 18 ADC inputs to the BoosterPack header. All of the ADC inputs that are used in the LaunchPad are ESD protected.

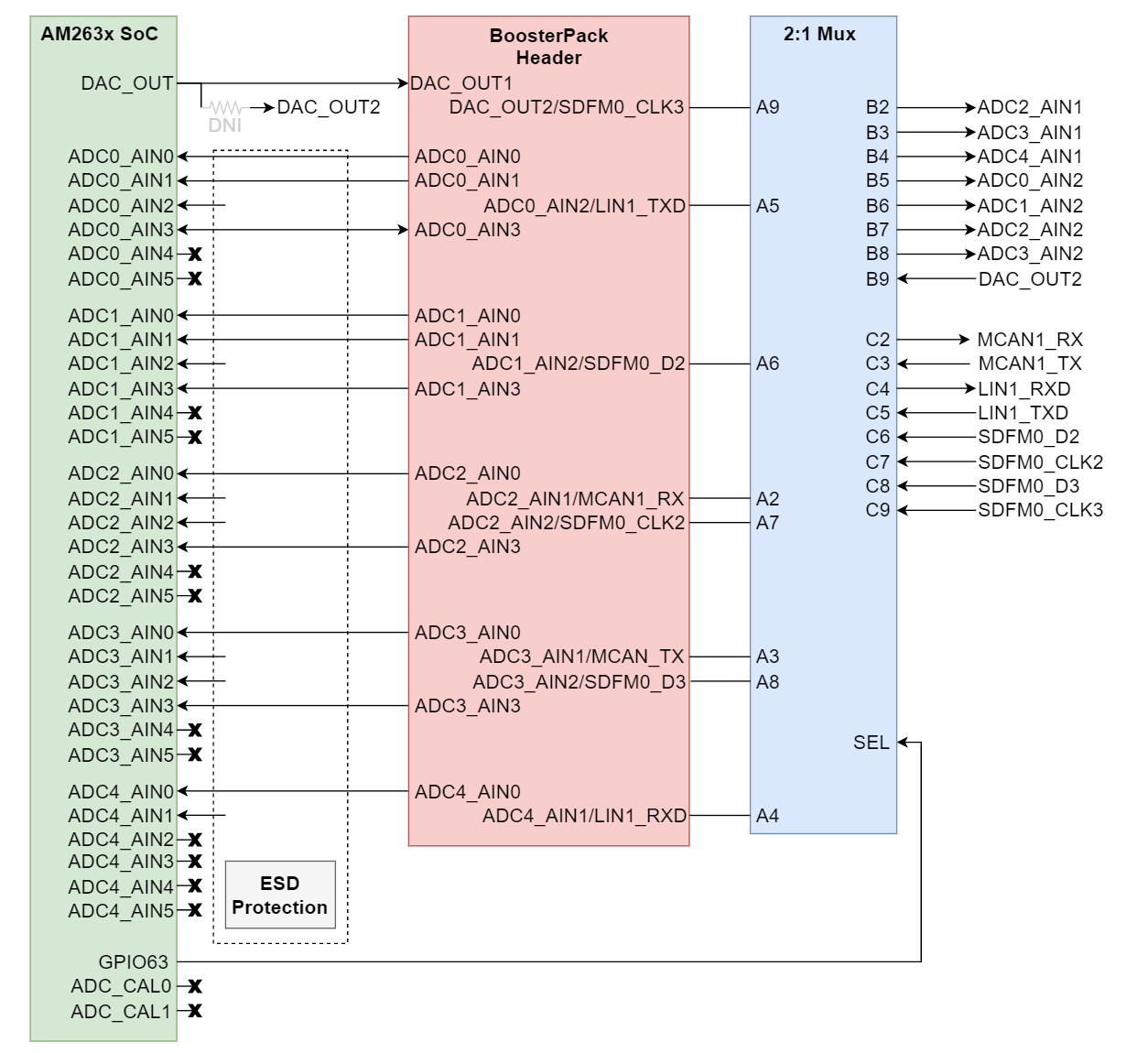

ADC/DAC Signal Pathing Figure 4-20 ADC/DAC Signal Pathing

Seven of the ADC inputs and one instance of the DAC_OUT signal is routed to a 2:1 mux (TS3DDR3812RUAR) to offer alternate BoosterPack functionality. The select line of the mux is driven by an AM263x SoC GPIO signal.

Table 4-14 ADC BoosterPack Mux
GPIO63 Condition Funciton of Mux
LOW ADC input/DAC_OUT Selected Port A ↔ Port B
HIGH Alternate BP functionality Selected Port A ↔ Port C

The ADC and DAC require a voltage reference. The AM263x LaunchPad has two switches that allow the user to switch between the DAC and ADC VREF source.

ADC and DAC VREF Switches Figure 4-21 ADC and DAC VREF Switches

The DAC VREF Switch (S1) is a single pole double throw switch that controls the input of the ADC VREF inputs of the AM263x SoC.

Table 4-15 DAC VREF Switch
DAC VREF Switch Position Reference Selection
Pin 1-2 AM263x on-die LDO
Pin 2-3 External DAC VREF Header

The ADC VREF Switch (S2) contains two single pole double throw switch that controls the input of the ADC VREF inputs of the AM263x SoC.

Table 4-16 ADC VREF Switch
ADC VREF Switch Position Reference Selection
Pin 1-2 OPEN- Allow for reference to be AM263x on-die LDO reference
Pin 2-3 External ADC VREF Header
Pin 4-5 OPEN- Allow for reference to be AM263x on-die LDO reference
Pin 5-6 External ADC VREF Header
