2.1 24MHz and 48MHz Crystal Oscillator

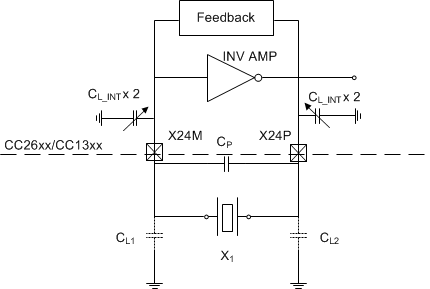

Figure 2-1 shows a simplified block diagram of the XOSC-HF. The oscillator circuit consists of an inverting amplifier, a feedback net, capacitors, and a crystal. The CC devices have an internal capacitor array that can be adjusted and eliminates the requirement for external loading capacitors. The cap-array can be adjusted by the Customer Configuration Flash (CCFG) within a range of 3.5pF to 10pF. For reliable operation, TI requires operating the crystal with CL from 5 to 9pF. The CC13xx/CC26xx Hardware Configuration and PCB Design Considerations application note shows how to set this value. If no external capacitors are used, then the value of CL is determined by the internal loading capacitors plus board parasitic capacitance CP.

Simplified Block Diagram of the CC Devices High-Frequency Oscillator With Quartz CrystalFigure 2-1 Simplified Block Diagram of the CC Devices High-Frequency Oscillator With Quartz Crystal

The 24MHz or 48MHz crystal is controlled with a control loop described in Section 2.2 and Section 2.3.
