5.2.2.4 Lab 4. Primary to Secondary Power Flow, Closed Current Loop Check, With Resistive Load Connected on Secondary

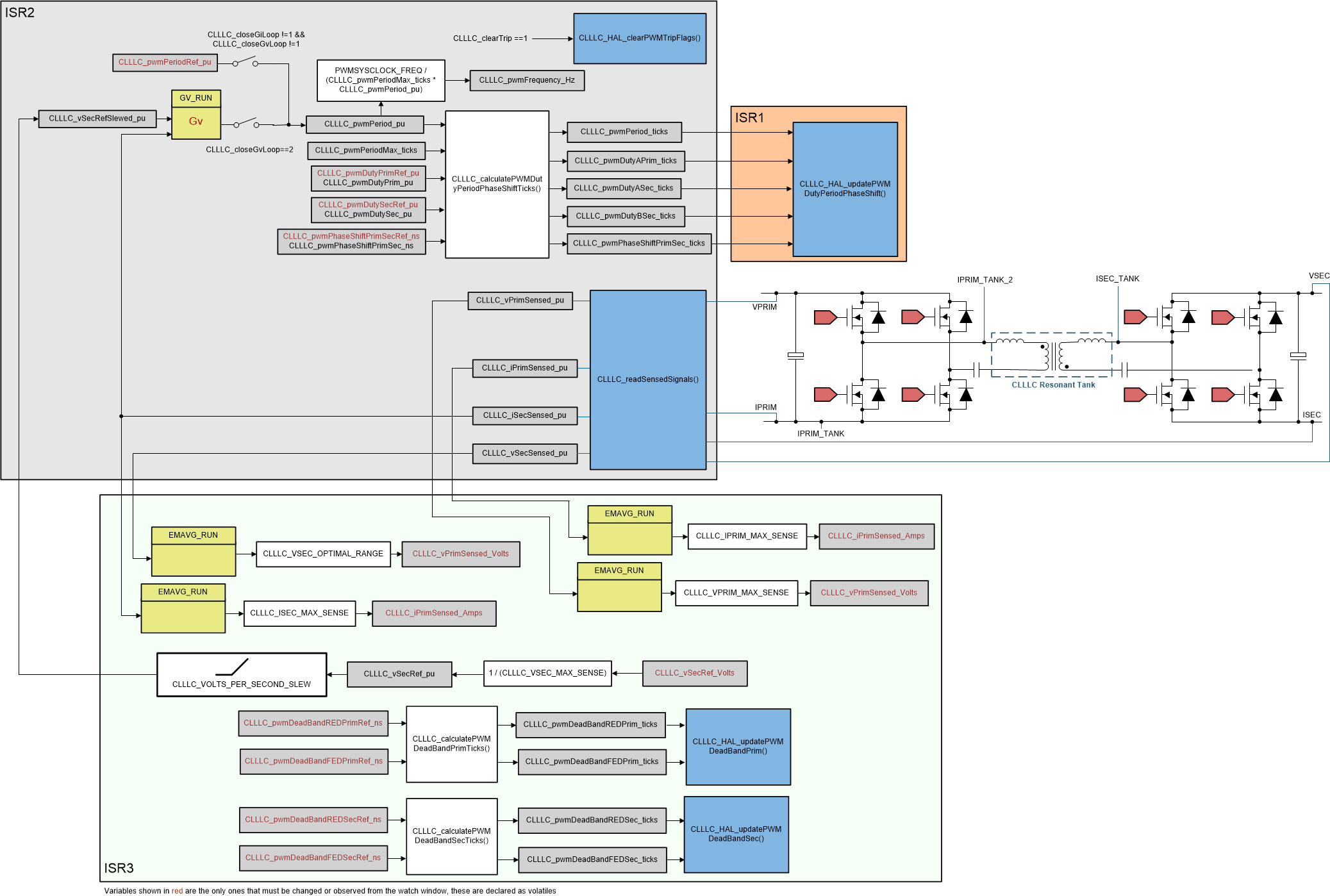

In this lab, the output current control loop is closed. Figure 5-23 shows the complete software diagram for this build. Hardware is assumed to be set up as shown in Figure 5-7.

GUID-E8862710-601B-40B9-B77F-EDC1C4551380-low.gifFigure 5-23 Lab 4 Control Software Diagram: Closed Current Loop
