8.2 Typical Application

The following design procedure can be used to configure the DRV8889-Q1 and DRV8889A-Q1 devices.

GUID-14851EFF-57F3-4D05-A8CF-092C6D550F66-low.gifFigure 8-1 Typical Application Schematic (HTSSOP package)

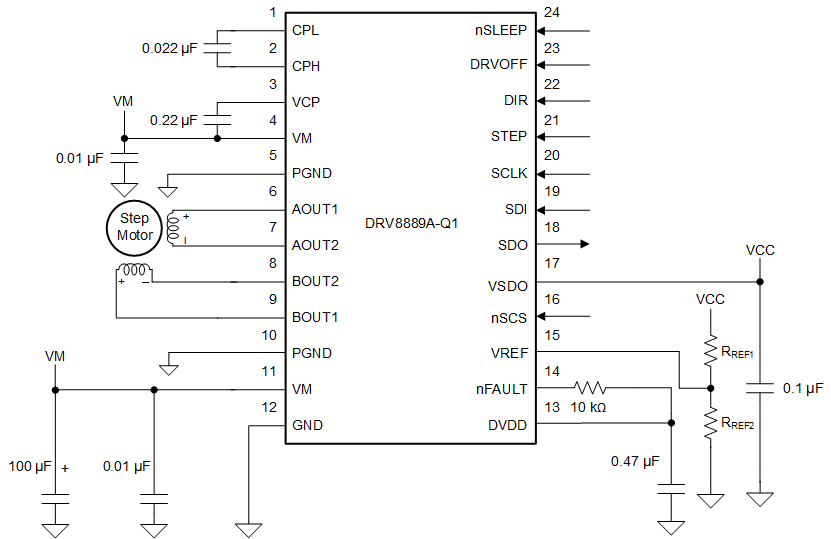

GUID-2DFA7D74-E126-4F7D-ACE6-46600A1B37E4-low.gifFigure 8-2 Typical Application Schematic (HTSSOP package)

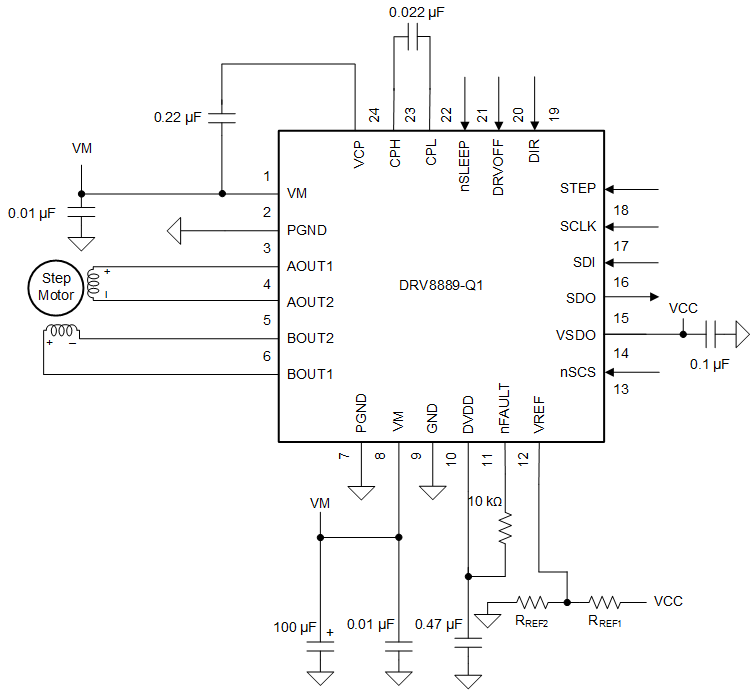

GUID-53492F8B-7008-47F5-8DB3-667BE7718351-low.gifFigure 8-3 Typical Application Schematic (VQFN package)
GUID-85B5FE49-86E0-4349-A222-A7FE351169E0-low.gifFigure 8-4 Typical Application Schematic (VQFN package)
