7.3.6 Decay Modes

During PWM current chopping, the H-bridge is enabled to drive through the motor winding until the PWM current chopping threshold is reached. This is shown in Figure 7-6, Item 1.

Once the chopping current threshold is reached, the H-bridge can operate in two different states, fast decay or slow decay. In fast decay mode, once the PWM chopping current level has been reached, the H-bridge reverses state to allow winding current to flow in a reverse direction. The opposite FETs are turned on; as the winding current approaches zero, the bridge is disabled to prevent any reverse current flow. Fast decay mode is shown in Figure 7-6, item 2. In slow decay mode, winding current is re-circulated by enabling both of the low-side FETs in the bridge. This is shown in Figure 7-6, Item 3.

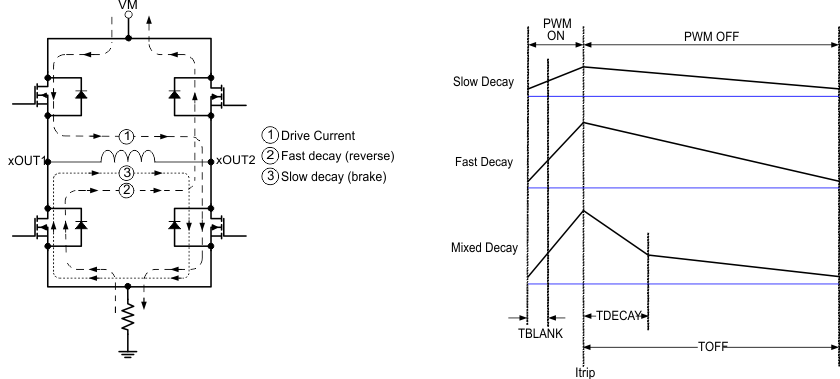

GUID-97C6FACE-82C9-403B-A098-184B448E4460-low.gifFigure 7-6 Decay Modes

The decay mode is selected by the DECAY register as shown in Table 7-7.

Table 7-7 Decay Mode Settings
DECAYINCREASING STEPSDECREASING STEPS
000bSlow decaySlow decay
001bSlow decayMixed decay: 30% fast
010bSlow decayMixed decay: 60% fast
011bSlow decayFast decay
100bMixed decay: 30% fastMixed decay: 30% fast
101bMixed decay: 60% fastMixed decay: 60% fast
110bSmart tune Dynamic DecaySmart tune Dynamic Decay
111b (default)Smart tune Ripple ControlSmart tune Ripple Control

Figure 7-7 defines increasing and decreasing current. For the slow-mixed decay mode, the decay mode is set as slow during increasing current steps and mixed decay during decreasing current steps. In full step and noncircular 1/2-step operation, the decay mode corresponding to decreasing steps is always used.

GUID-040A3048-396E-427C-83E8-DFAE070CC93D-low.gif Figure 7-7 Definition of Increasing and Decreasing Steps
