9.3.1 Output vs Supply Ramp Considerations

Figure 9-9, Figure 9-10, and Figure 9-11 show the typical output voltages for high and low-side configurations with the given ramp supply voltage. These fluctuations on the output during power-up may require a controller to incorporate a blanking time to disregard the artifacts.

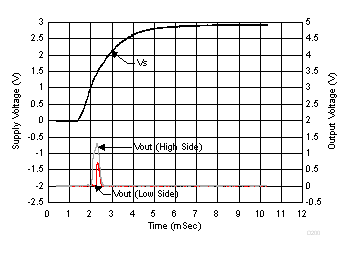

INA200-Q1 INA201-Q1 INA202-Q1 Analog Output vs Supply Ramp (INA200)Figure 9-9 Analog Output vs Supply Ramp (INA200)
INA200-Q1 INA201-Q1 INA202-Q1 Analog Output vs Supply Ramp (INA202)Figure 9-11 Analog Output vs Supply Ramp (INA202)

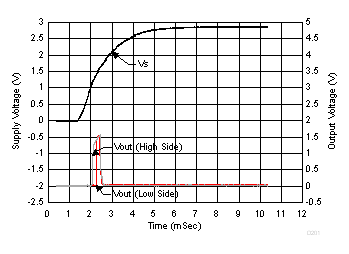

INA200-Q1 INA201-Q1 INA202-Q1 Analog Output vs Supply Ramp (INA201)Figure 9-10 Analog Output vs Supply Ramp (INA201)
