7.1 Hysteresis

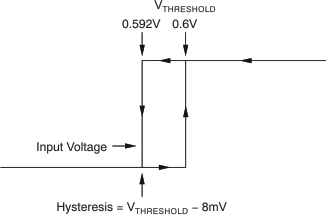

Figure 7-1 shows the typical comparator hysteresis.

INA200-Q1 INA201-Q1 INA202-Q1 Typical Comparator HysteresisFigure 7-1 Typical Comparator Hysteresis
