6.8 Typical Characteristics

At TA = 25°C, VS = 12 V, VIN+ = 12 V, and VSENSE = 100 mV (unless otherwise noted)

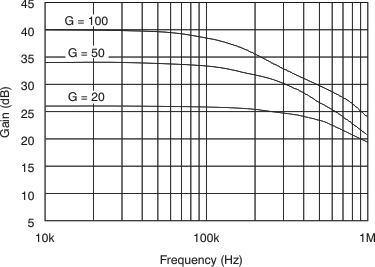

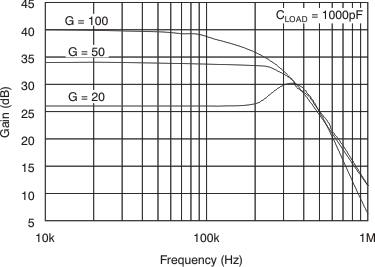

INA200-Q1 INA201-Q1 INA202-Q1 Gain vs Frequency
Figure 6-1 Gain vs Frequency

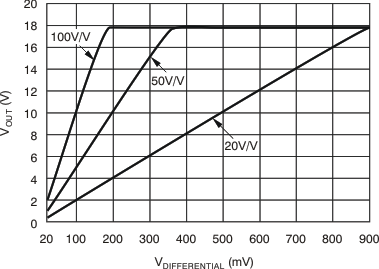

INA200-Q1 INA201-Q1 INA202-Q1 Gain Plot
Figure 6-3 Gain Plot
INA200-Q1 INA201-Q1 INA202-Q1 Output Error vs VSENSE
Figure 6-5 Output Error vs VSENSE

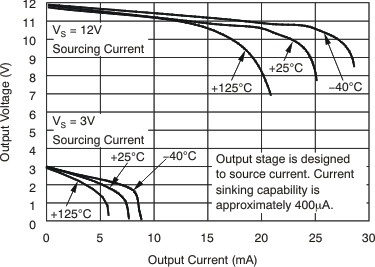

INA200-Q1 INA201-Q1 INA202-Q1 Positive Output Voltage Swing vs Output Current
Figure 6-7 Positive Output Voltage Swing vs Output Current
INA200-Q1 INA201-Q1 INA202-Q1 Quiescent Current vs Common-Mode Voltage
Figure 6-9 Quiescent Current vs Common-Mode Voltage

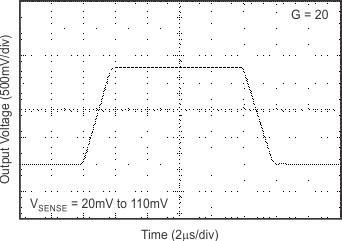

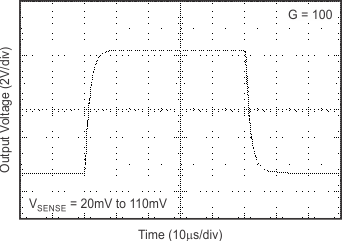

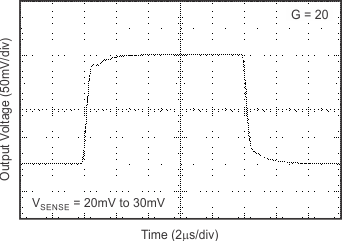

INA200-Q1 INA201-Q1 INA202-Q1 Step Response
Figure 6-11 Step Response
INA200-Q1 INA201-Q1 INA202-Q1 Step Response
Figure 6-13 Step Response

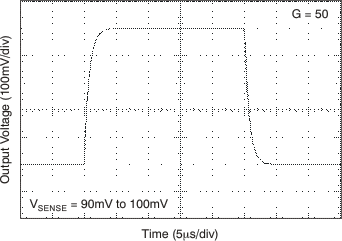

INA200-Q1 INA201-Q1 INA202-Q1 Step Response
Figure 6-15 Step Response

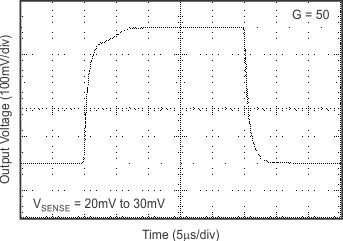

INA200-Q1 INA201-Q1 INA202-Q1 Step Response
Figure 6-17 Step Response

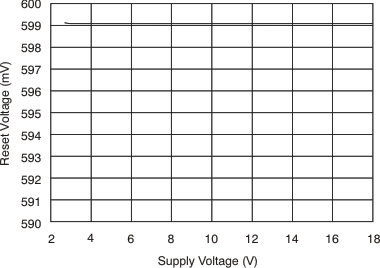

INA200-Q1 INA201-Q1 INA202-Q1 Comparator Trip Point vs Supply Voltage
Figure 6-19 Comparator Trip Point vs Supply Voltage
INA200-Q1 INA201-Q1 INA202-Q1 Comparator Propagation Delay vs Overdrive Voltage
Figure 6-21 Comparator Propagation Delay vs Overdrive Voltage

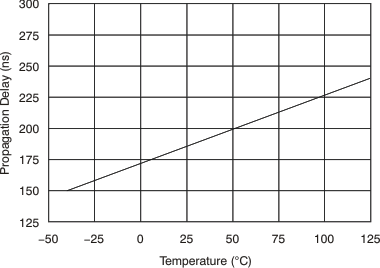

INA200-Q1 INA201-Q1 INA202-Q1 Comparator Propagation Delay vs Temperature
Figure 6-23 Comparator Propagation Delay vs Temperature
INA200-Q1 INA201-Q1 INA202-Q1 Gain vs Frequency
Figure 6-2 Gain vs Frequency
INA200-Q1 INA201-Q1 INA202-Q1 Common-Mode and Power-Supply Rejection vs Frequency
Figure 6-4 Common-Mode and Power-Supply Rejection vs Frequency

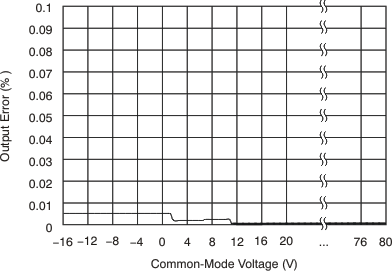

INA200-Q1 INA201-Q1 INA202-Q1 Output Error vs Common-Mode Voltage
Figure 6-6 Output Error vs Common-Mode Voltage

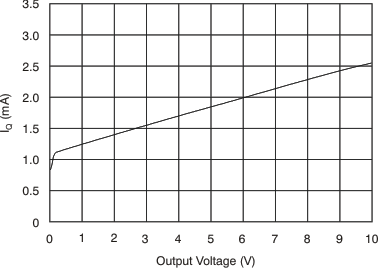

INA200-Q1 INA201-Q1 INA202-Q1 Quiescent Current vs Output Voltage
Figure 6-8 Quiescent Current vs Output Voltage

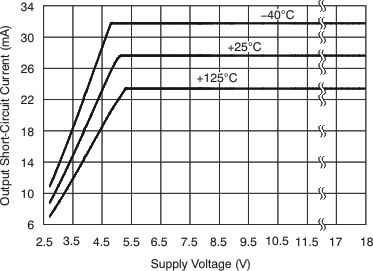

INA200-Q1 INA201-Q1 INA202-Q1 Output Short-Circuit Current vs Supply Voltage
Figure 6-10 Output Short-Circuit Current vs Supply Voltage
INA200-Q1 INA201-Q1 INA202-Q1 Step Response
Figure 6-12 Step Response
INA200-Q1 INA201-Q1 INA202-Q1 Step Response
Figure 6-14 Step Response
INA200-Q1 INA201-Q1 INA202-Q1 Step Response
Figure 6-16 Step Response
INA200-Q1 INA201-Q1 INA202-Q1 Comparator VOL vs ISINK
Figure 6-18 Comparator VOL vs ISINK

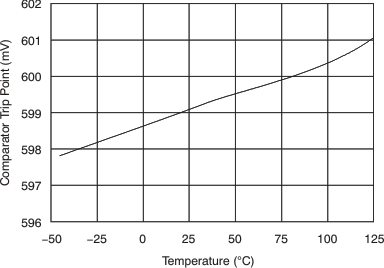

INA200-Q1 INA201-Q1 INA202-Q1 Comparator Trip Point vs Temperature
Figure 6-20 Comparator Trip Point vs Temperature

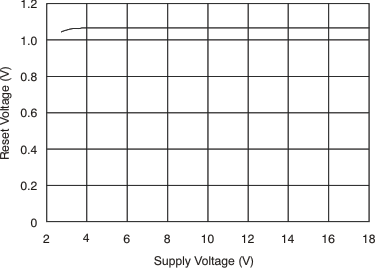

INA200-Q1 INA201-Q1 INA202-Q1 Comparator Reset Voltage vs Supply Voltage
Figure 6-22 Comparator Reset Voltage vs Supply Voltage
INA200-Q1 INA201-Q1 INA202-Q1 Comparator Propagation Delay
Figure 6-24 Comparator Propagation Delay
