Pin Diagrams

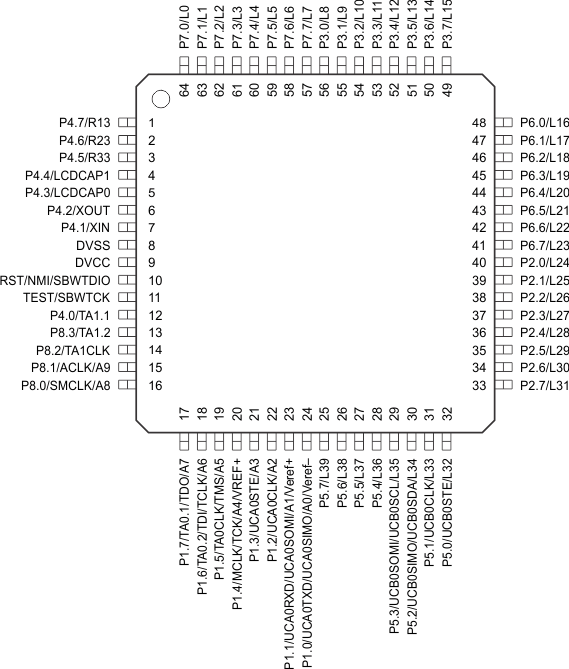

Figure 7-1 shows the pinout of the 64-pin PM package.

GUID-3963493F-02B8-42CB-9A63-729E8B3838CA-low.gifFigure 7-1 64-Pin PM (LQFP) (Top View)

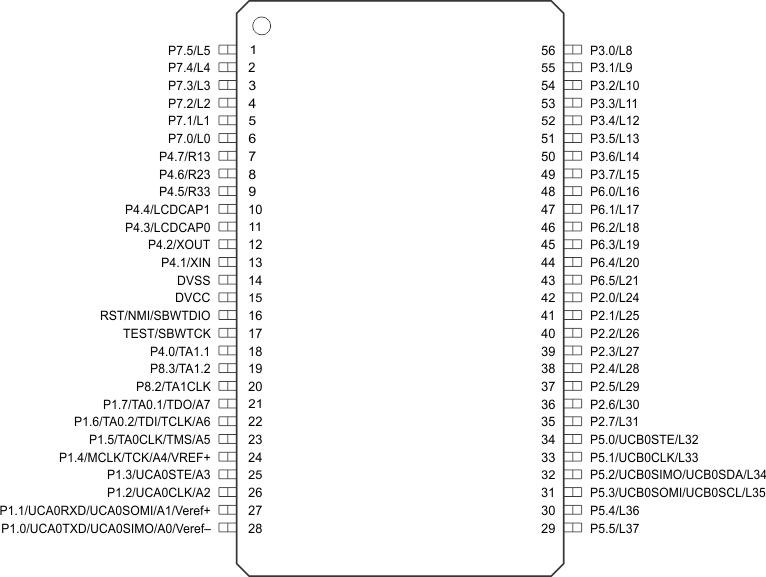

Figure 7-2 shows the pinout of the 56-pin DGG package.

GUID-63104777-EFE1-4E51-960A-014AD81323E3-low.gifFigure 7-2 56-Pin DGG (TSSOP) (Top View)

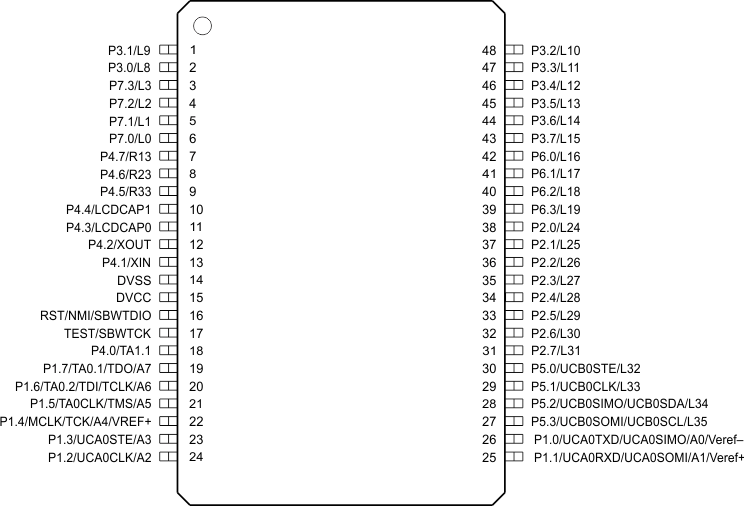

Figure 7-3 shows the pinout of the 48-pin DGG package.

GUID-8FCF54D7-F541-4D4E-B2EF-6C3D25A42098-low.gifFigure 7-3 48-Pin DGG (TSSOP) Designation
