9.9.2 Clock System (CS) and Clock Distribution

The clock system includes a 32-kHz crystal oscillator (XT1), an internal very low-power low-frequency oscillator (VLO), an integrated 32-kHz RC oscillator (REFO), an integrated internal digitally controlled oscillator (DCO) that may use frequency-locked loop (FLL) locking with internal or external 32-kHz reference clock, and on-chip asynchronous high-speed clock (MODCLK). The clock system is designed to target cost-effective designs with minimal external components. A fail-safe mechanism is designed for XT1. The clock system module offers the following clock signals.

  • Main Clock (MCLK): the system clock used by the CPU and all relevant peripherals accessed by the bus. All clock sources except MODCLK can be selected as the source with a predivider of 1, 2, 4, 8, 16, 32, 64, or 128.
  • Sub-Main Clock (SMCLK): the subsystem clock used by the peripheral modules. SMCLK derives from the MCLK with a predivider of 1, 2, 4, or 8. This means SMCLK is always equal to or less than MCLK.
  • Auxiliary Clock (ACLK): this clock is derived from the external XT1 clock or internal REFO clock up to 40 kHz.

All peripherals may have one or several clock sources depending on specific functionality. Table 9-6 shows the clock distribution used in this device.

Table 9-6 Clock Distribution
CLOCK SOURCE SELECT BITSMCLKSMCLKACLKMODCLKXT1CLK(1)VLOCLKEXTERNAL PIN
Frequency RangeDC to 16 MHzDC to 16 MHzDC to 40 kHz5 MHz ±10%DC to 40 kHz10 kHz ±50%
CPUN/ADefault
FRAMN/ADefault
RAMN/ADefault
CRCN/ADefault
I/ON/ADefault
TA0TASSEL10b01b00b (TA0CLK pin)
TA1TASSEL10b01b00b (TA1CLK pin)
eUSCI_A0UCSSELx10b or 11b01b00b (UCA0CLK pin)
eUSCI_B0UCSSELx10b or 11b01b00b (UCB0CLK pin)
WDTWDTSSEL00b01b10b
ADCADCSSEL10b or 11b01b00b
LCDLCDSSEL01b00b10b
RTCRTCSS01b10b11b
(1) To enable XT1 functionality, configure P4SEL0.1 (XIN) and P4SEL0.2 (XOUT) before configuring the Clock System registers.

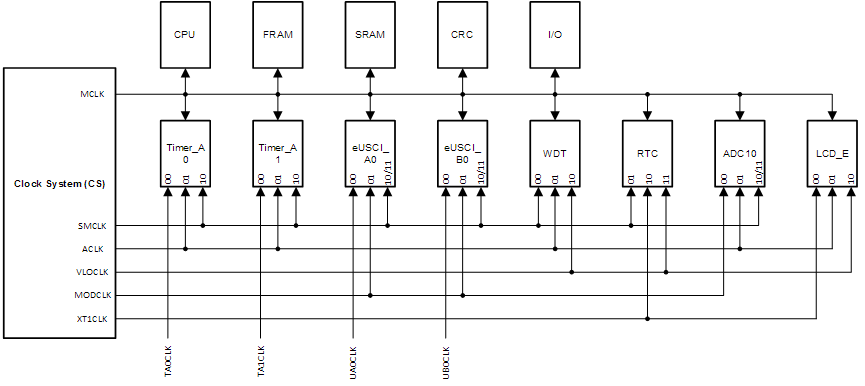

GUID-06D6E4EC-901B-4CF5-8603-CD9B9C4D4C0B-low.gifFigure 9-1 Clock Distribution Block Diagram
