8.12.6.6 eUSCI (I2C Mode) Switching Characteristics

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted) (see Figure 8-14)
PARAMETERTEST CONDITIONSVCCMINTYPMAXUNIT
feUSCIeUSCI input clock frequencyInternal: SMCLK, MODCLK
External: UCLK
Duty cycle = 50% ±10%		16MHz
fSCLSCL clock frequency2 V, 3 V0400kHz
tHD,STAHold time (repeated) STARTfSCL = 100 kHz2 V, 3 V4.0µs
fSCL > 100 kHz0.6
tSU,STASetup time for a repeated STARTfSCL = 100 kHz2 V, 3 V4.7µs
fSCL > 100 kHz0.6
tHD,DATData hold time2 V, 3 V0ns
tSU,DATData setup time2 V, 3 V250ns
tSU,STOSetup time for STOPfSCL = 100 kHz2 V, 3 V4.0µs
fSCL > 100 kHz0.6
tSPPulse duration of spikes suppressed by input filterUCGLITx = 02 V, 3 V50600ns
UCGLITx = 125300
UCGLITx = 212.5150
UCGLITx = 36.375
tTIMEOUTClock low time-outUCCLTOx = 12 V, 3 V27ms
UCCLTOx = 230
UCCLTOx = 333

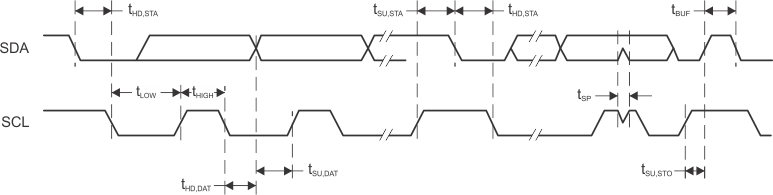

GUID-2E67879A-3EAD-448F-BA42-1AD349CCD4F8-low.gifFigure 8-14 I2C Mode Timing
