9.9.13.4 Port P4.0 Input/Output With Schmitt Trigger

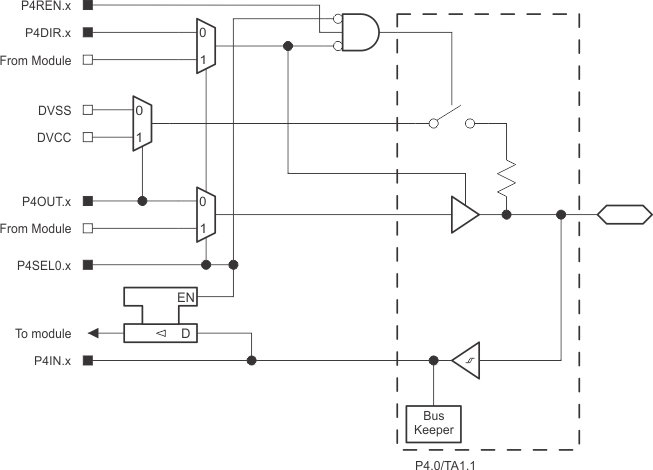

Figure 9-6 shows the port schematic. Table 9-17 summarizes the selection of the pin functions.

GUID-9E6E74BB-4C6D-432C-961A-FCA5B4979654-low.gifFigure 9-6 Port P4.0 Input/Output With Schmitt Trigger
Table 9-17 Port P4.0 Pin Functions
PIN NAME (P4.x)xFUNCTIONCONTROL BITS AND SIGNALS
P4DIR.xP4SEL0.x
P4.0/TA1.10P4.0 (I/O)I: 0; O: 10
TA1.CCI1A01
TA1.11
