8.9 Typical Characteristics, Low-Power Mode Supply Currents

The graphs in this section show only board-level test result on a small number of samples. A MS1V-T1K crystal from Micro-Crystal was populated for 32-kHz clock generation. LCD is configured in 4xCOM mode without LCD panel populated.

LPM3DVCC = 3 V
LCD onSVS disabled
Figure 8-1 LPM3 Supply Current vs Temperature
LPM3.5DVCC = 3 V
12.5-pF crystal on XT1SVS enabled
Figure 8-3 LPM3.5 Supply Current vs Temperature
LPM3DVCC = 3 V
RTC counter onSVS disabled
Figure 8-2 LPM3 Supply Current vs Temperature

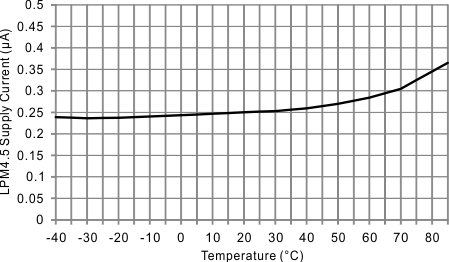

LPM4.5DVCC = 3 V
SVS enabled
Figure 8-4 LPM4.5 Supply Current vs Temperature
