SNIS241 September   2025 TMP461-EP

PRODUCTION DATA

  1.   1
  2. 1 Features
  3. 2 Applications
  4. 3 Description
  5. 4 Device Information
  6. 5 Pin Configuration and Functions
  7. 6 Specifications
    1. 6.1 Absolute Maximum Ratings
    2. 6.2 ESD Ratings
    3. 6.3 Recommended Operating Conditions
    4. 6.4 Thermal Information
    5. 6.5 Electrical Characteristics
    6. 6.6 Two-Wire Timing Requirements
    7. 6.7 Timing Diagrams
    8. 6.8 Typical Characteristics
  8. 7 Detailed Description
    1. 7.1 Overview
    2. 7.2 Functional Block Diagram
    3. 7.3 Feature Description
      1. 7.3.1 Temperature Measurement Data
        1. 7.3.1.1 Decoding Temperature Data
      2. 7.3.2 Series Resistance Cancellation
      3. 7.3.3 Differential Input Capacitance
      4. 7.3.4 Filtering
      5. 7.3.5 Sensor Fault
      6. 7.3.6 ALERT and THERM Functions
    4. 7.4 Device Functional Modes
      1. 7.4.1 Shutdown Mode (SD)
    5. 7.5 Programming
      1. 7.5.1 Serial Interface
        1. 7.5.1.1 Bus Overview
        2. 7.5.1.2 Bus Definitions
        3. 7.5.1.3 Serial Bus Address
        4. 7.5.1.4 Read and Write Operations
        5. 7.5.1.5 Timeout Function
        6. 7.5.1.6 High-Speed Mode
      2. 7.5.2 General-Call Reset
  9. 8 Register Map
    1. 8.1 Register Information
      1. 8.1.1  Pointer Register
      2. 8.1.2  Local and Remote Temperature Registers
      3. 8.1.3  Status Register
      4. 8.1.4  Configuration Register
      5. 8.1.5  Conversion Rate Register
      6. 8.1.6  One-Shot Start Register
      7. 8.1.7  Channel Enable Register
      8. 8.1.8  Consecutive ALERT Register
      9. 8.1.9  η-Factor Correction Register
      10. 8.1.10 Remote Temperature Offset Register
      11. 8.1.11 Manufacturer Identification Register
  10. 9 Application and Implementation
    1. 9.1 Application Information
    2. 9.2 Typical Application
      1. 9.2.1 Design Requirements
      2. 9.2.2 Detailed Design Procedure
      3. 9.2.3 Application Curve
    3. 9.3 Power Supply Recommendations
    4. 9.4 Layout
      1. 9.4.1 Layout Guidelines
      2. 9.4.2 Layout Example
  11. 10Device and Documentation Support
    1. 10.1 Receiving Notification of Documentation Updates
    2. 10.2 Related Documentation
    3. 10.3 Support Resources
    4. 10.4 Trademarks
    5. 10.5 Electrostatic Discharge Caution
    6. 10.6 Glossary
  12. 11Revision History
  13. 12Mechanical, Packaging, and Orderable Information

Package Options

Mechanical Data (Package|Pins)
Thermal pad, mechanical data (Package|Pins)
Orderable Information

6.8 Typical Characteristics

At TA = 25°C and V+ = 3.6V, unless otherwise noted

TMP461-EP Local Temperature Error vs Ambient TemperatureFigure 6-2 Local Temperature Error vs Ambient Temperature
TMP461-EP Remote Temperature Error vs Series Resistance
No physical capacitance during measurement
Figure 6-4 Remote Temperature Error vs Series Resistance
TMP461-EP Remote Temperature Error vs Differential Capacitance
No physical series resistance on D+, D– pins during measurement
Figure 6-6 Remote Temperature Error vs Differential Capacitance
TMP461-EP Shutdown Current vs SCL Clock Frequency
16 samples per second (default mode)
Figure 6-8 Shutdown Current vs SCL Clock Frequency
TMP461-EP Shutdown Current vs Supply Voltage (Serial Bus Inactive)
Figure 6-10 Shutdown Current vs Supply Voltage (Serial Bus Inactive)
TMP461-EP Remote Temperature Error vs Ambient TemperatureFigure 6-3 Remote Temperature Error vs Ambient Temperature
TMP461-EP Remote Temperature Error vs Leakage Resistance
Figure 6-5 Remote Temperature Error vs Leakage Resistance

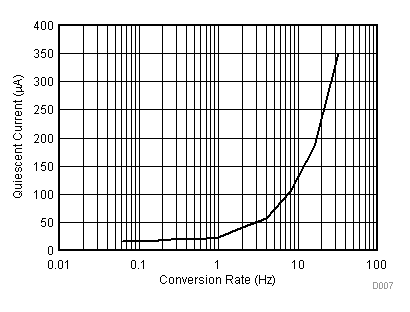

TMP461-EP Average Current vs Conversion RateFigure 6-7 Average Current vs Conversion Rate
TMP461-EP Average Current vs Supply Voltage (at Default Conversion Rate of 16Hz)
Figure 6-9 Average Current vs Supply Voltage (at Default Conversion Rate of 16Hz)
